Filter Cartridge 325*1200 Classic Standard Filter 1006090 Matching 3-Hole-395-K / 16 M² Recovery Area / Guarantee 3000 Working Life Filter
Basic Properties
Place of Origin:
China
Brand Name:
ASTAR
Certification:
CE
Model Number:
1020449
Trading Properties
Minimum Order Quantity:
1
Price:
Negotiable
Payment Terms:
T/T, Western Union, L/C, D/A, D/P, T/T, MoneyGram, PayPal
Supply Ability:
100 pieces per month
Product Summary
Filter Cartridge 325×1200 Classic Standard Filter Part Number: 1006090 | 3-Hole-395-K Flange | 16 m² Recovery Area | 3,000 Hour Guaranteed Working Life Product Overview The Filter Cartridge 325×1200 is a premium replacement filter designed for powder coating spray booth recovery systems. This ...
Product Details
Highlight:
Filter Cartridge 325x1200 standard size
,Powder coating filter 16 m² recovery
,3-hole-395-K compatible filter cartridge
Name:
Filter Cartridge
OEM Number:
1006090
Outer Diameter:
325 Mm
Length:
1200 Mm
Design Type:
Three-Lug Quick-Connect Design
Filtration Area:
16 M²
Guaranteed Life:
3,000 Working Hours
Application Industries:
Aluminum Profile Powder Coating Lines
Product Description

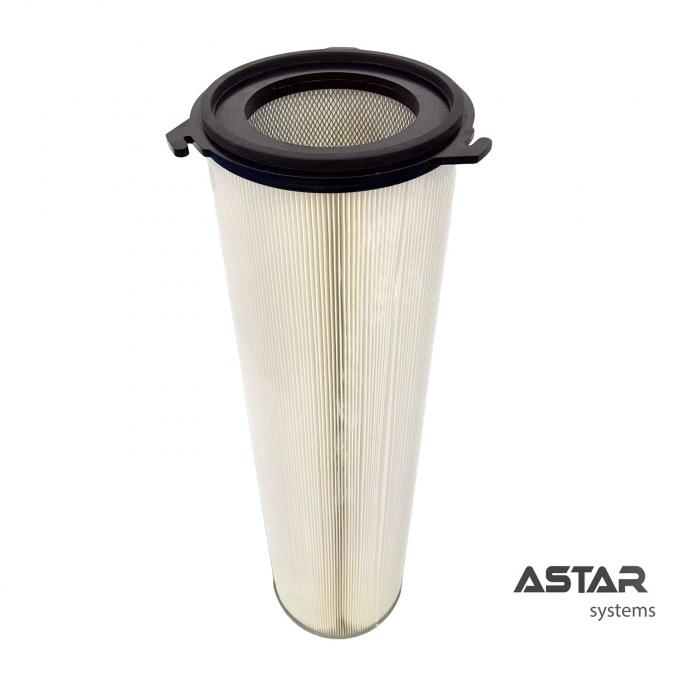

Filter Cartridge 325×1200 Classic Standard Filter
Part Number: 1006090 | 3-Hole-395-K Flange | 16 m² Recovery Area | 3,000 Hour Guaranteed Working Life
Product Overview
The Filter Cartridge 325×1200 is a premium replacement filter designed for powder coating spray booth recovery systems. This standard 1006090 model features a conical design with 16 m² filtration area and guaranteed 3,000 working hours lifespan under regular pulse-jet cleaning cycles.
Technical Specifications
| Product Name | Filter Cartridge |
| Part Number | 1006090 |
| Flange Type | 3-Hole-395-K |
| Core Dimensions | Outer Diameter: 325 mm | Length/Height: 1200 mm (Conical Design) |
| Filtration Area | 16 m² (High-density deep pleated area) |
| Guaranteed Life | 3,000 Working Hours (Under regular pulse-jet cleaning cycles) |
Industrial Applications
Aluminum profile spraying
Metal sheet coating
Hardware surface treatment
Automotive parts coating
Industrial metal finishing
Powder coating processing
Product Images
Key Advantages
Standard 1006090 Replacement Model, Perfect Booth Matching
- Fixed part No. 1006090, heavy-duty 325×1200mm conical filter cartridge engineered for standard powder coating spray booth recovery systems
- Original structural layout and accurate dimension calibration ensuring 100% seamless airtight matching without modifications
- Standardized 3-Hole-395-K triangular twist-lock flange for rapid, secure drop-in installation
- Standard industrial batch coding, ideal for global distributors, powder coating workshops, and OEM suppliers
16 m² Extended Recovery Area, Maximum Transfer Efficiency
- Premium deep-pleated cone geometry expanding effective filtration surface to 16 square meters
- Maximizes powder air-to-cloth ratio, lowering operational face velocity while achieving optimal recovery efficiency
- Perfect for continuous heavy-duty automated overspray recovery, maintaining balanced booth ventilation
- Highly compatible with high-capacity powder extraction systems, allowing high powder loading without pressure drops
Premium Industrial Filtration Media, Stable 3,000 Hours Lifespan
- Top-grade spunbond polyester filtration media with exceptional mechanical strength
- Superior chemical, moisture, and wear resistance under continuous high-velocity powder dust abrasion
- Optimized pleat separation design prevents uniform pleat collapse, facilitating smooth cake release
- Excellent structural durability for long-term rugged use in multi-shift coating production facilities
High-Efficiency Pulse-Jet Cleaning, Anti-Clogging Geometry
- Conical tapered design enhances back-pulse compressed air cleaning efficiency
- Withstands automated reverse pulse-jet cleaning air pressures from 5 to 6 bar without damage
- Ultra-smooth media finish reduces powder impact fusion and crusting buildup
- Enables rapid air-purge cleaning, shortening maintenance windows and supporting efficient color switching
Heavy-Duty Structural Build, Robust Industrial Quality
- Rigid inner galvanized steel core and specialized outer support grids resist high negative pressure
- Premium integrated top rubber gasket ensures continuous absolute airtight seal
- Cost-effective high-durability consumable minimizing filter replacement frequencies
- Reliable large-batch manufacturing quality with stable stock availability for global shipping
Packaging
Secure paper box packaging for safe transportation and storage.
Manufacturer Information
Astar Machinery Co., Ltd.
Specializes in electrostatic spraying equipment including electrostatic dust elimination systems, flocking machines, powder and liquid spray machines, high voltage modules, control cabinets, and complete coating systems.
One-stop Service Provider for Electrostatic Powder Coating with over 20 years of experience, providing full-chain supply chain services including production line design, processing, installation, commissioning, maintenance, and equipment spare parts supply.
Company Departments
Technical Department
7-member core technical team with over 20 years of industry experience, providing 3D flowcharts and animation simulations for precision control.
Foreign Trade Department
5-member professional team serving Europe, America, Middle East, Russia, Southeast Asia and Africa markets.
Production Department
5-member lean team focused on coating equipment installation, spare parts production and performance testing.
After-sales Service Department
2-member dedicated team providing full-process tracking and efficient problem resolution.
