Qty-32 Cylindrical Mandrel Bend Tester / Paint Film Cylindrical Bending Test Instrument

Qty-32 Cylindrical Mandrel Bend Tester / Paint Film Cylindrical Bending Test Instrument
Qty-32 Cylindrical Mandrel Bend Tester / Paint Film Cylindrical Bending Test Instrument Qty-32 Cylindrical Mandrel Bend Tester / Paint Film Cylindrical Bending Test Instrument Qty-32 Cylindrical Mandrel Bend Tester / Paint Film Cylindrical Bending Test Instrument Qty-32 Cylindrical Mandrel Bend Tester / Paint Film Cylindrical Bending Test Instrument Qty-32 Cylindrical Mandrel Bend Tester / Paint Film Cylindrical Bending Test Instrument Qty-32 Cylindrical Mandrel Bend Tester / Paint Film Cylindrical Bending Test Instrument

Large Image :  Qty-32 Cylindrical Mandrel Bend Tester / Paint Film Cylindrical Bending Test Instrument

Product Details:
Place of Origin: China
Brand Name: Astar
Certification: CE , ISO9001
Model Number: QTY-32
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Plastic bag
Delivery Time: 5 - 8 work days
Payment Terms: T/T, Western Union, L/C, D/A, D/P, T/T, MoneyGram, PayPal
Supply Ability: 100 pieces per month
Contact Now

Qty-32 Cylindrical Mandrel Bend Tester / Paint Film Cylindrical Bending Test Instrument

Description
Name: Mandrel Bend Tester Model: Qty-32
Small Mandrel Diameter: 2,4,6,8,10,12,16,20 Mm (8 PCS) Large Sleeve Diameter: φ20,25,32 Mm (3 PCS)
Test Standard: GB/T 6742, ISO 1519 Material Of Mandrels Polished: Stainless Steel
Main Body Material: Cast Iron Sprayed Blue Coating Operation Mode: Manual Hand Crank
Highlight:

Cylindrical Mandrel Bend Tester

,

Paint Film Bending Test Instrument

,

Powder Coating Bend Tester

QTY-32 Cylindrical Mandrel Bend Tester
Professional paint film cylindrical bending test instrument for evaluating coating flexibility on metal substrates.
Product Overview
The QTY-32 Paint Film Cylindrical Mandrel Bend Tester is designed for testing the flexibility and bending resistance of powder coatings and liquid paints on various metal substrates. This manual testing instrument provides reliable performance for quality control in industrial coating applications.
Technical Specifications
Parameter Specification
Model QTY-32
Small Mandrel Diameter 2, 4, 6, 8, 10, 12, 16, 20 mm (8 pieces)
Large Sleeve Diameter 20, 25, 32 mm (3 pieces)
Test Standard GB/T 6742, ISO 1519
Mandrel Material Polished Stainless Steel
Main Body Material Cast Iron with Blue Coating
Operation Mode Manual Hand Crank
Package Shockproof Aluminum Carry Case
Key Features & Advantages
  • Complete Standard Mandrel Set: Includes 8 small mandrels (Φ2-20mm) and 3 large sleeves (Φ20-32mm) for comprehensive testing range
  • High-Precision Construction: All mandrels made from solid stainless steel with smooth polished surfaces to prevent test panel scratches
  • Sturdy All-Metal Design: Integral cast blue metal frame ensures anti-deformation and long service life
  • Easy Manual Operation: Knurled hand crank provides stable, uniform bending force with secure clamping fixture
  • Standard Compliance: Fully complies with GB/T 6742 and ISO 1519 coating flexibility test standards
  • Portable Storage: Equipped with shockproof aluminum alloy carrying case for convenient transportation and storage
  • Low Maintenance: Simple mechanical structure with affordable, easily replaceable wear parts
Applications
Ideal for powder coating factories, metal surface finishing workshops, paint production plants, hardware processing facilities, third-party material testing laboratories, automotive parts coating workshops, and aluminum profile spraying plants.
Product Images

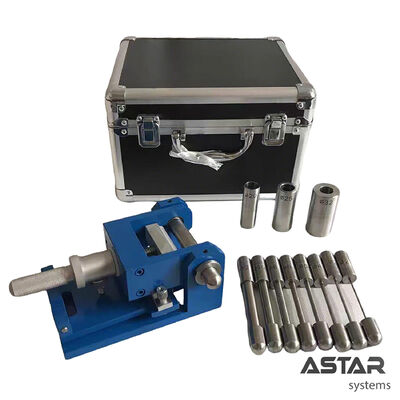

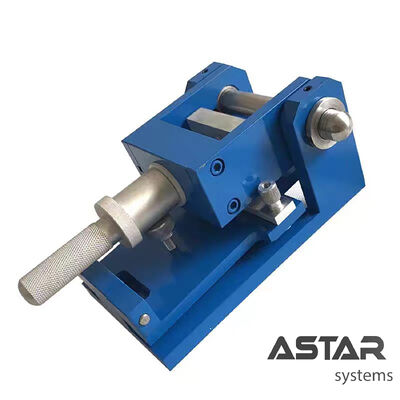

QTY-32 Cylindrical Mandrel Bend Tester front view

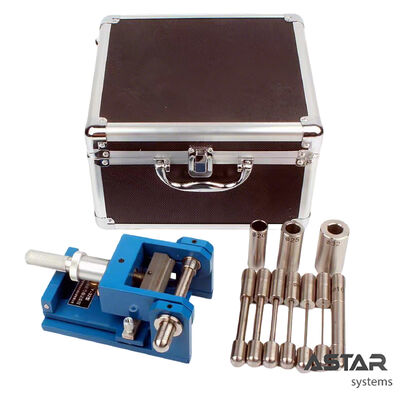

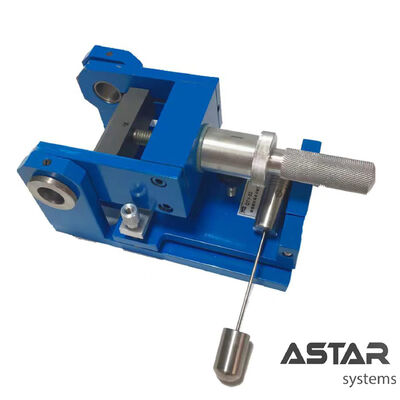

QTY-32 Cylindrical Mandrel Bend Tester side view

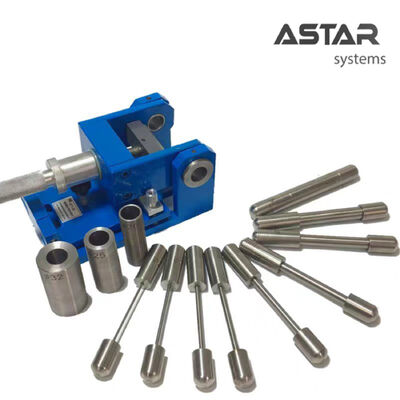

QTY-32 Cylindrical Mandrel Bend Tester with mandrels
Packaging
Secure paper box packaging ensures safe transportation and storage of the complete testing set.

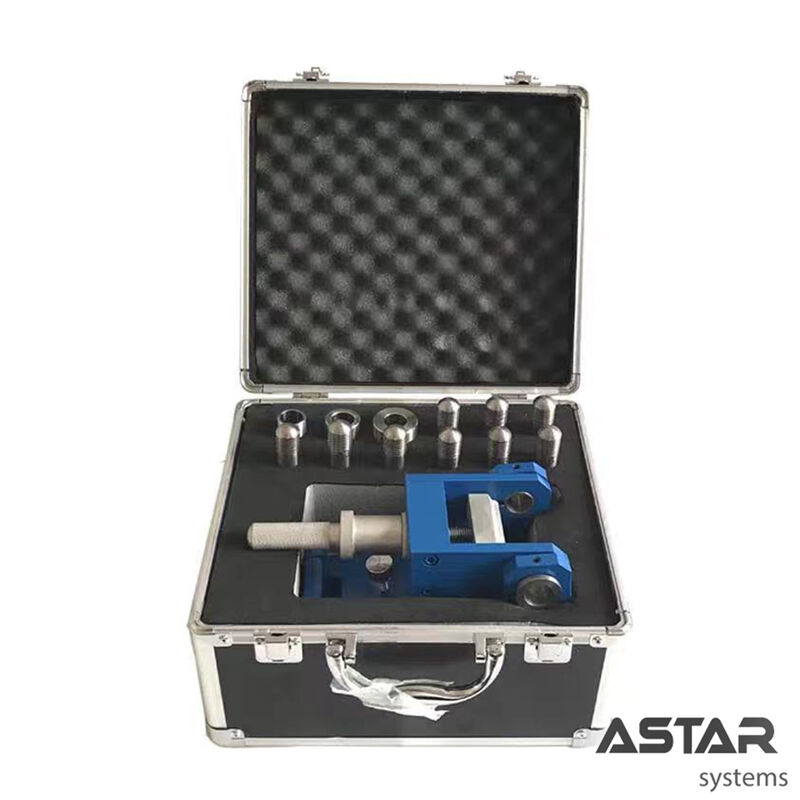

Adhesion tester packaging - secure paper box
Adhesion tester packaging - internal arrangement
Adhesion tester packaging - complete set
Manufacturer Information
Astar Machinery Co., Ltd. specializes in electrostatic spraying equipment including electrostatic dust elimination systems, flocking machines, powder and liquid spray machines, high voltage modules, control cabinets, and complete coating systems.
One-stop Service Provider
Cangzhou Astar Machinery Co., Ltd. has over 20 years of experience in the electrostatic powder coating field, providing full-chain supply chain services including production line design, processing, installation, commissioning, maintenance, and equipment supply.
Astar Machinery Company facility and operations
Company Departments
  • Technical Department: 7-member core technical team with 20+ years industry experience, providing 3D flowcharts and animation simulations
  • Foreign Trade Department: 5-member professional team serving international markets worldwide
  • Production Department: 5-member lean team focused on coating equipment installation and spare parts production
  • After-sales Service Department: 2-member dedicated team providing full-process tracking and efficient problem resolution
