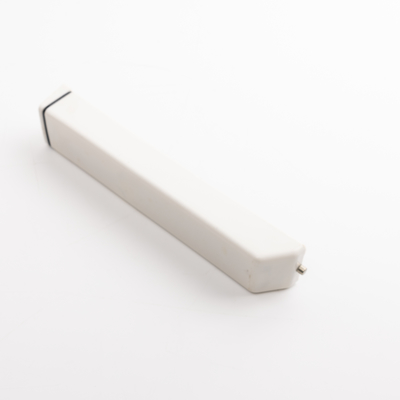

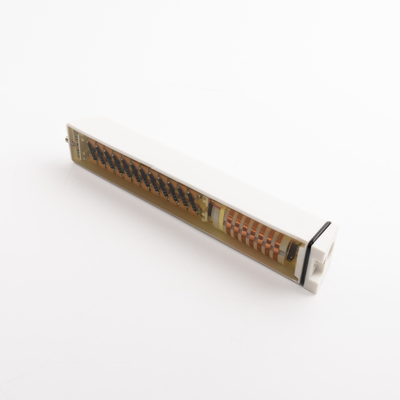

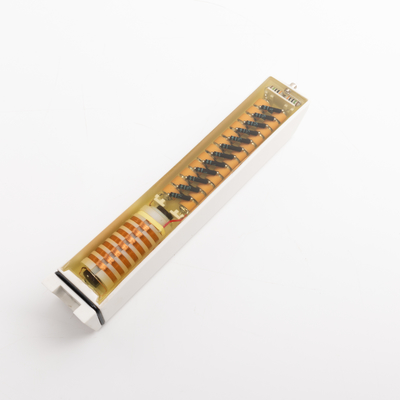

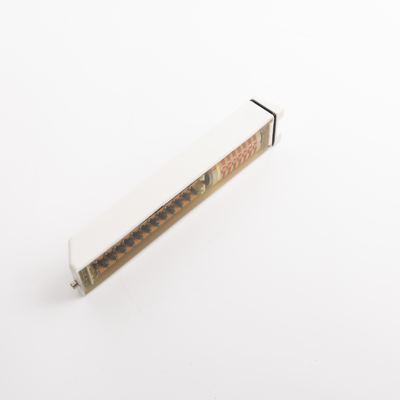

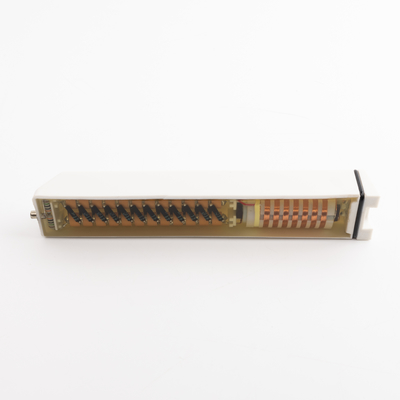

Pg 1 Spare Parts Automatic Powder Gun Cascade High Voltage
Basic Properties
Place of Origin:
China
Brand Name:
Astar
Certification:
CE , ISO9001
Model Number:
PG1
Trading Properties
Minimum Order Quantity:
1 Piece
Price:
Negotiable
Payment Terms:
T/T,Western Union,L/C,D/A,D/P,T/T,MoneyGram,PayPal
Supply Ability:
100 pieces per month
Product Summary
Pg 1 Spare Parts Automatic Powder Gun Cascade High Voltage Product Description The voltage generator module (control module) of the PGC or OptiTronic control module supplies high-frequency low-voltage of approximately 10 Veff. This voltage is fed through the gun cable and the gun connector to the ...
Product Details
Highlight:
automatic powder gun spare parts
,high voltage powder coating gun
,Gema cascade spare parts
Name:
High Voltage Cascade
Type:
Automatic
Application:
PG 1 Automatic Powder Gun
Rated Input Voltage:
10 V
Frequency:
17 KHz
Rated Output Voltage:
98 KV
Polarity:
Negative (Option - Positive)
Function:
High-voltage Generation
Maximum Output Current:
100 µA
Warranty:
1 Year
Product Description
Pg 1 Spare Parts Automatic Powder Gun Cascade High Voltage
Product Description
The voltage generator module (control module) of the PGC or OptiTronic control module supplies high-frequency low-voltage of approximately 10 Veff. This voltage is fed through the gun cable and the gun connector to the high-voltage cascade. In the cascade this low voltage is stepped up.
This primary high-voltage is subsequently rectified and multiplied in several stages in the cascade until the required high voltage is attained. The high-voltage is then fed from the spray nozzle to the electrode.
Application
PG 1 Automatic Powder Gun Cascade
Technical Specifications
| Name | High voltage cascade | Type | Automatic |
|---|---|---|---|
| Voltage | 10V | Polarity | Negative or positive |
| Application | PG1 Powder Gun | Rated input voltage | 10 V |
| Function | High-voltage generation | Rated output voltage | 98 kV |
| Maximum output current | 100 µA | Warranty | 1 year |
Product Images
Key Features
- Original quality components
- Stable performance under continuous operation
- Long working life with proper maintenance
- Comprehensive after-sale service
Packaging
Paper box package for secure transportation
Manufacturer Information
Astar Machinery Co., Ltd. is a comprehensive service provider in production, R&D and sales, specializing in electrostatic spraying equipment. Our product range includes electrostatic dust elimination equipment, electrostatic flocking machines, electrostatic powder spraying machines, electrostatic liquid spray machines, and related components including high voltage modules, circuit boards, powder barrels, and HV cables.
