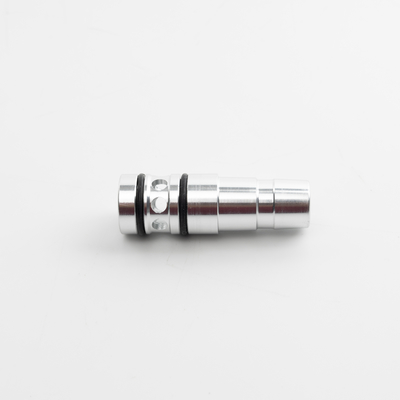

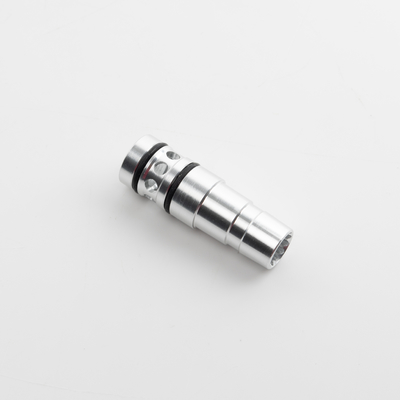

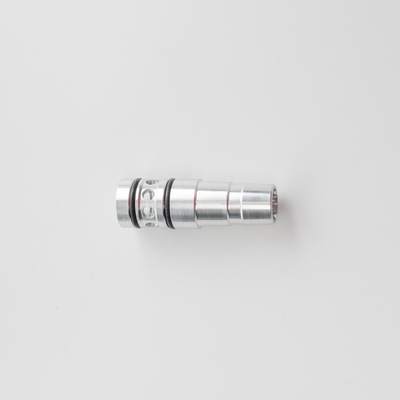

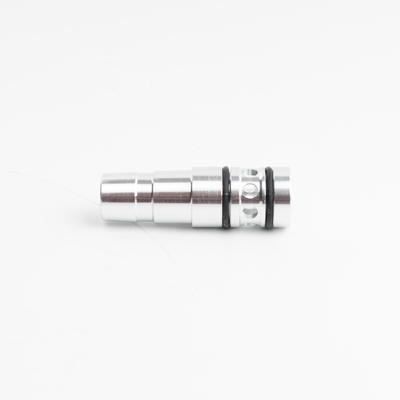

Generation II Pump Throat Holder 1095898 Customized OEM Powder Feed Pump Parts

GM03 - Spare parts list
GM03 manual powder gun - complete
A | Negative polarity, incl. gun cable -6 m, rinsing air hose -6 m, flat jet nozzle, brush and parts kit, without powder hose | 1008 070
GM03 manual powder gun -complete | 1008 073
positive polarity, incl. gun cable -6 m, rinsing air hose -6 m, flat jet nozzle, brush and parts kit, without powder hose
B | Manual powder gun shaft OptiSelect GM03 (incl. cascade) with:
Gun cable 2 m, negative polarity (-) | 1007 971
Gun cable 6 m, negative polarity (-) | 1007 972
Gun cable 12 m, negative polarity (-) | 1007 973
Gun cable 2 m, positive polarity (+) | 1007 974
Gun cable 6 m, positive polarity (+) | 1007 975
Gun cable 12 m, positive polarity (+) | 1007 968
1 | Gun body | 1007 220
2 | Cascade -complete, negative polarity | 1007 231
Cascade -complete, positive polarity | 1007 232
3 | Print holder -complete | 1007 216
4 | End plate with hook | 1007 217
5 | Grip -complete (incl. pos. 5.1 and 5.2) | 1007 961
5.1 | Grub screw -M3x8 mm | 1008 157
5.2 | Grip sealing | 1007 633
6 | Trigger -complete | 1007 213
7 | Trigger cover | 1007 212
8 | Countersunk-head screw -M4x6 mm | 1000 845
9 | SuperCorona connection | 1007 238
10 | Gun cable 2 m -complete | 1007 963
Gun cable 6 m -complete | 1007 964
Gun cable 12 m -complete | 1007 965
11 | Rinsing air connection | 1000 804
11.1 | Rinsing air hose | 100 854*
12 | Powder tube -complete | 1007 958 #
13 | Compression spring | 1001 488
14 | Clip ring | 1007 960
15 | Hose connection Ø 11-12 mm -complete (incl. pos 15.1) | 1001 340 #
Hose connection Ø 9-10 mm -complete (incl. pos 15.1) | 1002 030 #
15.1 | O-ring for pos. 15 | 1000 822 #
16 | Threaded sleeve (see corresponding spare parts list)
18 | Cascade space gasket | 1007 635#
Cleaning brush -Ø 12 mm | 389 765
Parts set (not shown), consisting of: | 1008302
Flat jet nozzle NF21 | 1007 935#
Adapter NF08 | 1003634#
Cable clamp | 303 070
Hose connector -complete, for hose interior Ø 9-10mm | 1002030
1 | Corona PC05 | 1008 165#
NF20 Profiles/flat parts (standard nozzle) | 1010 090
NF27 Profiles/flat parts | 1010 752
NF21 Complex profiles and depressions | 1007 935
NF22 Complex parts (deep recess), target spraying | 1008 145
NF24 Large surfaces | 1008 147
electrode | 1007 683
NF20 flat nozzle complete | 1010 160
NF27 flat nozzle complete | 1010 754
NF21 flat nozzle complete | 1007 932
NF22 flat nozzle complete | 1008 140
NF24 Large surfaces | 1008 142
Threaded sleeve | 1008 326
Threaded sleeve | 1007 229
NS04 Round jet nozzle | 1008 151
round electrode | 1008 152
Round jet nozzle complete | 1008 150
Threaded sleeve | 1007 229
Deflectors Ø 16mm | 331 341
Deflectors Ø 24 mm | 331 333
Deflectors Ø 32 mm | 331 325
Deflectors Ø 50 mm | 345 822
Gun extensions without nozzle L = 150 mm | 1008 616
Gun extensions without nozzle L = 150 mm | 1007 718
Gun extensions with Flat jet nozzle NF25 L = 150 mm | 1007 746
Gun extensions with Round jet nozzle NS09 L = 150 mm | 1007 748
Gun extensions without nozzle L = 300 mm | 1008 617
Gun extensions without nozzle L = 300 mm | 1007 719
Gun extensions with Flat jet nozzle NF25 L = 300 mm | 1007 747
Gun extensions with Round jet nozzle NS09 L = 300 mm | 1007 749
NF25 Profiles/flat parts | 1007 735
NF26 Complex profiles and depressions | 1007 742
NS09 Suitable for large surfaces | 1008 257
Electrode | 1007 684
Electrode | 1008 258
NF25 flat nozzle complete | 1007 743
NF26 flat nozzle complete | 1007 744
NS09 round nozzle complete | 1008 259
Threaded sleeve | 1007 740
POE Antistatic powder hoses Ø 11/16 mm | 105 139
POE Antistatic powder hoses Ø 12/18 mm | 1001 674
POE Antistatic powder hoses Ø 10/15 mm | 1001 673
Powder cup 500 ml | 1002 069
