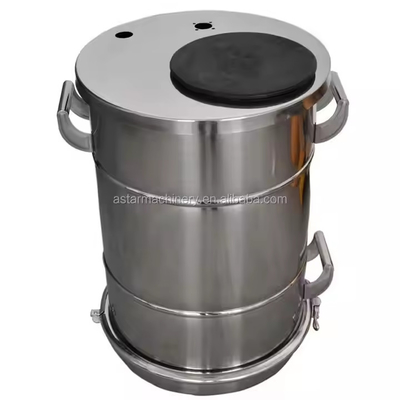

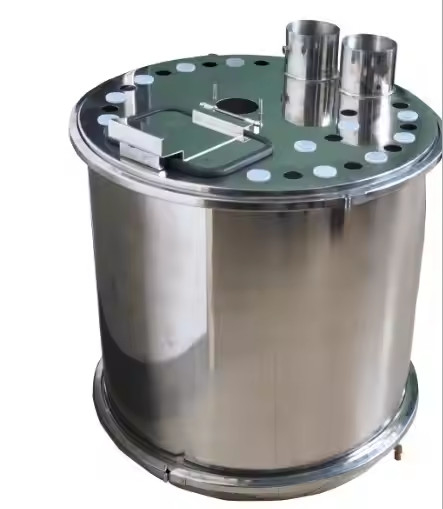

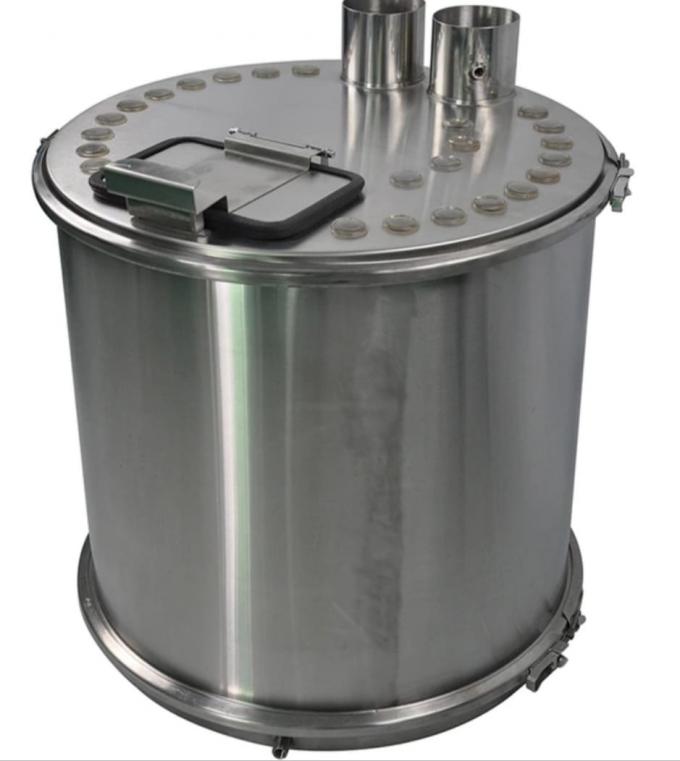

PH150D-24-D Stainless Steel Round Hopper Recycled Powder Coating OEM Customizable

NON OEM 1009705 Powder Tube 0.50-in. for Automatic Powder Spray Gun for Mount Gun Parts

•

•

•

• Product description

•



The powder hopper has a large capacity, which can meet the needs of large-scale electrostatic spraying production. It can be used
with up to 24 powder injectors at the same time. It has a large powder output and strong sealing, which ensures that the powder is
firmly sealed in the closed space and the working environment is clean. Match with high density fluidizing board to ensure uniform
fluidization of powder and avoid caking.



•

  •

  •

  • Basic principle





The fluidized bed is made of high polymer material air permeable plate by special sintering to ensure uniform fluidization and
continuous powder supply. The powder is stored in powder barrel, fluidized and evenly transported to the spray gun to ensure that
the powder supply for powder spraying is uniform and uninterrupted, save the powder and avoid moisture and caking, so as to
achieve the purpose of effective spraying



Component

Fluidization barrel, gas chamber, microorifice plate, Venturi nozzle, powder pipe and so on.



Process parameters



Powder supply pressure: 0.45MPa
Fluidization pressure: 0.01-0.03MPa.
Spray pressure: 0.02-0.06MPa
Injection pressure: 0.01-0.15MPa
Powder supply hopper capacity: 40kg
Powder supply: 4~8kg/h
