IG06 Injector Black Marking Supplementary Air Check Valve Unit 1004370 1005590 Powder Coating Accessories

IG06 Injector Black Marking Supplementary Air Check Valve Unit 1004370 1005590 Powder Coating Accessories
IG06 Injector Black Marking Supplementary Air Check Valve Unit 1004370 1005590 Powder Coating Accessories
IG06 Injector Black Marking Supplementary Air Check Valve Unit 1004370 1005590 Powder Coating Accessories IG06 Injector Black Marking Supplementary Air Check Valve Unit 1004370 1005590 Powder Coating Accessories IG06 Injector Black Marking Supplementary Air Check Valve Unit 1004370 1005590 Powder Coating Accessories IG06 Injector Black Marking Supplementary Air Check Valve Unit 1004370 1005590 Powder Coating Accessories IG06 Injector Black Marking Supplementary Air Check Valve Unit 1004370 1005590 Powder Coating Accessories

Large Image :  IG06 Injector Black Marking Supplementary Air Check Valve Unit 1004370 1005590 Powder Coating Accessories

Product Details:
Place of Origin: China
Brand Name: Astar
Certification: CE, ISO9001
Model Number: 1004370 1005590
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 3 - 8 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Contact Now

IG06 Injector Black Marking Supplementary Air Check Valve Unit 1004370 1005590 Powder Coating Accessories

Description
Name: Air Check Valve Unit Material: PTFE
Part Number: 1004370 1005590 Dimension(l*w*h): Standard
Operating Mode: Automatic, Manual Machinery Test Report: Provided
Highlight:

1005590 Powder Coating Accessories

,

Black Marking Powder Coating Accessories

,

1004370 Powder Coating Accessories

B07 540000 V2 PTFE Bushing for Electron E Coat Customizable OEM Polished Surface Master Coating Gun Feed V2



  • Product Description
    IG06 Injector Black Marking Supplementary Air Check Valve Unit 1004370 1005590 Powder Coating Accessories 0IG06 Injector Black Marking Supplementary Air Check Valve Unit 1004370 1005590 Powder Coating Accessories 1
    IG06 Injector Black Marking Supplementary Air Check Valve Unit 1004370 1005590 Powder Coating Accessories 2
    IG06 Injector Black Marking Supplementary Air Check Valve Unit 1004370 1005590 Powder Coating Accessories 3
    Powder injector (type IG06)

    Flow IG06 Powder injector - complete (pos. 1-13)
    1007 780
    A
    Conveying air check valve unit (red marking) - complete (incl. pos. 6, 8, 9 and 12)
    1005 589
    B

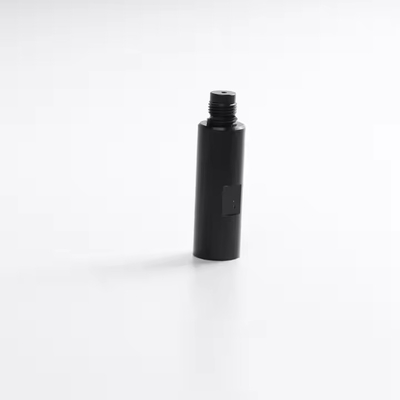

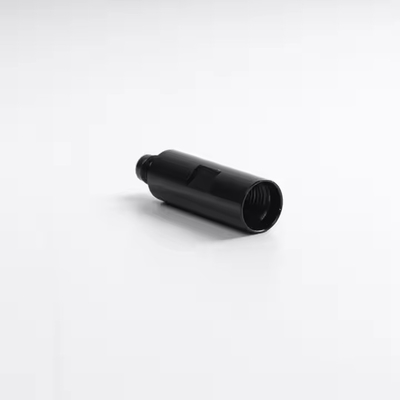

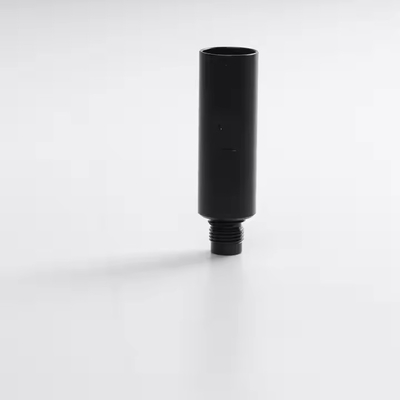

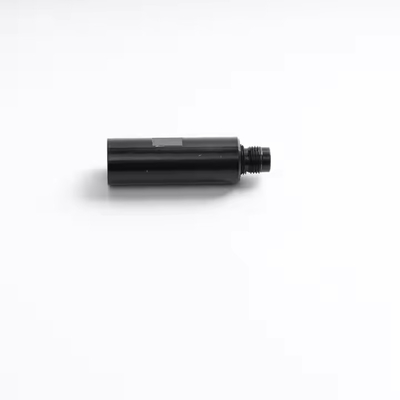

    Supplementary air check valve unit (black marking) - complete (incl. pos. 7, 8, 9 and 13)
    1005 590
    C
    Injector body - complete (incl. pos. 1, 2, 10 and 11)
    1006 530
    1
    Injector body (without pos. 2)
    1006 484
    2
    O-ring - Ø 16x2 mm
    1007 794#
    3
    Insert sleeve - PTFE, complete
    1006 485#
    4
    Hose connection - Ø 10-12 mm, complete (incl. pos 4.1)
    1006 531
    4.1
    O-ring - Ø 16x1.5 mm
    205 141#
    5
    Threaded sleeve
    1006 483
    6
    Connector (conveying air) - NW 5.5
    1004 366
    7
    Connector (supplementary air) - NW 5.5
    1004 367
    8
    O-ring-Ø11x1.5mm
    1000 532#
    9
    Filterelement-Ø9/4x27mm
    1003 698#
    10
    Nozzle
    1006 488
    11
    Nozzlefixation-complete(incl.pos.11.1)
    1007 792
    11.1
    O-ring - Ø 8x1 mm
    1007 793#
    12
    Body (red)
    1004 369
    13
    Body (black)
    1004 370
    16
    Conveying air hose - Ø 8/6 mm (red)
    103 500*
    17
    Supplementary air hose - Ø 8/6 mm (black)
    103 756*
    18
    Quick release coupling for conveying air hose - NW5-Ø 8 mm
    261 645
    19
    Quick release coupling for supplementary air hose - NW5-Ø 8 mm
    261 637

    Powder hose - 66 type, POE, Ø 16/11 mm, with conductive strip (standard)
    105 139*#

    Powder hose - 74 type, POE, Ø 15/10 mm, with conductive strip
    1001 673*#

    Powder hose - 75 type, POE, Ø 18/12 mm, with conductive strip
    1001 674*#

Company introduction

Astar Machinery Co., Ltd. is a comprehensive service in production, R&D; and sales, operates mainly in electrostatic spraying equipment, including electrostatic dust elimination equipment; electrostatic flocking machine, electrostatic powder spraying machine, electrostatic liquid spray machine, electrostatic spraying gun, high voltage module, circuit board, powder barrel, powder tube, cable, reciprocator, spraying room, control cabinet, oven, vibration sieve, air shower, gun shell, venturi tube, powder pump, deflector, nozzle, electrode holder and other products. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electrostatic powder coating and other industries.

Our products are widelyrecognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customersfrom all walks of life to contact us for future business relationships and mutual success!

IG06 Injector Black Marking Supplementary Air Check Valve Unit 1004370 1005590 Powder Coating Accessories 4
