2-A Automatic powder gun - complete, negative polarity, incl. pos. 1-6
|
393 568
|
|
|
2-A Automatic powder gun - complete, positive polarity, incl. pos. 1-6
|
393 576
|
|
1
|
Powder gun body 2-A - complete, negative polarity
|
393 649
|
|
|
Powder gun body 2-A - complete, positive polarity
|
393 657
|
|
2
|

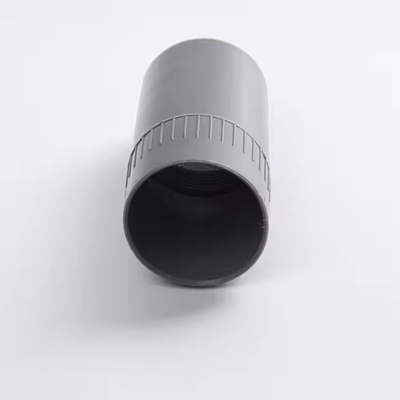

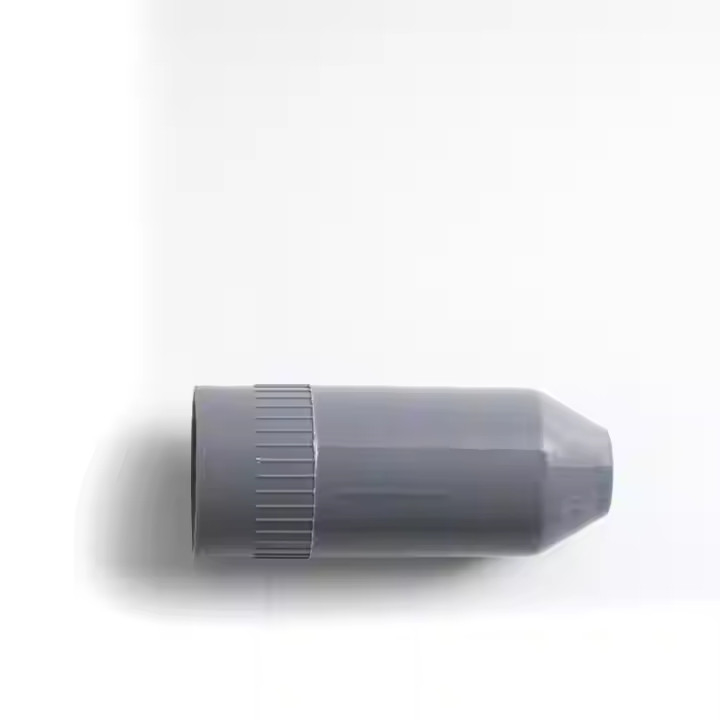

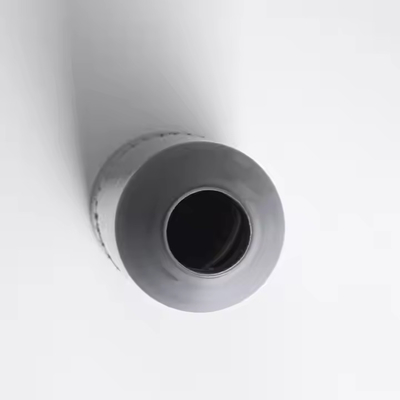

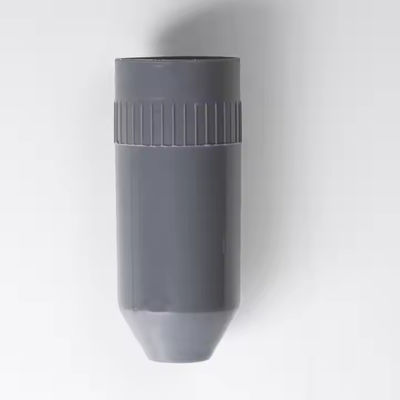

Threaded sleeve - see "Nozzle combinations" spare parts list
|
|
|
3
|
Flat jet nozzle - see "Nozzle combinations" spare parts list
|
|
|
4
|
Gun cable - complete, 20 m (65.61 ft), see also "Gun cable" spare parts list
|
393 827
|
|
5
|
Parts set (not shown), consisting of:
|
385 670
|
|
|
Cable binder with Velcro closure
|
303 070
|
|
|
Cylinder screw - M8x50 mm
|
235 113
|
|
|
Cap screw - M4x5 mm
|
216 763
|
|
|
Washer - Ø 8.4/20x2 mm
|
215 880
|
|
|
Quick release coupling - NW5, Ø 6 mm
|
200 840
|
|
6
|
Cleaning brush - Ø 12 mm (not shown)
|
389 765
|
|
7
|
7 Powder hose - Ø 16/11 mm (not shown)
|
103 012*
|
|
8
|
8 Rinsing air hose - Ø 6/4 mm (not shown)
|
103 144
|
|
1
|
2-A shaft - complete, negative polarity (see "Shaft" spare parts list)
|
393 665
|
|
|
2-A shaft - complete, positive polarity (see "Shaft" spare parts list)
|
393 673
|
|
2
|
Powder tube - complete
|
385 182#
|
|
3
|
Powder gun attachment
|
382 817
|
|
4
|
Clamp sleeve
|
358 584
|
|
5
|
Hose connection - complete
|
362 670#
|
|
5.1
|
O-ring for pos. 5 (not shown)
|
232 670#
|
|
1
|
Cascade - complete, negative polarity
|
|
|
1
|
Cascade - complete, positive polarity
|
393 703
|
|
2
|
Adaptor - complete, incl. pos. 2.4 and 2.5
|
393 711
|
|
2.4
|
Screw-in nipple - 1/8"a, Ø 6 mm
|
385 158
|
|
2.5
|
Plug cap - 1/8"a
|
251 542
|
|
3
|
Adaptor piece - complete, incl. pos. 3.3
|
265 560
|
|
3.3
|
Pan head screw - M4x6 mm
|
385 069
|
|
4
|
Shaft (without cascade)
|
267 139
|
|
5
|
Hollow screw
|
393 681
|
|
6
|
Gasket
|
382 680
|
|
2-AX Automatic powder gun - complete, negative polarity, incl. pos. 1-5
|
|
|
2-AX Automatic powder gun - 1650
|
393 509
|
|
|
2-AX Automatic powder gun - 1450
|
393 517
|
|
|
2-AX Automatic powder gun - 1250
|
393 525
|
|
|
2-AX Automatic powder gun - 1050
|
393 533
|
|
|
2-AX Automatic powder gun - 850
|
393 541
|
|
|
2-AX Automatic powder gun - 650
|
393 550
|
|
1
|
2-AX Automatic powder gun body - complete, negative polarity, see "
|
|
|
2-AX Automatic powder gun - gun body" spare parts list
|
|
2
|
Threaded sleeve - see "Nozzle combinations" spare parts list
|
379 166
|
|
3
|
Flat jet nozzle - complete, see "Nozzle combinations" spare parts list
|
|
|
4
|
Gun cable - complete, 20 m (65.61 ft), see also "Gun cable" spare parts list
|
393 827
|
|
5
|
Parts set (not shown), consisting of:
|
385 662
|
|
|
Cable binder with Velcro closure
|
303 070
|
|
|
Pan head screw - M4x6 mm
|
267 139
|
|
|
Quick release coupling - NW5, Ø 6 mm
|
200 840
|
|
6
|
Powder hose - Ø 16/11 mm (not shown)
|
103 012*
|
|
7
|
Rinsing air hose - Ø 6/4 mm (not shown)
|
103 144*
|
|
Powder gun body 2-AX - complete, negative polarity
|
|
|
2-AX-1650,L=1646mm(64.80in)
|
393584
|
|
|
2-AX - 1450, L = 1446 mm (56.93 in)
|
393 592
|
|
|
2-AX - 1250, L = 1246 mm (49.05 in)
|
393 606
|
|
|
2-AX - 1050, L = 1046 mm (41.18 in)
|
393 614
|
|
|
2-AX - 850, L = 846 mm (33.30 in)
|
393 622
|
|
|
2-AX - 650, L = 646 mm (25.43 in)
|
393 630
|
|
1
|
2-A shaft - complete, negative polarity (see spare parts list "Shaft")
|
393 665
|
|
2
|
Powder tube - complete, without pos. 4
|
|
|
|
2-AX - 1650
|
385 255#
|
|
|
2-AX - 1450
|
385 344#
|
|
|
2-AX - 1250
|
385 352#
|
|
|
2-AX - 1050
|
385 360#
|
|
|
2-AX - 850
|
385 379#
|
|
|
2-AX - 650
|
385 387#
|
|
3
|
Extension tube
|
|
|
|
2-AX - 1650
|
384 682
|
|
|
2-AX - 1450
|
385 441
|
|
|
2-AX - 1250
|
385 450
|
|
|
2-AX - 1050
|
385 468
|
|
|
2-AX - 850
|
385 476
|
|
|
2-AX - 650
|
385 484
|
|
4
|
Clamping part
|
358 584
|
|
5
|
Hose connection - complete
|
362 670#
|
|
5.1
|
O-ring for pos. 5 (not shown)
|
232 670#
|
|
Nozzle set - flat jet, NF08, pos. 1, 2
|
1000 047#
|
|
Nozzle set - round jet, pos. 5, 6, 9
|
382 922
|
|
1
|
Electrode holder (flat jet nozzle)
|
1000 055#
|
|
2
|
Flat jet nozzle
|
1000 049#
|
|
3
|
Threaded sleeve
|
379 166
|
|
5
|
O-ring - Ø 5x1 mm
|
231 606#
|
|
6
|
Round jet nozzle
|
378 518#
|
|
7
|
Deflector plate - Ø 16 mm (0.63 in)
|
331 341#
|
|
7.1
|
Deflector plate - Ø 24 mm (0.94 in)
|
331 333#
|
|
7.2
|
Deflector plate - Ø 32 mm (1.26 in)
|
331 325#
|
|
8
|
Extension - 150 mm (5.91 in)
|
378 852#
|
|
8.1
|
Extension - 300 mm (11.82 in)
|
378 860#
|
|
9
|
Electrode.pos.5
|
382 914#
|
|
Nozzle set - flat jet, NF18-M, pos. 1, 2
|
1004 530#
|
|
1
|
Electrode holder (flat jet nozzle)
|
1004 529#
|
|
2
|
Flat jet nozzle
|
1004 527#
|
|
3
|
Threaded sleeve
|
379 166
|
|
Round jet nozzle with 4 electrodes NS03-09 - complete, pos. 1, 2, 3
|
1000 249#
|
|
Round jet nozzle with 4 electrodes NS03-11 - complete, pos. 1, 2.1, 3.1
|
1000 250#
|
|
1
|
Threadedsleeve-complete
|
405 736
|
|
2
|
MuzzleNS03-09-complete
|
1000 175#
|
|
2.1
|
MuzzleNS03-11-complete
|
1000 176#
|
|
3
|
DeflectorrodNS03-09-complete
|
1000 345#
|
|
3.1
|
DeflectorrodNS03-11-complete
|
1000 346#
|
|
4
|
Deflectorplate-Ø12mm(notshown)
|
301 175#
|
|
4.1
|
Deflectorplate-Ø16mm(notshown)
|
302 040#
|
|
4.2
|
Deflectorplate-Ø20mm(notshown)
|
301 183#
|
|
4.3
|
Deflectorplate-Ø24mm(notshown)
|
301 191#
|
|
4.1
|
Deflectorplate-Ø28mm(notshown)
|
302 031#
|
|
4.4
|
Deflectorplate-Ø32mm(notshown)
|
301 205#
|
|
4.5
|
Deflector-Ø50mm
|
302 023#
|
|
1
|
2-AX Automatic powder gun
|
|
|
2
|
2-AAutomaticpowdergun-complete,withflatjetnozzleset,guncable
|
393 568
|
|
(20 m), parts set, cleaning brush, without corona, negative polarity
|
|
|
2-A Automatic powder gun - complete, with flat jet nozzle set, gun cable
|
393 576
|
|
(20 m), parts set, cleaning brush, without corona, positive polarity
|
|
3
|
corona-complete
|
385 174
|
|
|
Nozzle set - round jet nozzle (pos. 4 and 5)
|
382 922
|
|
4
|
Electrode holder (round jet nozzle central electrode)
|
382 914#
|
|
5
|
Round jet nozzle
|
378 518#
|
|
6
|
Threaded sleeve
|
379 166
|
|
|
Nozzle set - flat jet nozzle (pos. 7 and 8)
|
1000 047#
|
|
7
|
Electrode holder (flat jet nozzle)
|
1000 055#
|
|
8
|
Flat jet nozzle - NF08
|
1000 049#
|
|
9
|
Flat jet nozzle - NF04 (slot in round form)
|
383 082#
|
|
10
|
Flatjetnozzle-NF02(withoutslot)
|
384 887#
|
|
11
|
Flatjetnozzle-NF03(nozzlefrontpartØ24mm)
|
383 058#
|
|
12
|
Threadedsleeveforpos.11
|
383 074
|
