select manual powder gun - spare parts list
|
|
A
|
select manual powder gun - complete negative polarity, incl. gun cable - 6 m, rinsing air hose - 6 m, flat jet nozzle, brush and parts kit, without powder hose
|
1002 100
|
|
|
select manual powder gun - complete positive polarity, incl. gun cable - 6 m, rinsing air hose - 6 m, flat jet nozzle, brush and parts kit, without powder hose
|
1002 101
|
|
B
|
select manual powder gun shaft (incl. cascade)
|
|
|
|
Negative polarity (-)
|
1001 891
|
|
|
Positive polarity (+)
|
1001 892
|
|
C
|
Cascade (negative polarity) - complete
|
1000 809
|
|
|
Cascade (positive polarity) - complete
|
1002 031
|
|
1
|
Gun body
|
1001 155
|
|
|
Handle-completeset(pos.5,6,7and8)
|
1000807
|
|
2
|
Trigger - complete (incl. pos. 2 and 3)
|
1001 341
|
|
3
|
Compression spring-0.36x4.2x49.4mm
|
1001487
|
|
4
|
Trigger cover
|
1000 801
|
|
5
|
Grasp termination
|
1000806
|
|
6
|
Radial gasket
|
1000 803
|
|
7
|
Gun cable-L=6m,complete
|
1001528
|
|
|
Extension cable fo rgun cable-L=6m,incl.safetyclamp
|
1002161
|
|
|
Extension cable for gun cable-L=14m,incl.safetyclamp
|
1002162
|
|
|
Safety clamp for extension cable
|
1002064
|
|
8
|
Grub screw-M3x8mm
|
1000844
|
|
10
|
Powder tube-complete
|
1001339
|
|
10.2
|
O-ring-Ø12x1.5mm
|
1000822
|
|
11
|
Rinsing air connection
|
1000804
|
|
12
|
Clip ring
|
1000 898
|
|
13
|
Compression spring
|
1001488
|
|
14
|

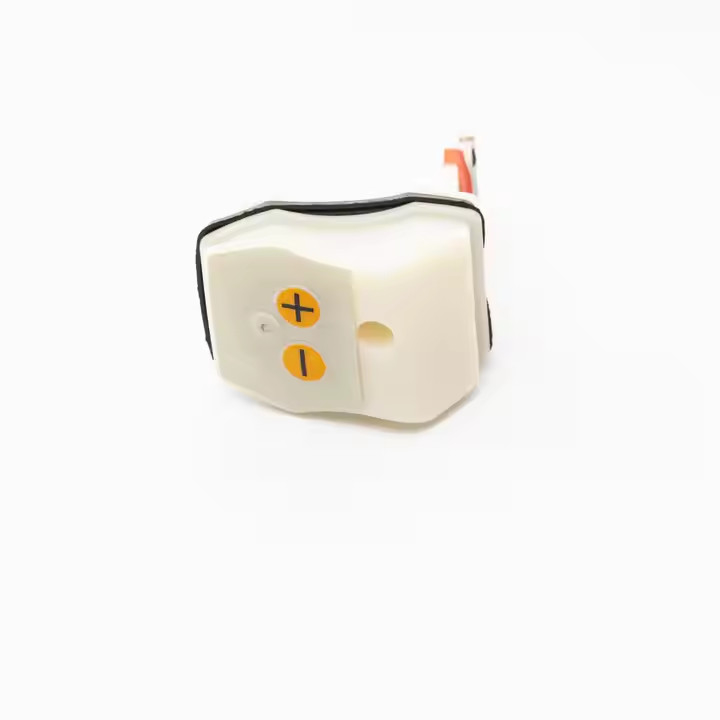

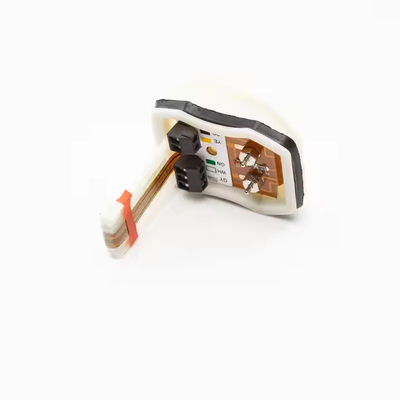

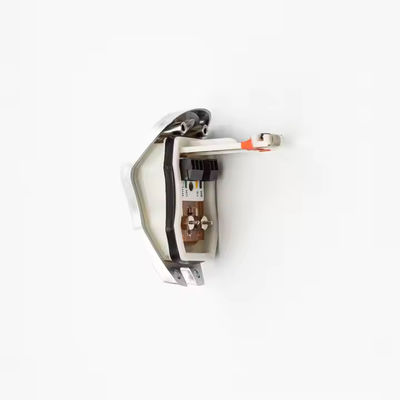

Back cover - complete
|
1000617
|
|
14.1
|
Printed circuit board holder-complete(incl.pos.14.2)
|
1002029
|
|
14.2
|
Radial gasket
|
1000 795
|
|
14.3
|
Shield - complete
|
1002 028
|
|
14.4
|
Cap screw-M3x8mm(notshown)
|
202363
|
|
15
|
Hose connection-complete,for internal hoseØ11-12mm
|
1001340
|
|
|
Hose connection-complete,for internal hoseØ9-10mm
|
1002030
|
|
15.2
|
O-ring-Ø12x1.5mm
|
1000822
|
|
16
|
Hook (replaceable)
|
1000877
|
|
17
|
Counter sunkhead screw-M4x8mm,plastic
|
263516
|
|
18
|
PT-screw
|
1000 843
|
|
19
|
Threaded sleeve-complete
|
1000948
|
|
20
|
Flat jet nozzle-complete
|
1000047
|
|
20.1
|
Electrode holder-complete
|
1000055
|
|
20.2
|
Flat jet nozzle
|
1000 049
|
|
|
OptiSelec tadaptor for PGC control unit (notshown)
|
1001952
|
|
|
Cleaning brush-Ø12mm
|
389765
|
|
|
Parts set(not shown),consisting of:
|
1002359
|
|
|
Round jet nozzle-NS02,complete
|
382922
|
|
|
Cable clamp
|
303 070
|
|
|
Deflector plate-Ø16mm
|
331341
|
|
|
Deflector plate-Ø24mm
|
331333
|
|
|
Deflector plate-Ø32mm
|
331325
|
|
|
Hose connection-complete,forinternalhoseØ11-12mm
|
1001340
|
|
|
O-ring-Ø12x1.5mm
|
1000822
|
|
|
Counter sunkhead screw-M4x8mm,plastic
|
263516
|
|
|
Powder hose-Ø10mm(notshown)
|
1001673
|
|
|
Powder hose-Ø11mm(notshown)
|
105139
|
|
|
|
|
|
select manual powder gun - nozzle combinations
|
|
Nozzle set - flat jet, NF08, pos. 1, 2 1000 047#
|
|
|
Nozzle set-roundjet,pos.5,6,9
|
382922
|
|
1
|
Electrode holder (flat jet nozzle)
|
1000 055#
|
|
2
|
Flat jet nozzle
|
1000 049#
|
|
3
|
Threaded sleeve
|
1000948
|
|
5
|
O-ring-Ø5x1mm
|
231 606#
|
|
6
|
Round jet nozzle
|
378 518#
|
|
7
|
Deflector-Ø16mm
|
331 341#
|
|
7.1
|
Deflector-Ø24mm
|
331 333#
|
|
7.2
|
Deflector-Ø32mm
|
331 325#
|
|
8
|
Extension-150mm
|
378 852#
|
|
8.1
|
Extension-300mm
|
378 860#
|
|
9
|
Electrode holder,incl.pos.5(round jet nozzle-central electrode)
|
382 914#
|
|
select manual powder gun - corona
|
|
1
|
corona-complete set,without extension,L=215mm
|
1002 066#
|
|
|
corona - complete set, for extension 150 mm, L=365 mm
|
1002 067#
|
|
|
corona - complete set, for extension 300 mm, L=515 mm
|
1002 068#
|
|
2
|
corona-connection
|
1001 466#
|
|
3
|
corona-Ring
|
391 980#
|
|
|
corona-Ring, for extension version 150 mm
|
394 173#
|
|
|
corona-Ring, for extension version 300 mm
|
394 203#
|
|
|
Profiles (Standard nozzle) NF08
|
1000049
|
|
|
NF09
|
1000 118
|
|
|
For recess openings and cavities (deep) NF11
|
1000 122
|
|
|
Angled spray pattern (Boron Nitride) NF12
|
1000 124
|
|
|
Wide flat spray for large surface areas nf10
|
1000 120
|
|
|
Flat jet nozzle for metallic powders NF16 - M
|
1003 182
|
|
|
electrode
|
1000 55
|
|
|
complete jet spray nozzle NF08
|
1000 047
|
|
|
complete jet spray nozzle NF09
|
1000 119
|
|
|
complete jet spray nozzle NF11
|
1000 123
|
|
|
complete jet spray nozzle NF12
|
1000 125
|
|
|
complete jet spray nozzle NF10
|
1000 121
|
|
|
Threaded sleeves
|
1000 948
|
|
|
Threaded sleeves
|
383 074
|
|
|
Multi spray adapter
|
1003 636
|
|
|
Multi spray adapter
|
1003 897
|
|
|
For large flat surface areas NS02
|
378 518
|
|
|
Electrode
|
382 914#
|
|
|
NS02 complete round spray nozzle
|
382 922
|
|
|
threaded sleeves
|
1000 948
|
|
|
|
|
|
|
Ø 25 mm Flat spray Gun extensions 150mm
|
396 923
|
|
|
Ø 25 mm Flat spray Gun extensions 300mm
|
396 931
|
|
|
Ø 25 mm Deflector Gun extensions 150mm
|
396 940
|
|
|
Ø 25 mm Deflector Gun extensions 300mm
|
396 958
|
|
|
|
|
|
|
Fast color change standard antistatic powder hose Ø 11/16 mm POE
|
105 139
|
|
|
Fast color change low powder flow antistatic powder hose Ø 10/15 mm POE
|
1001 673
|
|
|
Fast color change high powder flow powder hose Ø 12/18 mm POE
|
1001 674
|
|
|
Boron Nitride powder low powder flow powder hose for special applications Ø 9.5/12.5 mm PUR
|
103 705
|
|
|
Used on previous equipment powder hose for special applications Ø 11/16 mm PUR
|
103 012
|
|
|
Enamel powder flexible epowder hose PVC material Ø 11/16 mm
|
103 128
|
|
|
Enamel powder flexible epowder hose PVC material Ø 12/20 mm
|
100 080
|
|
|
Powder hose connector 9-10 mm hoses
|
1002 030
|
|
|
Hose connector for 11-12 mm hoses
|
1001 340
|
