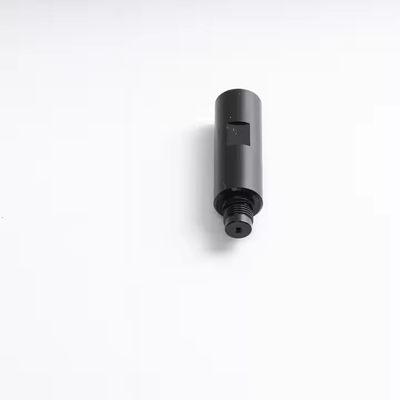

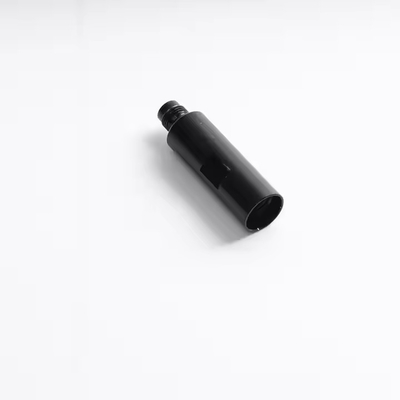

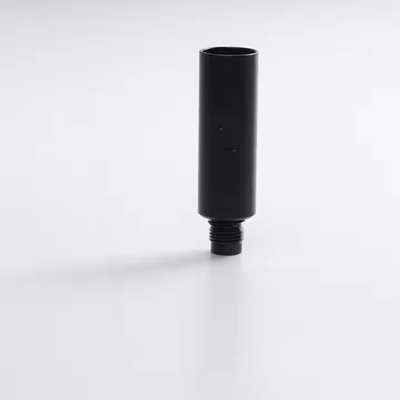

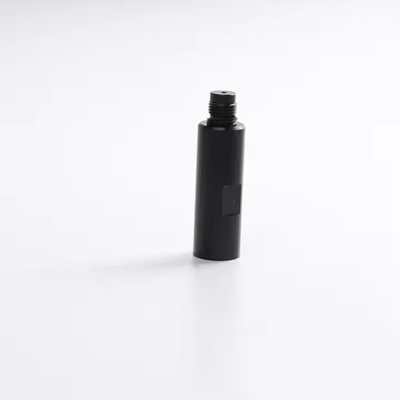

1004370 1005590 IG06 Injector Supplementary air Check Valve Unit Black Marking Powder Coating Accessories

1004370 1005590 IG06 Injector Supplementary air Check Valve Unit Black Marking Powder Coating Accessories
1004370 1005590 IG06 Injector Supplementary air Check Valve Unit Black Marking Powder Coating Accessories 1004370 1005590 IG06 Injector Supplementary air Check Valve Unit Black Marking Powder Coating Accessories 1004370 1005590 IG06 Injector Supplementary air Check Valve Unit Black Marking Powder Coating Accessories 1004370 1005590 IG06 Injector Supplementary air Check Valve Unit Black Marking Powder Coating Accessories

Large Image :  1004370 1005590 IG06 Injector Supplementary air Check Valve Unit Black Marking Powder Coating Accessories

Product Details:
Place of Origin: China
Brand Name: Astar
Certification: CE, ISO9001
Model Number: 1004370 1005590
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5 - 8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now

1004370 1005590 IG06 Injector Supplementary air Check Valve Unit Black Marking Powder Coating Accessories

Description
Type: Powder Coating Machine Model Number: 1004370 1005590
Dimension(l*w*h): Standard Grade: DIY, Industrial, PROFESSIONAL
Customized Support: OEM, ODM, OBM Weight: 0.25KG
Motor Power: NONE Operating Mode: Automatic, Manual
Highlight:

1005590 IG06 Injector

,

1004370 IG06 Injector

,

Black Marking Powder Coating Accessories

1004370 1005590 IG06 Injector Supplementary air Check Valve Unit Black Marking Powder Coating Accessories



Product Description

1004370 1005590 IG06 Injector Supplementary air Check Valve Unit Black Marking Powder Coating Accessories 01004370 1005590 IG06 Injector Supplementary air Check Valve Unit Black Marking Powder Coating Accessories 1

Original Interchangeable End Plate with Hook 1007217 for Gm03 Opti Powder Gun.It more suitable for profiles or flat parts powder coating. The size and material can completely work with Gema GA03 and GM03 electrostatic powder coating guns.



Product Features
*Brand
Astar
*Name

1004370 1005590 IG06 Injector Supplementary air Check Valve Unit Black Marking Powder Coating Accessories
*Max Pressure
6-8 bar
*Weight
0.25kg
*Customized support
OEM, ODM, OBM
*Model number
GM04
*Dimension(l*w*h)
Standard


*Package
Carton Box



1004370 1005590 IG06 Injector Supplementary air Check Valve Unit Black Marking Powder Coating Accessories 2





1004370 1005590 IG06 Injector Supplementary air Check Valve Unit Black Marking Powder Coating Accessories 3

Powder injector (type IG06)

Flow IG06 Powder injector - complete (pos. 1-13)
1007 780
A
Conveying air check valve unit (red marking) - complete (incl. pos. 6, 8, 9 and 12)
1005 589
B
Supplementary air check valve unit (black marking) - complete (incl. pos. 7, 8, 9 and 13)
1005 590
C
Injector body - complete (incl. pos. 1, 2, 10 and 11)
1006 530
1
Injector body (without pos. 2)
1006 484
2
O-ring - Ø 16x2 mm
1007 794#
3
Insert sleeve - PTFE, complete
1006 485#
4
Hose connection - Ø 10-12 mm, complete (incl. pos 4.1)
1006 531
4.1
O-ring - Ø 16x1.5 mm
205 141#
5
Threaded sleeve
1006 483
6
Connector (conveying air) - NW 5.5
1004 366
7
Connector (supplementary air) - NW 5.5
1004 367
8
O-ring-Ø11x1.5mm
1000 532#
9
Filterelement-Ø9/4x27mm
1003 698#
10
Nozzle
1006 488
11
Nozzlefixation-complete(incl.pos.11.1)
1007 792
11.1
O-ring - Ø 8x1 mm
1007 793#
12
Body (red)
1004 369
13
Body (black)
1004 370
16
Conveying air hose - Ø 8/6 mm (red)
103 500*
17
Supplementary air hose - Ø 8/6 mm (black)
103 756*
18
Quick release coupling for conveying air hose - NW5-Ø 8 mm
261 645
19
Quick release coupling for supplementary air hose - NW5-Ø 8 mm
261 637

Powder hose - 66 type, POE, Ø 16/11 mm, with conductive strip (standard)
105 139*#

Powder hose - 74 type, POE, Ø 15/10 mm, with conductive strip
1001 673*#

Powder hose - 75 type, POE, Ø 18/12 mm, with conductive strip
1001 674*#
