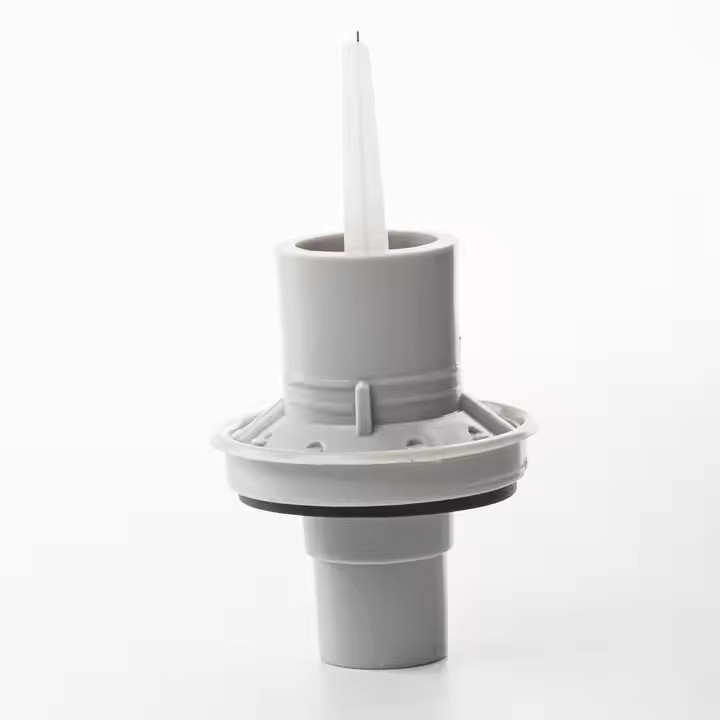

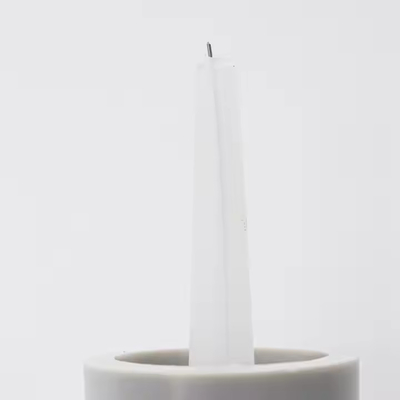

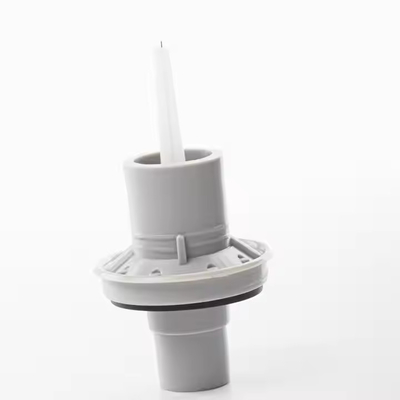

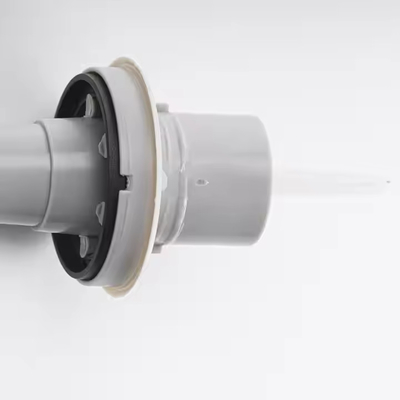

1613834 Electrode Support Assy Flat Spray Manual Powder Spray Gun Parts

Basic Properties
Place of Origin: China
Brand Name: Astar
Certification: CE, ISO9001
Model Number: 1613834
Trading Properties
Minimum Order Quantity: 1
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Tags

1000049 flat jet nozzle

PTFE flat jet spray nozzle

15MM Pinch Valve Sleeve
Product Summary
1613834 Electrode Support Assy Flat Spray Manual Powder Spray Gun Parts Product Description 1613835 Conical Spray Electrode Support Assy for HD Powder Coating Gun. The size and material can completely work with GA03 and GM03 electrostatic powder coating guns. Product Features *Brand Astar *Name ...

Product Details

Highlight:

Nordson Powder Spray Gun Parts

,

Manual Powder Spray Gun Parts

,

Flat Spray Powder Spray Gun Parts
Type: Powder Coating Machine
Weight (Kg): 0.25kg
Substrate: Plastic
Video Outgoing-Inspection: Provided
Machinery Test Report: Provided
Application: Powder Coating Machine
Key Selling Points: Easy To Operate, Competitive Price, Long Service Life
Product Description

1613834 Electrode Support Assy Flat Spray Manual Powder Spray Gun Parts



Product Description




1613834 Electrode Support Assy Flat Spray Manual Powder Spray Gun Parts 01613834 Electrode Support Assy Flat Spray Manual Powder Spray Gun Parts 1

1613835 Conical Spray Electrode Support Assy for HD Powder Coating Gun. The size and material can completely work with GA03 and GM03 electrostatic powder coating guns.



Product Features
*Brand
Astar
*Name

1613834 Electrode Support Assy Flat Spray Manual Powder Spray Gun Parts
*Substrate
Plastic
*Dimension(l*w*h)
Standard
*Customized support
OEM, ODM, OBM
*Weight
0.25KG
*Machine type
Coating Equipment


*Application
Powder coating machine






1613834 Electrode Support Assy Flat Spray Manual Powder Spray Gun Parts 2


1613834 Electrode Support Assy Flat Spray Manual Powder Spray Gun Parts 3

Item
Part
Description
Quantity
Note
−
1106893
HANDGUN assembly, LT
1

1
1081638
•NUT, nozzle, handgun
1

2
1081658
•NOZZLE, fat spray, 4 mm
1
A
3
1604824
•ELECTRODE ASSEMBLY, , fat spray
1
F
3A
1106078
• •ELECTRODE, spring contact
1

3B
1605863
• •HOLDER, electrode, M3, fat spray,
1
F
4
1085024
•KIT, powder outlet tube,
1
D
4A
941113
• •O-RING, silicone, 0.438 x 0.625 x 0.094 in.
1

5
1081785
• •O-RING, silicone, 0.468 x 0.568 x 0.05 in.
1

6
1088502
•GASKET, multiplier cover, handgun
1

7
1106872
•BULKHEAD, multiplier, handgun, LT/XT
1

8
1087559
•COVER, housing,
1

9
1618782
•KIT, gun display housing
1

10
1087760
•HOOK, handgun
1

11
1078075
•SCREW, pan head, recessed, M3 x 30, zinc
1

12
760580
•SCREW, Philips head, M3 x 20, zinc
3

13
1608280
•KIT, negative power supply/manual body,
1
G
14
1088558
• •FILTER ASSEMBLY, handgun
1

15
1106871
•HANDLE, ground pad, handgun, LT/XT
1

16
983520
•WASHER, lock, internal, M3, zinc
1

17
982427
•MACHINE SCREW, pan head, recessed, M3 x 6, zinc
1

18
1096695
•ELBOW, powder tube, handgun
1
D
19
1081540
•TRIGGER, purge, setting, handgun
1

20
1606999
•KIT, trigger w axle,
1

20A
− − − − −
• •AXLE, trigger, solid, spray gun,
1

21
1106892
• •ACTUATOR, switch, trigger, LT/XT
1

22
1088601
•SCREW, fat head, recess, M5x 10, nylon
1

23
1108095
•KIT, trigger switch, LT
1

24
1106870
•HANDLE, handgun, LT/PE
1

25
1085026
•KIT, powder inlet tube,
1

25A
1084773
• •O-RING, silicone, 18 mm ID x 2 mm wide
2

25B
1081785
• •O-RING, silicone, 0.468 x 0.568 x 0.05 in.
1

26
1106756
•CABLE ASSEMBLY, spray gun, manual, LT, 6 meter
1
E
26A
940129
• •O-RING, silicone, conductive, 0.375 x 0.50in.
1

26B
1604500
• •CLAMP, cable, 0.25 ID x 0.05 thick, white
1

27
1087762
•BASE, handle, handgun
1

28
1081617
•CHECK VALVE, male, M5 x 6 mm
1

29
1081616
•FITTING, bulkhead, barb, dual, 10−32 x 4 mm
1

30
1081777
•RETAINING RING, external, 10 mm
1

31
1604828
•KIT, conical nozzle,


32
1083206
• •DEFLECTOR ASSEMBLY, conical, 26 mm
1
A
Continued...



Company introduction

Astar Machinery Co., Ltd. is a comprehensive service in production, R&D; and sales, operates mainly in electrostatic spraying equipment, including electrostatic dust elimination equipment; electrostatic flocking machine, electrostatic powder spraying machine, electrostatic liquid spray machine, electrostatic spraying gun, high voltage module, circuit board, powder barrel, powder tube, cable, reciprocator, spraying room, control cabinet, oven, vibration sieve, air shower, gun shell, venturi tube, powder pump, deflector, nozzle, electrode holder and other products. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electrostatic powder coating and other industries.

Our products are widelyrecognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customersfrom all walks of life to contact us for future business relationships and mutual success!

1613834 Electrode Support Assy Flat Spray Manual Powder Spray Gun Parts 4



Mr. Tilo Zhou

Project manager
