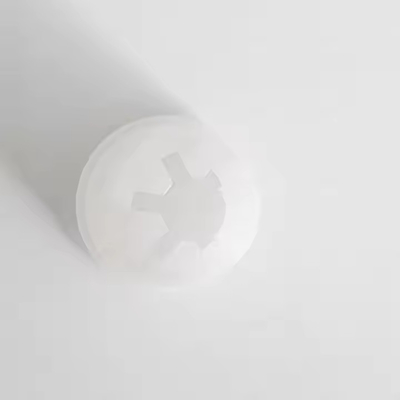

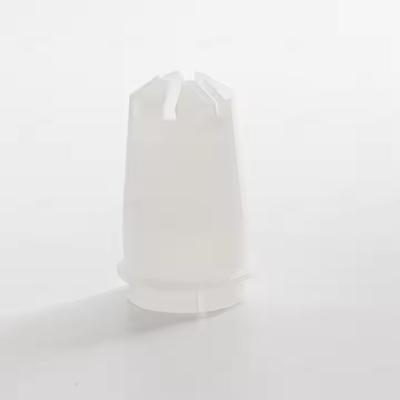

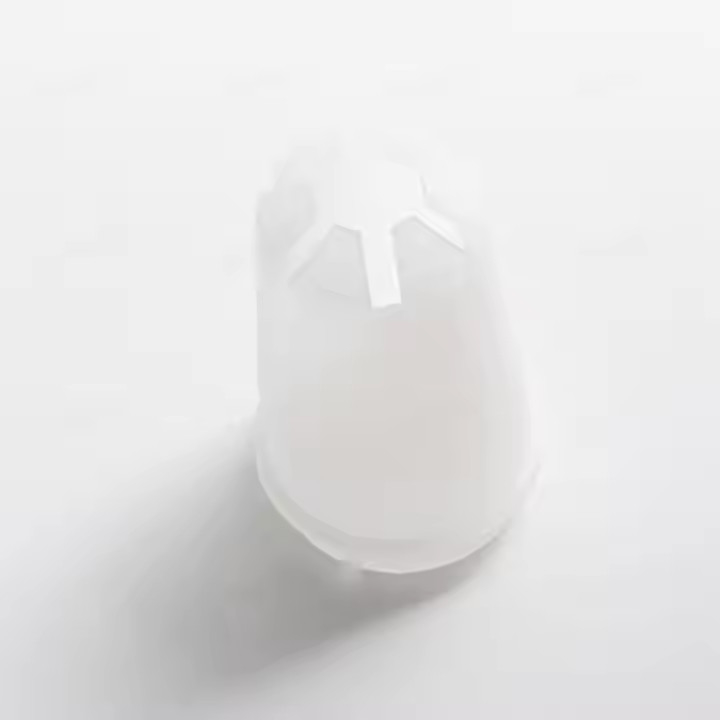

Flat Spray Nozzles 1605851 108218 Tivar Material 2.5mm Castle Cross Cut Nozzle

Basic Properties
Place of Origin: China
Brand Name: Astar
Certification: CE, ISO9001
Model Number: 1605851 108218
Trading Properties
Minimum Order Quantity: 1
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Tags

1000049 flat jet nozzle

PTFE flat jet spray nozzle

15MM Pinch Valve Sleeve
Product Summary
Flat Spray Nozzles 1605851 108218 Tivar Material 2.5mm Castle Cross Cut Nozzle Product Description Flat Spray Nozzles 1605851 108218 Tivar Material 2.5mm Castle Cross Cut Nozzle. It more suitable for profiles or flat parts powder coating. The size and material can completely work with GA03 and GM03 ...

Product Details

Highlight:

2.5mm Flat Spray Nozzles

,

Tivar Material Flat Spray Nozzles

,

1605851 Flat Spray Nozzles
Max Pressure: 6 - 8 Bar
Substrate: Plastic
Dimension(L*W*H): Standard
Machine Type: Coating Equipment
Weight: 0.25kg
Video Outgoing-Inspection: Provided
Key Selling Points: Easy To Operate, Competitive Price, Long Service Life
Application: Powder Coating Machine
Product Description

Flat Spray Nozzles 1605851 108218 Tivar Material 2.5mm Castle Cross Cut Nozzle



Product Description





Flat Spray Nozzles 1605851 108218 Tivar Material 2.5mm Castle Cross Cut Nozzle 0Flat Spray Nozzles 1605851 108218 Tivar Material 2.5mm Castle Cross Cut Nozzle 1

Flat Spray Nozzles 1605851 108218 Tivar Material 2.5mm Castle Cross Cut Nozzle. It more suitable for profiles or flat parts powder coating. The size and material can completely work with GA03 and GM03 electrostatic powder coating guns.



Product Features
*Brand
Astar
*Name

Flat Spray Nozzles 1605851 108218 Tivar Material 2.5mm Castle Cross Cut Nozzle
*Dimension(l*w*h)
Standard
*Substrate
Plastic
*Machine type
Coating equipment
*Weight
0.25kg
*Video outgoing-inspection
Provided


*Machinery test report
Provided



Flat Spray Nozzles 1605851 108218 Tivar Material 2.5mm Castle Cross Cut Nozzle 2



Flat Spray Nozzles 1605851 108218 Tivar Material 2.5mm Castle Cross Cut Nozzle 3

1605845
2.5mm flat spray nozzle
1605846
3mm flat spray nozzle
1605848
6mm flat spray nozzle
1605849/1082184
60 degree cross cut nozzle
1605850/1082185
90 degree cross cut nozzle
1605851/1082186
2.5mm castle cross cut nozzle



Flat Spray Nozzles 1605851 108218 Tivar Material 2.5mm Castle Cross Cut Nozzle 4

Item
Part
Description
Quantity
Note
−
1106893
HANDGUN assembly, LT
1

1
1081638
•NUT, nozzle, handgun
1

2
1081658
•NOZZLE, fat spray, 4 mm
1
A
3
1604824
•ELECTRODE ASSEMBLY, , fat spray
1
F
3A
1106078
• •ELECTRODE, spring contact
1

3B
1605863
• •HOLDER, electrode, M3, fat spray,
1
F
4
1085024
•KIT, powder outlet tube,
1
D
4A
941113
• •O-RING, silicone, 0.438 x 0.625 x 0.094 in.
1

5
1081785
• •O-RING, silicone, 0.468 x 0.568 x 0.05 in.
1

6
1088502
•GASKET, multiplier cover, handgun
1

7
1106872
•BULKHEAD, multiplier, handgun, LT/XT
1

8
1087559
•COVER, housing,
1

9
1618782
•KIT, gun display housing
1

10
1087760
•HOOK, handgun
1

11
1078075
•SCREW, pan head, recessed, M3 x 30, zinc
1

12
760580
•SCREW, Philips head, M3 x 20, zinc
3

13
1608280
•KIT, negative power supply/manual body,
1
G
14
1088558
• •FILTER ASSEMBLY, handgun
1

15
1106871
•HANDLE, ground pad, handgun, LT/XT
1

16
983520
•WASHER, lock, internal, M3, zinc
1

17
982427
•MACHINE SCREW, pan head, recessed, M3 x 6, zinc
1

18
1096695
•ELBOW, powder tube, handgun
1
D
19
1081540
•TRIGGER, purge, setting, handgun
1

20
1606999
•KIT, trigger w axle,
1

20A
− − − − −
• •AXLE, trigger, solid, spray gun,
1

21
1106892
• •ACTUATOR, switch, trigger, LT/XT
1

22
1088601
•SCREW, fat head, recess, M5x 10, nylon
1

23
1108095
•KIT, trigger switch, LT
1

24
1106870
•HANDLE, handgun, LT/PE
1

25
1085026
•KIT, powder inlet tube,
1

25A
1084773
• •O-RING, silicone, 18 mm ID x 2 mm wide
2

25B
1081785
• •O-RING, silicone, 0.468 x 0.568 x 0.05 in.
1

26
1106756
•CABLE ASSEMBLY, spray gun, manual, LT, 6 meter
1
E
26A
940129
• •O-RING, silicone, conductive, 0.375 x 0.50in.
1

26B
1604500
• •CLAMP, cable, 0.25 ID x 0.05 thick, white
1

27
1087762
•BASE, handle, handgun
1

28
1081617
•CHECK VALVE, male, M5 x 6 mm
1

29
1081616
•FITTING, bulkhead, barb, dual, 10−32 x 4 mm
1

30
1081777
•RETAINING RING, external, 10 mm
1

31
1604828
•KIT, conical nozzle,


32
1083206
• •DEFLECTOR ASSEMBLY, conical, 26 mm
1
A
34
1605861
• •HOLDER, electrode, M3, conical,
1

32
1083205
•DEFLECTOR ASSY, conical, 19 mm,
1
A
32A
1098306
• •O-RING, Viton, 3 mm x 1.1 mm wide
1
B
35
1106200
•KIT, hose adapter, hose, handgun,
1

35A
940157
• •O-RING, Viton, black, 0.563 x 0.688, 10415
2

NS
900617
•TUBE, polyurethane, 4 mm OD, clear
AR
C
NS
900741
•TUBING, polyurethane, 6/4 mm, black
AR
C
NS
900620
•TUBING, poly, spiral cut, 3/8 in. ID
AR
C
