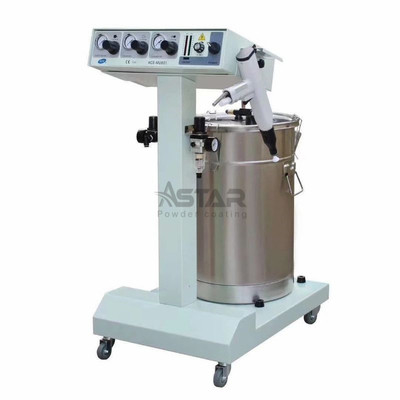

Good Quality KCI 801 Manual Electrostatic Powder Coating Machine
Complete Economic Durable KCI 801 Manual Electrostatic Powder Coating Machine
Introduction
This KCI 801 manual electrostatic spraying machine can effectively ensure the uniform spraying of corners or internal dead corners of complex workpieces by manual spraying, avoid the leakage of workpieces, ensure the uniformity of spraying of workpieces and improve the corrosion resistance of products.
Welcome new and old customers to inquire and purchase!
Working principle
Electrostatic powder coating is a kind of coating produced by electrostatic powder spray gun, which makes powder particles negatively charged while dispersing. Charged powder particles are coated on the grounding coating under the action of airflow and electrostatic attraction.
When the spray gun is close to the workpiece, the current and voltage will be automatically adjusted. In general, a flat workpiece needs high voltage, and a concave workpiece needs low voltage to make the powder penetrate into the concave part of the workpiece. This device can overcome various problems caused by the superconductivity of metal powder. It can improve the powder loading rate and the first pass rate of products. A variety of nozzle choices, spraying width can be adjusted according to the size of the workpiece.
Quick Details
Voltage
| 220V - 240V | Output air pressure | 0 - 0.5Mpa |
Control voltage of solenoid valve
| 24V DC | Output voltage | 0 - 100Kv |
| Input power | 40W | Gas consumption | 13.2m / h ( 0.4Mpa ) |
| Input air pressure | 0 - 0.6Mpa | Output current | 0 - 150uA |
| Output air pressure | 600g / min | Capacity of powder hopper | 45L |
Advantages and selling points
1. 3M long powder conveying pipe and connecting controller cable are configured in the original factory.
2. All stainless steel powder supply barrel, well sealed flap, bottom layer of density fluidizing plate.
3. The solid and durable working platform cart makes the shift work more convenient.
Characteristic
1. Spray gun, with built-in JD generator, spray powder evenly to prevent JD backflow.
2. Voltage doubling electronic components ensure the reliability and stability of the built-in voltage doubling circuit.
3. Using precision integrated circuit to complete work, high efficiency, fast powder, good spraying quality, manual and automatic.
4. The design of two-way air pump makes the powder atomization flow large, and improves the coating quality and powder loading rate. Usually the powder rate reaches 99%.
5. Specially added to the ground safety protection circuit to ensure the safety of workers and machines.
6. All stainless steel powder barrel, fluidizing plate, high air permeability, easy to clean.
7. Suitable for a variety of powder spraying, epoxy (commonly used), polyester, metal powder spraying effect is good. Powder changing is simple and fast, suitable for multicolor spraying.
Package
Cartoon package
Company introduction
Astar Machinery Co., Ltd. is a comprehensive service in production, R&D; and sales, operates mainly in electrostatic spraying equipment, including electrostatic dust elimination equipment; electrostatic flocking machine, electrostatic powder spraying machine, electrostatic liquid spray machine, electrostatic spraying gun, high voltage module, circuit board, powder barrel, powder tube, Hv cable, reciprocator, spraying room, control cabinet, oven, oven, vibration sieve, the wind leaching room, supply Gema, KCI, Wagner accessories, professional wholesale gun shell, venturi tube, powder pump, deflector, nozzle, electrode holder and other products.
