1602 Infrared Gas Burner Electrostatic Powder Coating Line
Product Details

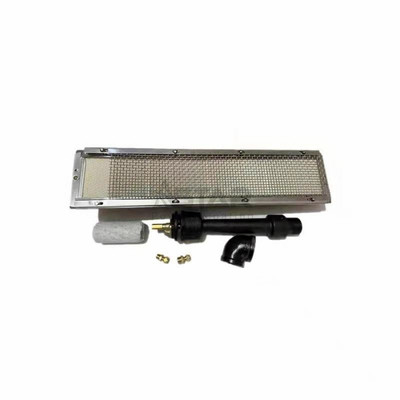

1602 Infrared Gas Burner Gas Stove Oven Gas Infrared Stove Head Heater
Introdction
Infrared gas burner (also known as gas burner ) has good combustion performance, long service life and high performance-to-price ratio.The shell of the gas burner adopts high temperature resistant cast steel, and the heat energy plate selects the imported high temperature resistant honeycomb porous ceramic plate as the combustion plate; the gas burner is completely premixed with air during combustion to ensure complete combustion, thus reducing the emission of pollutants.
Working Principal
During the combustion of gas burner, about 70% of the energy is transferred into infrared wave by means of radiation. This kind of infrared wave 2-6um is most easily absorbed by matter molecules and polymers, and has a strong penetrating force, which can stimulate the resonance of water molecules, evenly permeate heat into the core of the heated object, ensure uniform heating effect, improve heating quality and drying efficiency.The utility model has the advantages of high efficiency and energy saving, fast heating, high calorific value and energy saving gas. The combustion temperature is as high as 1000 ℃, and the general stove is only about 600C.
Quick Details
| Product Name | Infrared Gas Burner | Calorific value | 5400kcal/h |
| Gas consumption |
0.46㎏/h |
Model | 1602 |
| Specifications | 570*135*195mm | Material technology | Anodic hardening treatment of High strength Aluminum Surface |
| Warranty | 12 Months | Weight | 9KG |
| Combustion temperature | 1000℃ | Warranty | Industrial paint, ceramics, food, printing and dyeing, etc. |
Advantages and selling points
1. Compared with fuel oil, coal burning and electric furnaces, the thermal energy consumption is saved by 30% and more than 40%.
2. High efficiency and energy saving, fast heating up, high calorific value and small waste gas.
3. Easy to install and use.
Package
Wooder case
