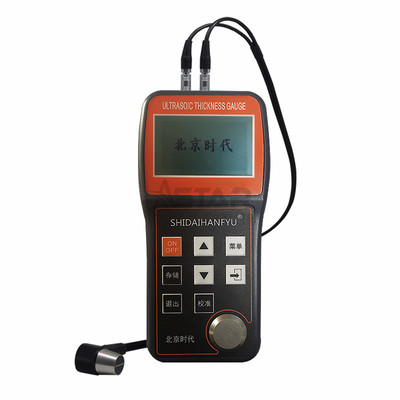

Penetration Type Through Coating Ultrasonic Thickness Gauge TT360

Name: Penetration Type Through Coating Ultrasonic Thickness Gauge TT360
Brand: Cangzhou Astar Machinery Co., Ltd.
SKU: TT360
Price: 2,351.00 USD
Availability: InStock

Basic Properties

Place of Origin: China

Brand Name: Beijing Time

Certification: 3C

Model Number: TT360

Trading Properties

Minimum Order Quantity: 1 Set

Price: Negotiable

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal

Supply Ability: 100 sets per month

100KV Electrostatic Measuring Rod

ZA-100D Electrostatic Measuring Rod

static voltage Measuring Rod

Product Summary

TT360 Precision Coating Penetration Type Ultrasonic Coating Thickness Gauge Introduction TT360 ultrasonic coating thickness Gauge is a portable ultrasonic thickness gauge.It adopts the measurement method of double crystal probe multiple echoes to "penetrate the coating", which does not need to ...

Product Details

Material: PVC Plastic Shell Material

Model: TT360

Measuring Precision: 0.01mm Or 0.001mm

Type: Coating Penetration Intelligent Type

Display: LED Liquid Crystal Display

Weight: 220g

Material Temperature: 0°C - 500°C（It Depends On The Probe）

Measuring Range: 0.6-400mm（Double Crystal Probe）

Power: 2* AA Battery（1.5V）

Dimension(L*W*H): 150*70*35mm

Measuring Frequency: 5MHz

Sound Velocity Range: 1000-9999m/s

Measurement Mode: Continuous Mode And Single Mode

Product Description

TT360 Precision Coating Penetration Type Ultrasonic Coating Thickness Gauge

Introduction

TT360 ultrasonic coating thickness Gauge is a portable ultrasonic thickness gauge.It adopts the measurement method of double crystal probe multiple echoes to "penetrate the coating", which does not need to remove the coating at the measuring point, and saves time and cost for users.

Application

It is applied to glass thickness measurement, steel wall thickness measurement, element thickness measurement, plastic thickness measurement and so on.

Quick Details

Material	PVC plastic shell material	Model	TT360
Type	Coating Penetration Intelligent type	Material temperature	0°C - 500°C
Power	2*AA battery	Measuring precision	0.01mm or 0.001mm
Measuring range	0.6-400MM	Display	LED liquid crystal display
Weight	220g	*Dimension(LWH)*	1507035mm

Advantages and selling points

1. Penetrate the coating to save time and cost.
2. Industrial grade special instrument.
3. Easy to carry.
4. The measured value does not jump.

Package

Paper box package

Company introduction

Astar Machinery Co., Ltd. is a comprehensive service in production, R&D; and sales, operates mainly in electrostatic spraying equipment, including electrostatic dust elimination equipment; electrostatic flocking machine, electrostatic powder spraying machine, electrostatic liquid spray machine, electrostatic spraying gun, high voltage.
