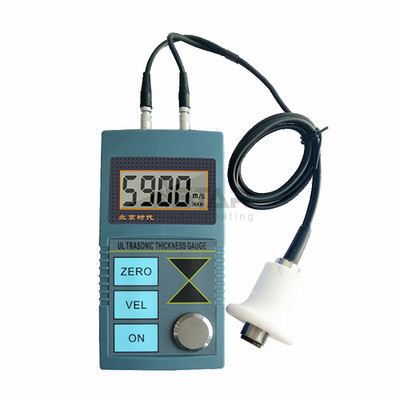

0.05mm TT120 Ultrasonic Thickness Measuring Instrument
Product Details
Precision 300°C resistant TT120 Ultrasonic coating thickness gauge
Introduction
TT120 ultrasonic thickness measuring instrument according to the ultrasonic pulse reflection principle to measure the thickness, when the probe emitted ultrasonic pulse through the measured object to the material interface, the pulse is reflected back to the probe, by accurately measuring the ultrasonic wave propagation time in the material to determine the thickness of the material to be measured.
Application
TT120 ultrasonic thickness gauge can measure the thickness of any ultrasonic good conductor material, such as metal, plastic, ceramic, glass.
Quick Details
| Type | Ultrasonic coating thickness gauge | Model | TT120 |
| Accuracy class | 0.05mm | Material temperature | -10°C - 300°C |
| Power | 2*AA battery | Resolution | 0.01mm |
| Measuring range | 0.8-300MM | Display | LCD |
| Weight | 170g | Dimension(L*W*H) | 126*66*27mm |
Advantages and selling points
1. Automatic zero check
2. Coupling State Hint
3. High precision
4. Automatic shutdown
Package
Paper box package
