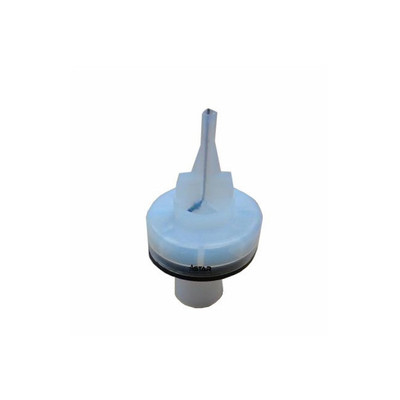

1000055 NF08 PTFE Flat Electrode Holder For Gm01 Gm02 And Ga02

Name: 1000055 NF08 PTFE Flat Electrode Holder For Gm01 Gm02 And Ga02
Brand: Cangzhou Astar Machinery Co., Ltd.
SKU: 1000055
Price: 1,751.00 USD
Availability: InStock

Basic Properties

Place of Origin: China

Brand Name: Astar

Certification: CE , ISO9001

Model Number: 1000055

Trading Properties

Minimum Order Quantity: 1 Piece

Price: Negotiable

Payment Terms: T/T, Western Union, L/C, D/A, D/P, T/T, MoneyGram, PayPal

Supply Ability: 100 pieces per month

1000055 NF08 PTFE Flat Electrode Holder For Gm01 Gm02 And Ga02 Introduction It is made by PTFE material and suitable for powder coating tools. Flat jet nozzle with vented central electrode. The vented flat jet nozzle serves for the atomizing and charging of the powder. The powder cloud obtains an ...

Product Details

Part Number: 1000055

Type: Flat

Size: Standard

Material: PTFE

Application: GM02/GA02 Powder Coating Gun

Feature: Durable

Brand: Astar

Flat Nozzle: 1000049

Function: Spray Nozzle

Openning: Flat

Components: Electrode Holder

Package: Plastic Box+Wood Carton

Product Description

1000055 NF08 PTFE Flat Electrode Holder For Gm01 Gm02 And Ga02

Introduction

It is made by PTFE material and suitable for powder coating tools.

Flat jet nozzle with vented central electrode. The vented flat jet nozzle serves for the atomizing and charging of the powder. The powder cloud obtains an oval spray pattern by the slot-shaped opening. The powder is charged by the central electrode. The high voltage, which is created in the gun cascade, is conducted through the black contact ring of the nozzle holder to the central electrode. In order to prevent a powder sintering on the electrode, this is rinsed with compressed air during spraying procedure. Therefore, the rinsing air is fed through the small hole in the black contact ring of the nozzle holder into the electrode attachment. The rinsing air adjustment on the control module is explained in the corresponding operating manual.

Application

GM02/GA02 powder coating gun

Quick Details

Model	1000055	Feature	Durable
Type	Flat	Brand	Astar
Size	Standard	Flat nozzle	1000049
Material	PTFE	Openning	Flat
Application	GM01, GM02 and GA02 powder coating gun	Components	Electrode holder

Advantages and selling points

1. A class PTFE material
2. Durable and long working life
3. Safe and non-toxic

4. Standard size

Package

Paper box package

Company introduction

Astar Machinery Co., Ltd. is a comprehensive service in production, R&D; and sales, operates mainly in electrostatic spraying equipment, including electrostatic dust elimination equipment; electrostatic flocking machine, electrostatic powder spraying machine, electrostatic liquid spray machine, electrostatic spraying gun, high voltage module, circuit board, powder barrel, powder tube, Hv cable, reciprocator, spraying room, control cabinet, oven, oven, vibration sieve, the wind leaching room.
