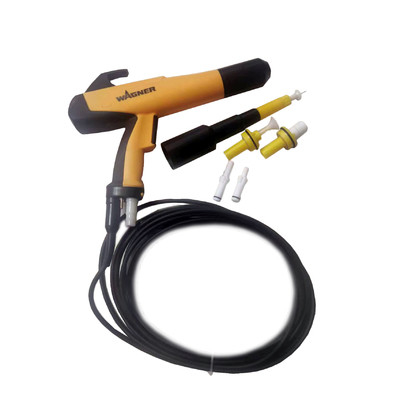

2322587 PEM - X1 Manual Electrostatic Powder Coating Gun With Flat Nozzle

2322587 PEM - X1 Manual Electrostatic Powder Coating Gun With Flat Nozzle
2322587 PEM - X1 Manual Electrostatic Powder Coating Gun With Flat Nozzle

Large Image :  2322587 PEM - X1 Manual Electrostatic Powder Coating Gun With Flat Nozzle

Product Details:
Place of Origin: China
Brand Name: ASTAR
Certification: CE , ISO9001
Model Number: AP01.1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Paper Box Package
Delivery Time: 5 - 8 Work Days
Payment Terms: T/T,Western Union,D/P,D/A,L/C,MoneyGram,PayPal,Alibaba Order
Supply Ability: 100 Pieces Per Month
Contact Now

2322587 PEM - X1 Manual Electrostatic Powder Coating Gun With Flat Nozzle

Description
Name: PEM - X1 Manual Electrostatic Powder Coating Gun Feature: High Static
Color: Yellow Nozzle Extension: 150mm
Polarity: Negative Electrode: 2322490 X1 R ET
Nozzle Extension: 2323366 X1 VL 150MM Usage: Powder Coating
Place Of Origin: Cangzhou, China Warranty: 1 Year
Highlight:

manual electrostatic powder coating gun

,

powder coating gun with flat nozzle

,

PEM X1 electrostatic coating gun

PEM - X1 Manual Electrostatic Powder Coating Gun With Flat Nozzle
Product Description

PEM - X1 Manual Electrostatic Powder Coating Gun X1 Extension Spray Nozzle

Operation Procedure
  • Switch off the high-voltage generation on the control unit
  • Before connecting the manual gun, check that all components (nozzle system and union nut) are correctly fitted
  • Connect the manual gun's electrical cable to the control unit
  • Connect the powder feed hose to the manual gun and to the powder injector
  • Connect the atomizing air hose to the manual gun and to the control unit
Application

Electrostatic powder coating

Technical Specifications
Input voltage maximum 22 Vpp
Input current maximum 0.9 A
Frequency 19-30 kHz
Output voltage maximum 100 kV DC
Maximum Corona current 120 µA
Polarity negative
Input air pressure (atomizing air volume) maximum 3 bar; 0.3 MPa, 43.51 psi
Powder discharge quantity maximum 450 g/min; maximum 0.99 lbs/min
Working Life Long working life
Warranty 1 Year
Key Features
  • High quality construction
  • Large output voltage capacity
  • Regular stock availability
  • Fast delivery service
Packaging

Paper box package

Manufacturer Information

Astar Machinery Co., Ltd. is a comprehensive service provider in production, R&D and sales, specializing in electrostatic spraying equipment including electrostatic dust elimination equipment, electrostatic flocking machines, powder and liquid spray machines, and related accessories. We supply original equipment parts for Gema, KCI, and systems.

Product Images
2322587 PEM - X1 Manual Electrostatic Powder Coating Gun With Flat Nozzle 0 2322587 PEM - X1 Manual Electrostatic Powder Coating Gun With Flat Nozzle 1 2322587 PEM - X1 Manual Electrostatic Powder Coating Gun With Flat Nozzle 2 2322587 PEM - X1 Manual Electrostatic Powder Coating Gun With Flat Nozzle 3 2322587 PEM - X1 Manual Electrostatic Powder Coating Gun With Flat Nozzle 4 2322587 PEM - X1 Manual Electrostatic Powder Coating Gun With Flat Nozzle 5
