Good Price Three Modes Adjustable Desktop Manual Powder Coating Machine
Product Details

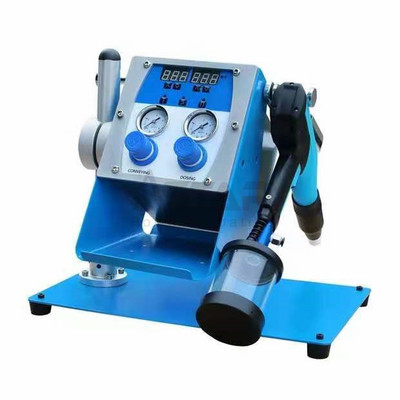

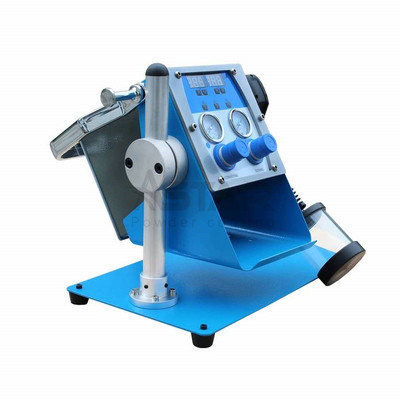

Desktop Three Modes Adjustable Electrostatic Powder Coating Machine
Introduction
AS919-T desktop three modes adjustable electrostatic powder coating machine is suitable for small size powder coating production . It can achieve good effect, good atomization, uniform spraying effect. It has high powder loading rate and low voltage loss. The three modes can be shifted by one button press. It's very convenient to use.
Working principle
Mainly used to optimize the surface quality of metal or plastic workpiece. It is a coating method of spraying powder coating into mist by high pressure, charging negatively under the action of high voltage DC electric field, and adsorbing on the surface of positively charged substrate to discharge, so as to make it uniformly adsorb on the surface of workpiece and solidify, so as to achieve the purpose of beauty and wear resistance.
Quick Details
|
Voltage |
220V | Output air pressure | 0.5Mpa |
|
Frquency |
50Hz - 60 Hz | Output voltage | 0 - 95KV |
| Input power | 30W | Gas consumption | 15m³ / min |
| Input air pressure | 0.6 Mpa | Output current | 150uA |
| Output air pressure | 600g / min | Type of hopper | Cup |
Advantages and selling points
Package
Cartoon package
