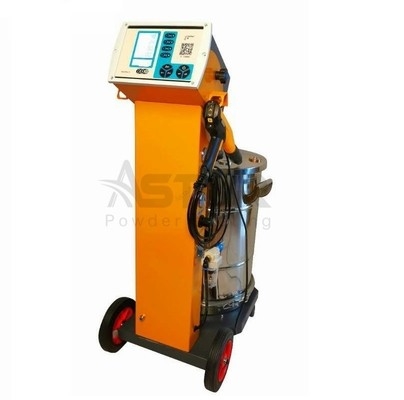

High Powder Loading Rate K3 Electrostatic Powder Coating Machine Voltage110V / 220V

Name: High Powder Loading Rate K3 Electrostatic Powder Coating Machine Voltage110V / 220V
Brand: Cangzhou Astar Machinery Co., Ltd.
SKU: ASK3
Price: 2,550.00 USD
Availability: InStock

Basic Properties

Place of Origin: China

Brand Name: ASTAR

Certification: CE

Model Number: ASK3

Trading Properties

Minimum Order Quantity: 1

Price: Negotiable

Payment Terms: T/T, Western Union, L/C, D/A, D/P, MoneyGram, PayPal

Supply Ability: 100 sets/month

Optiflex 2C electrostatic powder coating system

Laboratory electrostatic powder coating system

LCD aluminum powder coating machine

Product Summary

K3 High Powder Loading Rate Manual Electrostatic Powder Coating Machine Application Widely used in auto parts, hardware machinery, metal products, hardware accessories, chassis cabinet and other fields Working principle Electrostatic powder coating machine is an industrial equipment used for surface ...

Product Details

Product Name: K3 Electrostatic Powder Coating Machine

Voltage: 110V / 220V

Control Voltage Of Solenoid Valve: 24V DC

Input Power: 40W

Input Air Pressure: 0.4-1Mpa

Powder Output: 600g Per Minute

Output Air Pressure: 0.5Mpa Max.

Output Voltage: 95KV Max.

Gas Consumption: 0.4Mpa

Output Current: 150uA Max.

Function: Three Modes Coating

Display: Digital Display

Warranty: 1 Year

Delivery Time: 3 Days

Product Description

K3 High Powder Loading Rate Manual Electrostatic Powder Coating Machine

Application

Widely used in auto parts, hardware machinery, metal products, hardware accessories, chassis cabinet and other fields

Working principle

Electrostatic powder coating machine is an industrial equipment used for surface treatment of objects. It can spray powder coatings containing epoxy resin, polyester resin (plastic) and other materials onto the objects. The sprayed objects are solidified in the fixed telephone furnace to obtain a complete layer, so as to play the functions of decoration and anti-corrosion. The principle of electrostatic spraying technology: the powder coating is sprayed on the surface of the workpiece with electrostatic spraying equipment (electrostatic spraying machine). Under the action of electrostatic, the powder will be evenly adsorbed on the surface of the workpiece to form a powdery coating; the powdery coating is baked and leveled at high temperature to form a final coating with different effects (different kinds of effects of powder coating); the spraying effect is Mechanical strength, adhesion, corrosion resistance, aging resistance and other aspects are better than the painting process, and the cost is also lower than the same effect of painting. Process name, process objectives, tasks and detailed steps, relevant equipment and materials

Quick Details

Voltage	110V / 220V	Output air pressure	0.5Mpa Max.
Control voltage of solenoid valve	24V DC	Output voltage	95KV Max.
Input power	40W	Gas consumption	13.2m / h ( 0.4Mpa )
Input air pressure	0.4-1Mpa	Function	Three modes coating
Output air pressure	600g / min	Feature	Digital display

Advantages and selling points

1. The workpiece can be coated at room temperature

2. The utilization rate of powder is high, up to 95%

3. The coating is thin and uniform, smooth and free from sagging

4. Continuous, flat and smooth film can be formed on sharp edge and rough surface of workpiece.

Package

Cartoon package

Company introduction

Astar Machinery Co., Ltd. is a comprehensive service in production, R&D; and sales, operates mainly in electrostatic spraying equipment, including electrostatic dust elimination equipment; electrostatic flocking machine, electrostatic powder spraying machine, electrostatic liquid spray machine, electrostatic spraying gun, high voltage module, circuit board, powder barrel, powder tube, Hv cable, reciprocator, spraying room, control cabinet, oven, oven, vibration sieve, the wind leaching room.
