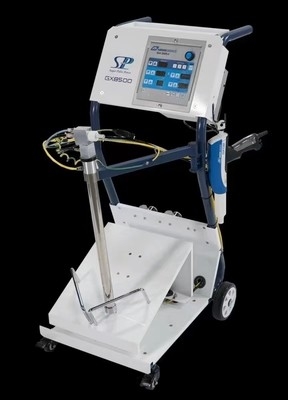

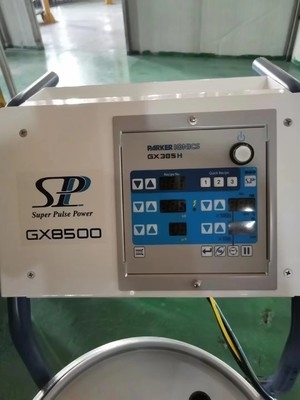

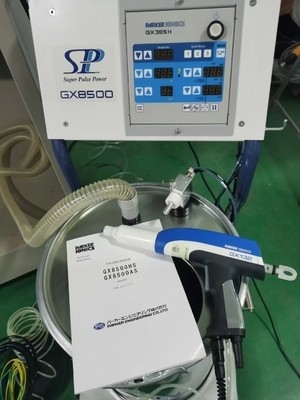

GX8500 GX385H 100Kv Powder Coating Machine Super Plus Power Japan Parker Ionics
Basic Properties
Place of Origin:
China
Brand Name:
ASTAR
Certification:
CE
Model Number:
GX8500
Trading Properties
Minimum Order Quantity:
1
Price:
Negotiable
Payment Terms:
T/T, Western Union, L/C, D/A, D/P, MoneyGram, PayPal
Supply Ability:
100 sets/month
Product Summary
Super plus power Japan Parker Ionics GX8500 GX385H Powder Coating Machine ApplicationThis electrostatic powder coating unit uses high voltages, compressed air and powder paint. Electrostatic powder coating is a coating method in which powder paint is electrically charged and made to deposit on work ...
Product Details
Brand:
Parker Ionics
Model:
GX8500A-S
Weight:
45KG
Power:
AC100 To 240V, 50/60Hz, 50Va
Air Source:
0.5 To 0.6 MPa, Oil Free Dry Air, 180N L/min.
Max Gun Impression Voltage:
100Kv
Max Cable Impression Voltage:
24V ( ACV Peak Value)
Short Circuit Current:
100 UA ( Max Current: 80uA)
Gun Weight:
480g (including Gun Head)
Cable Length:
7m
Product Description
Super plus power Japan Parker Ionics GX8500 GX385H Powder Coating Machine
Application
This electrostatic powder coating unit uses high voltages, compressed air and powder paint.
Electrostatic powder coating is a coating method in which powder paint is electrically charged and made to deposit on work to be coated by electrostatic force.
General process of powder deposition by electrostatic powder coating unit
(1) Powder paint is mixed in a powder hopper using compressed air. (Fluidized).
(2) The fluidized powder paint is vacuum suctioned from the powder paint tank by the injector pump
and conveyed by air through the powder hose the gun.
(3) High voltage is impressed from the electrode on gun tip, forming a corona charge which charges
the powder paint.
(4) Powder paint is conveyed by the air spray as well as the electrostatic force of the charge and
electrical field formed by the electrode on the gun tip and is deposited on grounded work to be
coated.
Quick Details
Outer dimensions | 600W x 743D x 1070H mm | Feature | Standard corona gun |
Charge method | Corona charge | High voltage impression | Built-in source method |
Powder hopper | Fluidized layer cassette method | Capacity | 60L |
Powder transpor | Injector method | Gun voltage (kV) | 0 to 100 |
Charge mode | A mode, F mode, R mode, continuous charge | Warranty | 1 year |
Advantages and selling points
1. Original source
2. Long time and stable working, not easy to get broken.
3. Good powder loading rate
4. World class aftersale service.
Package
Cartoon package
Company introduction
Astar Machinery Co., Ltd. is a comprehensive service in production, R&D; and sales, operates mainly in electrostatic spraying equipment, including electrostatic dust elimination equipment; electrostatic flocking machine, electrostatic powder spraying machine, electrostatic liquid spray machine, electrostatic spraying gun, high voltage module, circuit board, powder barrel, powder tube, Hv cable, reciprocator, spraying room, control cabinet, oven, oven, vibration sieve, the wind leaching room.
Coating effect:
