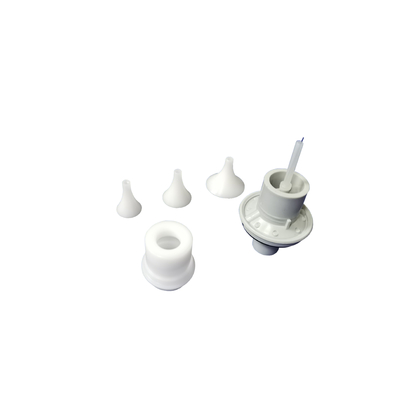

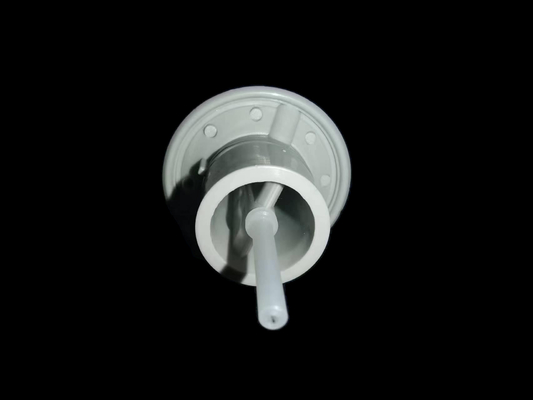

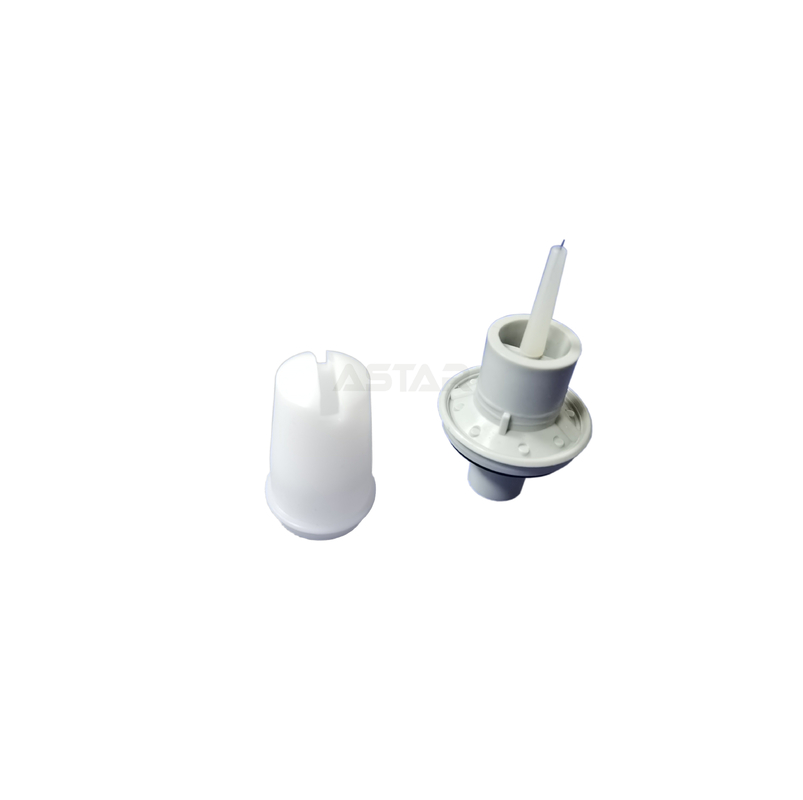

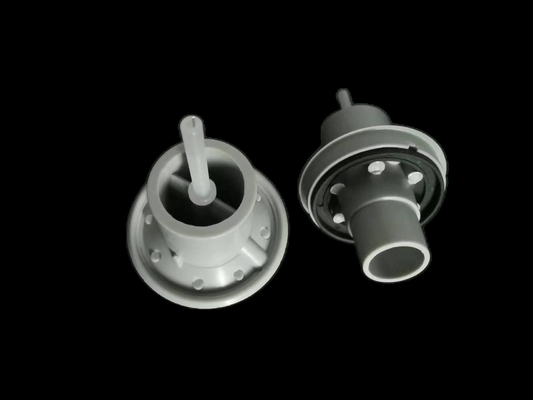

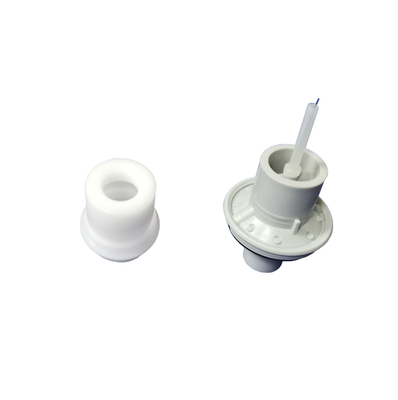

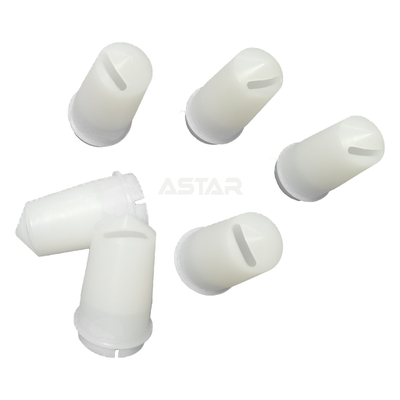

1081658 4mm Flat Spray Nozzle Assembly For Manual Automatic Gun
Basic Properties
Place of Origin:
China
Brand Name:
ASTAR
Certification:
CE, ISO9001
Model Number:
ASTAR
Trading Properties
Minimum Order Quantity:
1
Price:
Negotiable
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Summary
4mm Flat Spray Nozzle Assembly For Manual And Automatic Gun Introduction It is made in A class PTFE material which is durable and antistatic. The products can be well used to manual spray gun and automatic powder spray guns. The optional spray nozzles are as following: Code Flat spray nozzle 1081656 ...
Product Details
Highlight:
4mm Flat Spray Nozzle
,1081658 Flat Spray Nozzle
,powder coating gun spares 1081658
Code 1:
1081658 Flat Spray Nozzle
Code 2:
1605847 Flat Spray Nozzle
Code 3:
1604824 Electrode Assembly
Code 4:
1613834 Electrode Support Assy, Flat Spray
Size Of Nozzle:
4mm
Material:
A Class PTFE
Shape:
Flat
Application:
Manual And Automatic Spray Gun
Color:
White And Grey
Feather:
Flat Spray Nozzle Assembly
Product Description
4mm Flat Spray Nozzle Assembly For Manual And Automatic Gun
Introduction
It is made in A class PTFE material which is durable and antistatic. The products can be well used to manual spray gun and automatic powder spray guns.
The optional spray nozzles are as following:
| Code | Flat spray nozzle |
| 1081656 | 2.5mm flat spray nozzle |
| 1081657 | 3mm flat spray nozzle |
| 1081658 | 4mm flat spray nozzle |
| 1081659 | 6mm flat spray nozzle |
| Code | Cross spray nozzle |
| 1082184 | 60 Degree Corss - cut nozzle |
| 1082185 | 90 Degree Corss - cut nozzle |
| 1082186 | 2.5mm Castle nozzle |
| Code | Conor spray nozzle |
| 1102872 | 45 Degree conor spray nozzle |
| Code | In Line flat spray nozzle |
| 1102872 | 45 Degree flat spray nozzle |
Other related spare parts you may interested:
| 1106893 | HANDGUN assembly, LT | |||||||
| 1081638 | NUT, nozzle, handgun | |||||||
| 1081658 | NOZZLE, flat spray, 4 mm | |||||||
| 1604824 | ELECTRODE ASSEMBLY, , flat spray | |||||||
| 1106078 | ELECTRODE, spring contact | |||||||
| 1605863 | HOLDER, electrode, M3, flat spray, | |||||||
| 1085024 | KIT, powder outlet tube, | |||||||
| 941113 | O-RING, silicone, 0.438 x 0.625 x 0.094 in. | |||||||
| 1081785 | O-RING, silicone, 0.468 x 0.568 x 0.05 in. | |||||||
| 1088502 | GASKET, multiplier cover, handgun | |||||||
| 1106872 | BULKHEAD, multiplier, handgun, LT/XT | |||||||
| 1087559 | COVER, housing, | |||||||
| 1087558 | HOUSING, gun, | |||||||
| 1087760 | HOOK, handgun | |||||||
| 1078075 | SCREW, pan head, recessed, M3 x 30, zinc | |||||||
| 760580 | SCREW, head, M3 x 20, zinc | |||||||
| 1608280 | KIT, negative power supply/manual body, | |||||||
| 1088558 | FILTER ASSEMBLY, handgun | |||||||
| 1106871 | HANDLE, ground pad, handgun, LT/XT | |||||||
| 983520 | WASHER, lock, internal, M3, zinc | |||||||
| 982427 | MACHINE SCREW, pan head, recessed, M3 x 6, zinc | |||||||
| 1096695 | ELBOW, powder tube, handgun | |||||||
| 1081540 | TRIGGER, purge, setting, handgun | |||||||
| 1606999 | KIT, trigger w axle, | |||||||
| − − − − − | AXLE, trigger, solid, spray gun, | |||||||
| 1106892 | ACTUATOR, switch, trigger, LT/XT | |||||||
| 1088601 | SCREW, flat head, recess, M5x 10, nylon | |||||||
| 1108095 | KIT, trigger switch, LT | |||||||
| 1106870 | HANDLE, handgun, LT/XT | |||||||
| 1085026 | KIT, powder inlet tube, | |||||||
| 1084773 | O-RING, silicone, 18 mm ID x 2 mm wide | |||||||
| 1081785 | O-RING, silicone, 0.468 x 0.568 x 0.05 in. | |||||||
| 1106756 | CABLE ASSEMBLY, spray gun, manual, LT, 6 meter | |||||||
| 940129 | O-RING, silicone, conductive, 0.375 x 0.50in. | |||||||
| 1604500 | CLAMP, cable, 0.25 ID x 0.05 thick, white | |||||||
| 1087762 | BASE, handle, handgun | |||||||
| 1081617 | CHECK VALVE, male, M5 x 6 mm | |||||||
| 1081616 | FITTING, bulkhead, barb, dual, 10−32 x 4 mm | |||||||
| 1081777 | RETAINING RING, external, 10 mm | |||||||
| 1604828 | KIT, conical nozzle, | |||||||
| 1083206 | DEFLECTOR ASSEMBLY, conical, 26 mm | |||||||
Application
powder spray gun
Advantages and selling points
1. Original size and material
2. Suitable for large size powder coating
3. Wear resistance and long working life
4. A class material
Package
Paper box package
