Product Details:
|
Code 1: | 1081658 Flat Spray Nozzle | Code 2: | 1605847 Flat Spray Nozzle |
---|---|---|---|
Code 3: | 1604824 Electrode Assembly | Code 4: | 1613834 Electrode Support Assy, Flat Spray |
Size Of Nozzle: | 4mm | Material: | A Class PTFE |
Shape: | Flat | Application: | Manual And Automatic Spray Gun |
Color: | White And Grey | Feather: | Flat Spray Nozzle Assembly |
Highlight: | 4mm Flat Spray Nozzle,1081658 Flat Spray Nozzle,powder coating gun spares 1081658 |

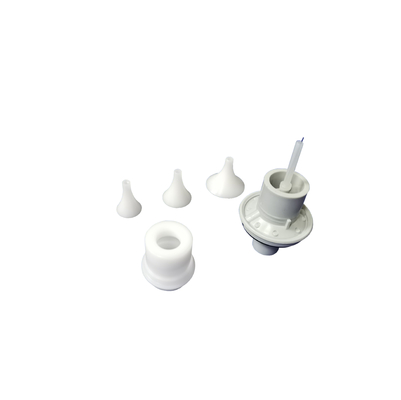

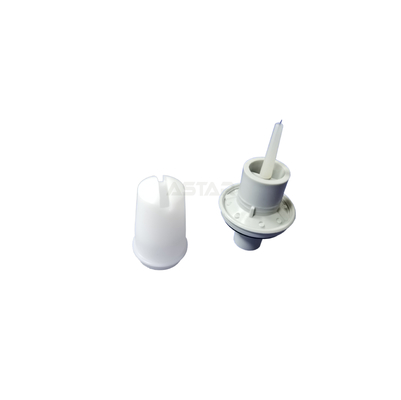

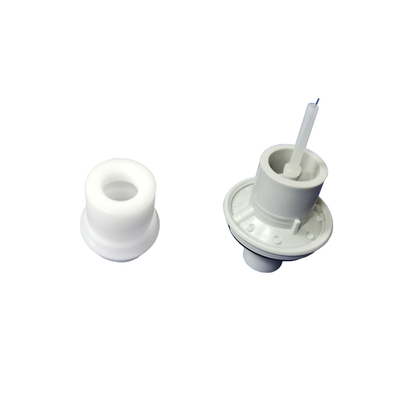

4mm Flat Spray Nozzle Assembly For Manual And Automatic Gun
Introduction
It is made in A class PTFE material which is durable and antistatic. The products can be well used to manual spray gun and automatic powder spray guns.
The optional spray nozzles are as following:

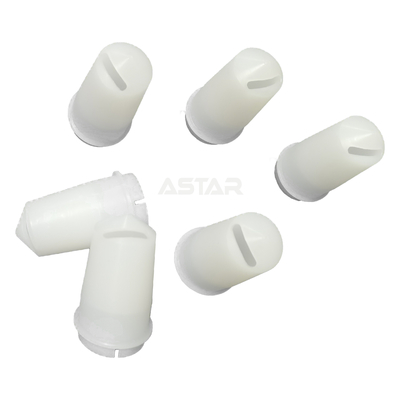

Code | Flat spray nozzle |
1081656 | 2.5mm flat spray nozzle |
1081657 | 3mm flat spray nozzle |
1081658 | 4mm flat spray nozzle |
1081659 | 6mm flat spray nozzle |
Code | Cross spray nozzle |
1082184 | 60 Degree Corss - cut nozzle |
1082185 | 90 Degree Corss - cut nozzle |
1082186 | 2.5mm Castle nozzle |
Code | Conor spray nozzle |
1102872 | 45 Degree conor spray nozzle |
Code | In Line flat spray nozzle |
1102872 | 45 Degree flat spray nozzle |
Other related spare parts you may interested:
1106893 | HANDGUN assembly, LT | |||||||
1081638 | NUT, nozzle, handgun | |||||||
1081658 | NOZZLE, flat spray, 4 mm | |||||||

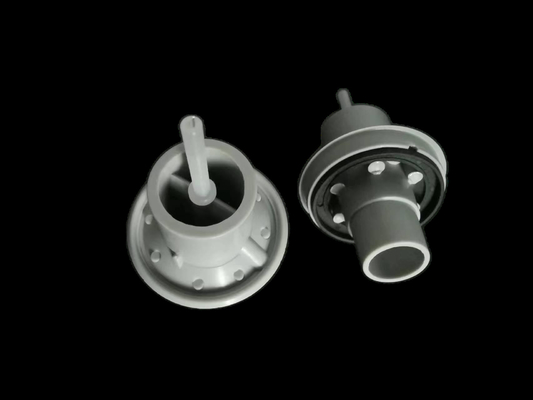

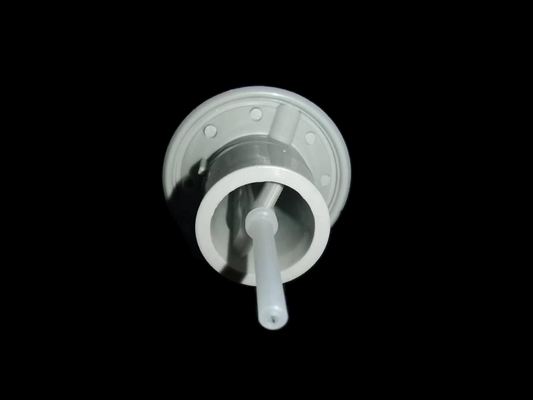

1604824 | ELECTRODE ASSEMBLY, , flat spray | |||||||
1106078 | ELECTRODE, spring contact | |||||||
1605863 | HOLDER, electrode, M3, flat spray, | |||||||
1085024 | KIT, powder outlet tube, | |||||||
941113 | O-RING, silicone, 0.438 x 0.625 x 0.094 in. | |||||||
1081785 | O-RING, silicone, 0.468 x 0.568 x 0.05 in. | |||||||
1088502 | GASKET, multiplier cover, handgun | |||||||
1106872 | BULKHEAD, multiplier, handgun, LT/XT | |||||||
1087559 | COVER, housing, | |||||||
1087558 | HOUSING, gun, | |||||||
1087760 | HOOK, handgun | |||||||
1078075 | SCREW, pan head, recessed, M3 x 30, zinc | |||||||
760580 | SCREW, head, M3 x 20, zinc | |||||||
1608280 | KIT, negative power supply/manual body, | |||||||
1088558 | FILTER ASSEMBLY, handgun | |||||||
1106871 | HANDLE, ground pad, handgun, LT/XT | |||||||
983520 | WASHER, lock, internal, M3, zinc | |||||||
982427 | MACHINE SCREW, pan head, recessed, M3 x 6, zinc | |||||||
1096695 | ELBOW, powder tube, handgun | |||||||
1081540 | TRIGGER, purge, setting, handgun | |||||||
1606999 | KIT, trigger w axle, | |||||||
− − − − − | AXLE, trigger, solid, spray gun, | |||||||
1106892 | ACTUATOR, switch, trigger, LT/XT | |||||||
1088601 | SCREW, flat head, recess, M5x 10, nylon | |||||||
1108095 | KIT, trigger switch, LT | |||||||
1106870 | HANDLE, handgun, LT/XT | |||||||
1085026 | KIT, powder inlet tube, | |||||||
1084773 | O-RING, silicone, 18 mm ID x 2 mm wide | |||||||
1081785 | O-RING, silicone, 0.468 x 0.568 x 0.05 in. | |||||||
1106756 | CABLE ASSEMBLY, spray gun, manual, LT, 6 meter | |||||||
940129 | O-RING, silicone, conductive, 0.375 x 0.50in. | |||||||
1604500 | CLAMP, cable, 0.25 ID x 0.05 thick, white | |||||||
1087762 | BASE, handle, handgun | |||||||
1081617 | CHECK VALVE, male, M5 x 6 mm | |||||||
1081616 | FITTING, bulkhead, barb, dual, 10−32 x 4 mm | |||||||
1081777 | RETAINING RING, external, 10 mm | |||||||
1604828 | KIT, conical nozzle, | |||||||
1083206 | DEFLECTOR ASSEMBLY, conical, 26 mm |
Application
powder spray gun
Advantages and selling points
1. Original size and material
2. Suitable for large size powder coating
3. Wear resistance and long working life
4. A class material
Package
Paper box package
