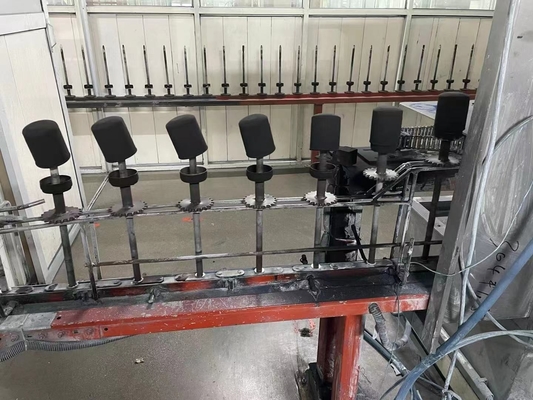

Automatic Filter Spraying Line Electrostatic Powder Coating Line
Product design purpose
According to the technical parameters and process requirements provided by the user, the application of foreign advanced ground chain spraying professional technology, combined with our years of design and manufacturing experience, the complete set of coating production equipment, based on reasonable configuration, excellent performance, high quality, high requirements, low consumption, and high efficiency, ensures the good operation of the entire production line, to meet the requirements of high-quality product coating production, and to make the coating products reach the advanced level of the industry.
At the same time, full consideration shall be given to:
1. Reduce the operation cost in the production process and increase the service life of the equipment;
2. The production line is progressiveness, feasible, reliable, safe and energy-saving
And incomparable beauty.
Process flow of automatic painting production line
Manual loading → automatic powder spraying → curing → natural cooling → manual unloading
Main structure of automatic coating production line equipment (one coating and one baking) Note: two spray chambers
| |
Compose |
Substance |
Sets |
| 1 |
Conveyor |
P50.8mm special chain |
1 set |
| 2 |
Automatic spraying system |
HEY-2013 |
1 set |
| 3 |
Automatic rotation system |
HEY-2013 |
1 set |
| 4 |
Powder curing equipment |
100T * 100KG composite material |
1 set |
| 5 |
Upper and lower section equipment |
1.2TSPG plate and 40 square materials are mixed |
2 set |
| 6 |
Powder feeding equipment |
SHT-2010 |
1 set |
| 7 |
Control system |
SHT-2010 |
1 set |
| 8 |
Cooling system |
Natural |
1 set |
| 9 |
Thermal energy system |
Heating system |
1 set |
| 10 |
Drive system |
SHT 001 variable frequency adjustable |
1 set |
Wide application
It is suitable for spraying and plastic spraying on the surface of profiles.It is applied to machinery industry, construction industry, chemical industry, automobile industry, aviation industry, shipbuilding industry, etc.
Product advantage
Economical, practical, reliable, beautiful, and progressiveness.
The production environment and safety guarantee of the operators during the long-term use of the equipment shall be taken into account in the design, manufacturing and installation of the equipment provided
Quick Details
|
Name
|
Automatic Filter Spraying Line |
Custom size |
Support |
| Application |
Product powder coating |
Material |
Metal / Coil |
| Advantage |
Quality assurance and price advantage |
Certification |
CE, ISO9001 |
| Condition |
Brand new |
Delivery time |
3 Days |
| Place of Origin |
Cangzhou,China |
Warranty |
1 year |
Package
Paper box package
Company introduction
Astar Machinery Co., Ltd. is a comprehensive service in production, R&D; and sales, operates mainly in electrostatic spraying equipment, including electrostatic dust elimination equipment; electrostatic flocking machine, electrostatic powder spraying machine, electrostatic liquid spray machine, electrostatic spraying gun, high voltage module, circuit board, powder barrel, powder tube, Hv cable, reciprocator, spraying room, control cabinet, oven, oven, vibration sieve, the wind leaching room, supply Gema, KCI, Wagner accessories, professional wholesale gun shell, venturi tube, powder pump, deflector, nozzle, electrode holder and other products.
