Pro Cascade Powder Coating Gm04 Gun High Voltage Replacement

Pro Cascade Powder Coating Gm04 Gun High Voltage Replacement
Pro Cascade Powder Coating Gm04 Gun High Voltage Replacement
Pro Cascade Powder Coating Gm04 Gun High Voltage Replacement Pro Cascade Powder Coating Gm04 Gun High Voltage Replacement Pro Cascade Powder Coating Gm04 Gun High Voltage Replacement Pro Cascade Powder Coating Gm04 Gun High Voltage Replacement

Large Image :  Pro Cascade Powder Coating Gm04 Gun High Voltage Replacement

Product Details:
Place of Origin: China
Brand Name: Astar
Certification: CE , ISO9001
Model Number: GM04
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Plastic bag
Delivery Time: 5 - 8 work days
Payment Terms: T/T, Western Union, L/C, D/A, D/P, T/T, MoneyGram, PayPal
Supply Ability: 100 pieces per month
Contact Now

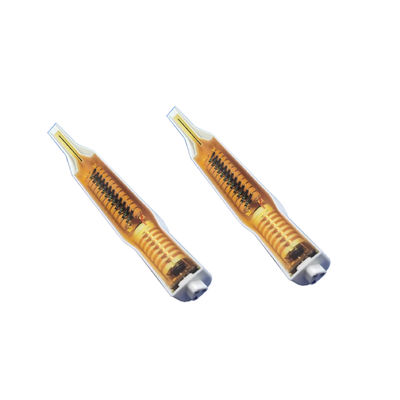

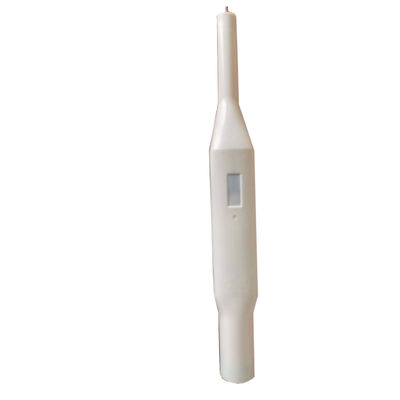

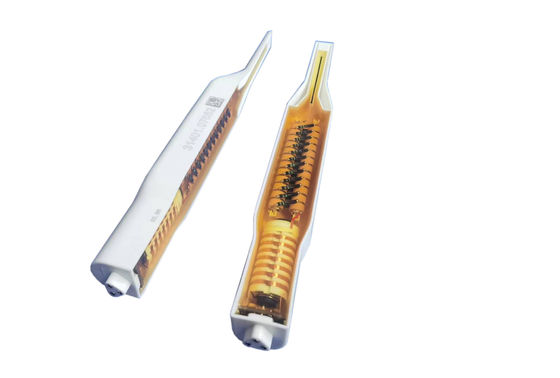

Pro Cascade Powder Coating Gm04 Gun High Voltage Replacement

Description
Name: GM04 Pro Cascade Type: Manual
Part Number: 1016 911 Rated Input Voltage: 10 V
Frequency: 18 KHz Rated Output Voltage: 100 KV
Polarity: Negative (Option - Positive) Function: High-voltage Generation
Maximum Output Current: 100 µA Warranty: 1 Year
Application: Pro GM04 Gun Color: White
Feature: Original Compatible
Highlight:

gema optiselect pro cascade powder coating

,

high voltage cascade powder coating

,

powder coating spare parts cascade

whole sale Pro GM04 Gun High viltage cascade replacement



Introduction



The control unit supplies a high-frequency low voltage signal of approx.10 V eff. This voltage is fed through the gun cable to the high voltage
cascade in the gun shaft. In the high voltage cascade, the low voltage is high-transformed in afirst step. This primary high voltage is subsequently rectified and multiplied in the high voltage cascade in a second step, until the required high voltage is obtained at the end (approx. 110 kV). The highvoltage is now fed to the electrode within the spray nozzle.

We also supply all kinds of GM03 spray gun spare parts such as gun shell, nozzle, electrode etc.


Application



Pro GM04 Gun



Quick Details



Name



 GM04  cascade Type Manual

Voltage



 10V Polarity Negative
Application Pro GM04 Gun Frequency 18 kHz
Function High-voltage supply Rated output voltage 100 kV
Maximum output current 100 µA Part number 1016911



Advantages and selling points


1. Original interchangeable
2. Stable performance and long working life
3. High technology

4. Regular stock



Package



Paper box package



Company introduction



Astar Machinery Co., Ltd. is a comprehensive service in production, R&D; and sales, operates mainly in electrostatic spraying equipment, including electrostatic dust elimination equipment; electrostatic flocking machine, electrostatic powder spraying machine, electrostatic liquid spray machine, electrostatic spraying gun, high voltage module, circuit board, powder barrel, powder tube, Hv cable, reciprocator, spraying room, control cabinet, oven, oven, vibration sieve, the wind leaching room.






Pro Cascade Powder Coating Gm04 Gun High Voltage Replacement 0





Pro Cascade Powder Coating Gm04 Gun High Voltage Replacement 1

Pro Cascade Powder Coating Gm04 Gun High Voltage Replacement 2
