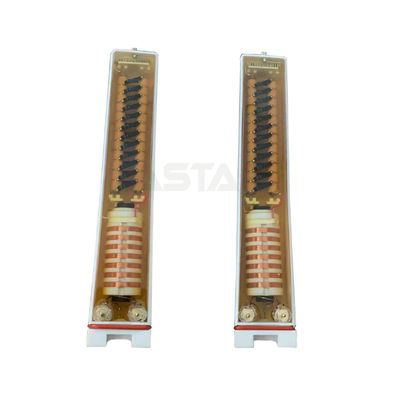

338249 338257 Pg1 Gun Cascade Powder Coating Hv Negative Or Positive Polarity

Basic Properties

Place of Origin: China

Brand Name: Astar

Certification: CE , ISO9001

Model Number: PG1

Trading Properties

Minimum Order Quantity: 1 Piece

Price: Negotiable

Payment Terms: T/T, Western Union, L/C, D/A, D/P, T/T, MoneyGram, PayPal

Supply Ability: 100 pieces per month

Automatic Cascade Powder Coating

Product Summary

338249 338257 PG1 Powder Gun Hv Cascade Negative or Positive Polarity Introduction The voltage generator module (Control module) supplies high-frequency low-voltage. This voltage is conducted by the gun cable and the gun connector in the grip to the high-voltage cascade . In the cascade this low ...

Product Details

Highlight:

gema pg1 gun cascade powder coating

,

hv cascade powder coating

Name: Hv Cascade

Type: PG1 Manual

Application: PG1 Powder Gun

Rated Input Voltage: 10 V Eff.

Frequency: 17 KHz

Rated Output Voltage: 98 KV

Polarity: Negative (Option - Positive)

HV Indication: LED

Maximum Output Current: 100 µA

Warranty: 1 Year

Product Description

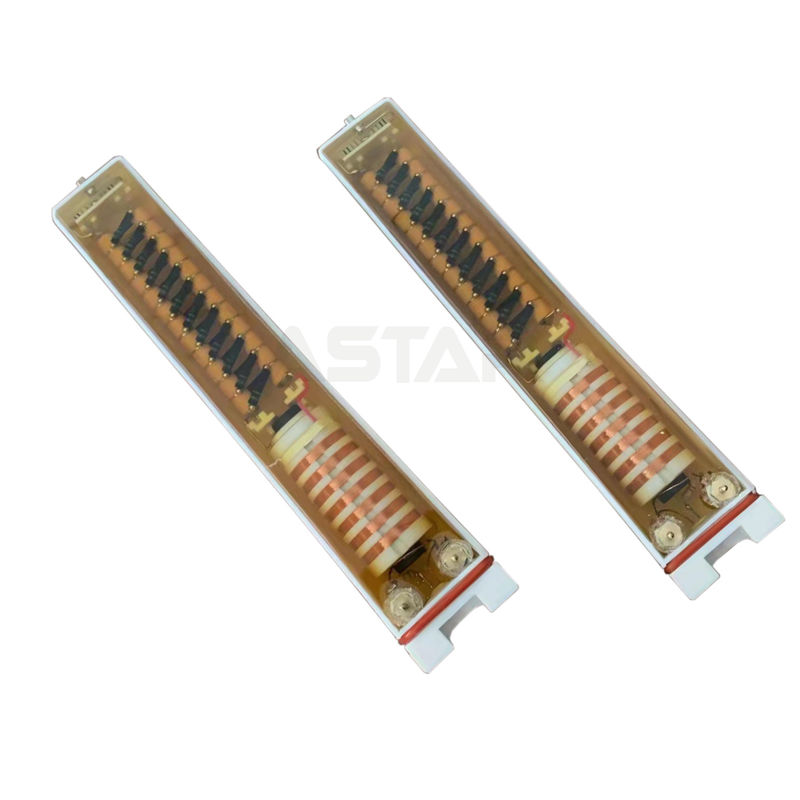

338249 338257 PG1 Powder Gun Hv Cascade Negative or Positive Polarity

Introduction

The voltage generator module (Control module) supplies high-frequency low-voltage.

This voltage is conducted by the gun cable and the gun connector in the grip to the high-voltage cascade .

In the cascade this low voltage is stepped up. This primary high-voltage is subse quently rectified and multiplied in several stages in the cascade until the required high voltage is attained.

The high-voltage is then fed from the spray nozzle to the electrode.

When the high-voltage is adjusted on the control module, the intensity of the LED also changes. The user has the assurance that high-voltage is present and can control this function.

Application

PG1 Powder Gun

Quick Details

Name	Hv cascade	Type	PG1 Manual
Voltage	10V	Polarity	Negative (Option - positive)
Application	PG1 Powder Gun	Rated input voltage	10 V eff.
Frequency	17 kHz	Rated output voltage	98 kV
Maximum output current	100 µA	Warranty	1 year

Advantages and selling points

1. Original function
2. High quality with high static
3. Original gun compatible

4. Regular stock

Package

Paper box package
