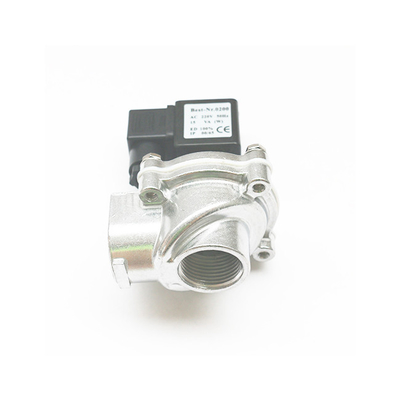

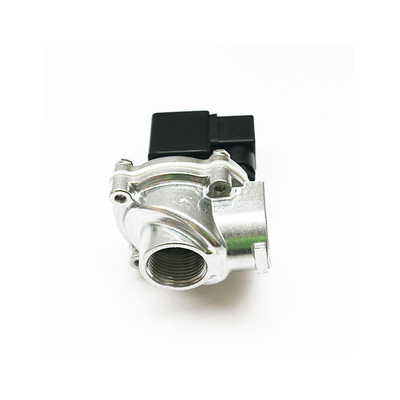

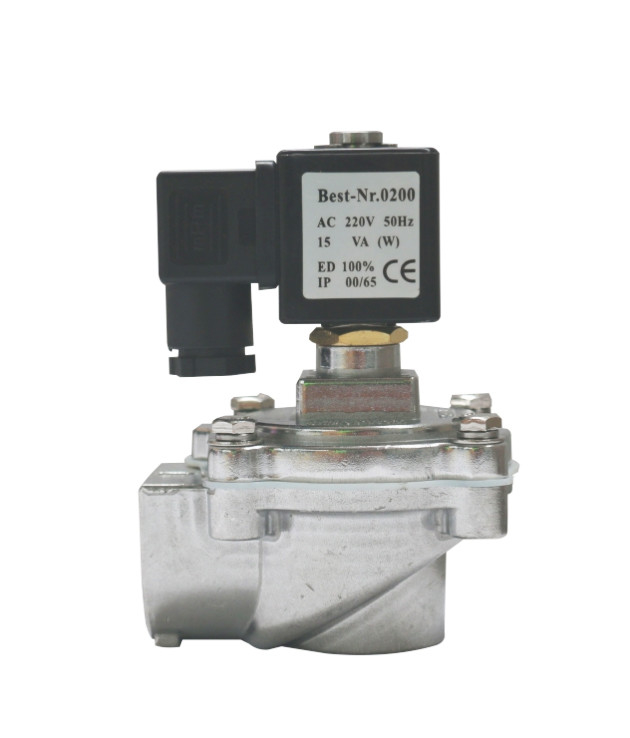

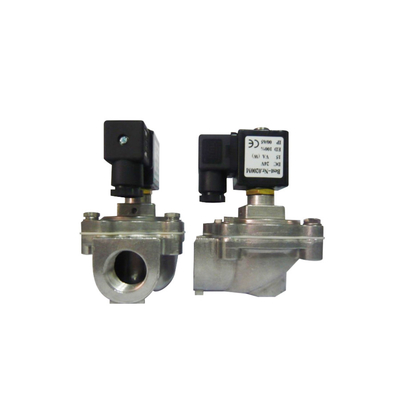

Electromagnetic Pulse Valve Powder Injection Room Accessories 24V/220V
Introduction
The diaphragm divides the pulse solenoid valve into the front and rear chambers. when the compressed air is turned on, the compressed air enters the rear air chamber through the throttle orifice. at this time, the pressure of the rear air chamber will be close to the output of the diaphragm valve, and the pulse solenoid valve is in a "closed" state.
The electric signal of the pulse injection controller makes the moving core of the pulse solenoid valve move up, the vent hole of the air chamber behind the valve opens, the pressure loss of the rear air chamber rapidly, the diaphragm moves up, the compressed air is injected through the outlet of the valve, and the pulse solenoid valve is in the "open" state.
The electric signal of the pulse injection controller disappears, the moving core of the pulse solenoid valve is reset, the vent hole of the rear air chamber is closed, the pressure of the rear air chamber is increased, the output of the diaphragm valve is tight, and the pulse solenoid valve is in a "closed" state.
Application
The right-angle pulse solenoid valve is a special solenoid valve specially designed for the matching use of the bag filter. It is the compressed air "switch" of the dust cleaning and injection system of the pulse bag filter, which is controlled by the output signal of the pulse injection controller. The filter bag is injected row by row (chamber) to keep the resistance of the dust collector within the set range, so as to ensure the treatment capacity and dust collection efficiency of the dust collector.To achieve the purpose of shaking the cloth bag to remove dust.
Quick Details
|
Name
|
Electromagnetic Pulse Valve |
Power supply voltage |
DC24Ｖ,AC220Ｖ |
|
Connection form
|
Threaded connection |
Certification |
CE, ISO9001 |
| Type |
Right-angle type |
Place of Origin |
Cangzhou, China |
| Material |
Aluminum alloy |
Delivery time |
3 Days |
| Operating temperature |
0-+60℃ |
Warranty |
1 year |
Advantages and selling points
1. Excellent material, the technology is reliable.
2. Sturdy and durable, long service life.
3. Good quality, good price and good service.
4. Easy to install.
Package
Paper box package
Company introduction

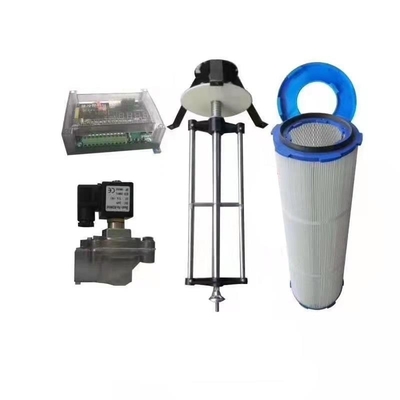

Astar Machinery Co., Ltd. is a comprehensive service in production, R&D; and sales, operates mainly in electrostatic spraying equipment, including electrostatic dust elimination equipment; electrostatic flocking machine, electrostatic powder spraying machine, electrostatic liquid spray machine, electrostatic spraying gun, high voltage module, circuit board, powder barrel, powder tube, Hv cable, reciprocator, spraying room, control cabinet, oven, oven, vibration sieve, the wind leaching room, supply Gema, KCI, Wagner accessories, professional wholesale gun shell, venturi tube, powder pump, deflector, nozzle, electrode holder and other products.
