Automatic Grain Heat Wooden Transfer Equipment 7.5KW Aluminum
Product Details
7.5KW Wooden Transfer Equipment
,Alu Wood Grain Transfer Machine
,7.5KW Wood Grain Transfer Machine
Automatic Wood Grain Heat Transfer Machine Wooden Transfer Equipment
Introduction
1. Cut the appropriate size of wood grain paper according to the size of the profile.
2. Cover the aluminum with wood grain paper, the wood grain surface of the wood grain paper touches the aluminum and put it on the silicone cloth together.
3. Close the rack, vacuum, feed the rack into the equipment for transfer.
4. After transfer, move the material truck out of the furnace.
5. Open the rack and remove the wood grain paper.

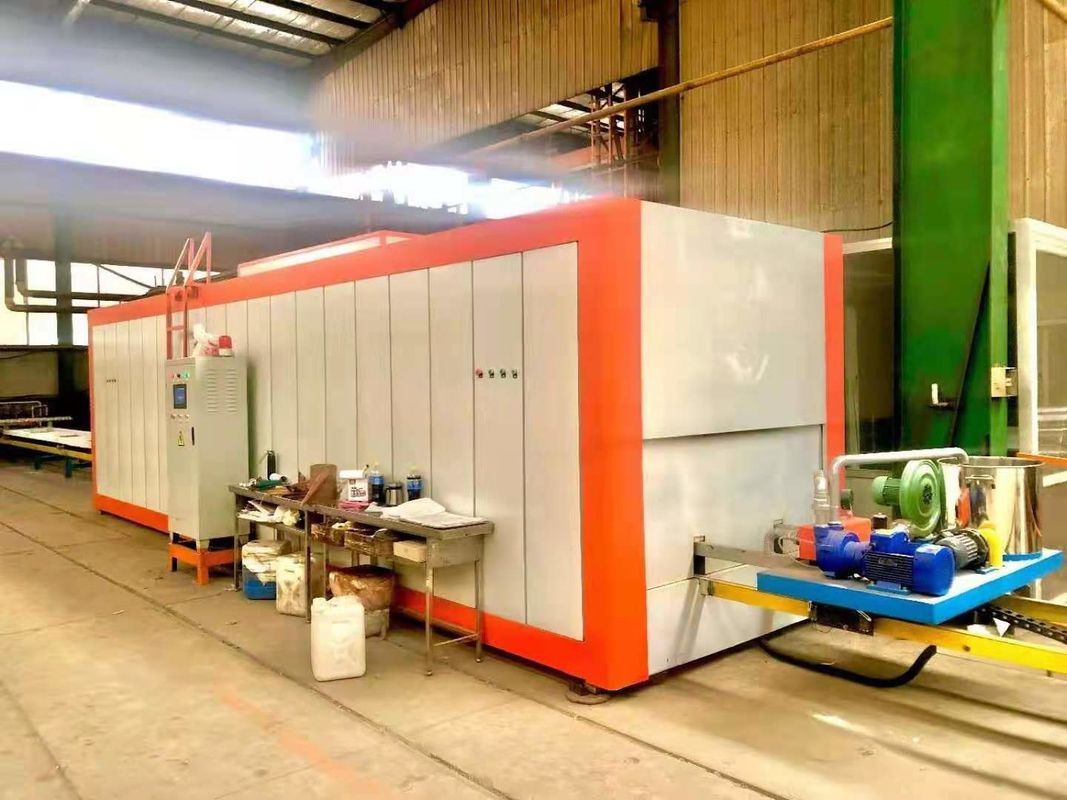

Main machine size: L8500*W2200*H2500mm.

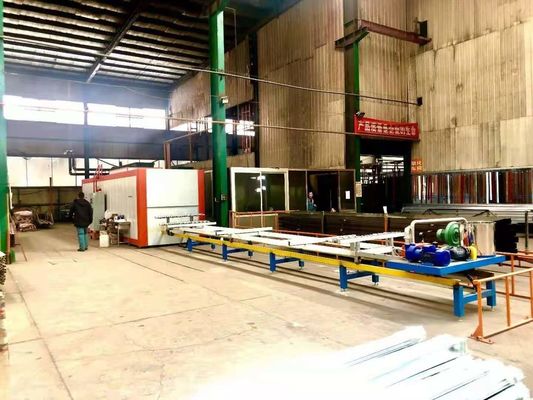

Driving vehicle size: L7000*W1500mm.
Heating cycle fan 7.5KW.
Two vacuum pumps 3KW.
Two reverse hair dryers 0.75KW.
Two drive cars 2.2KW
Fuel can choose liquefied petroleum gas, natural gas, wood chaff particles, electricity and so on.
It is suitable for materials and supplies that need to transfer wood grain.
Quick Details
|
Name |
Wooden Transfer Equipment | Brand | Astar |
|
Quality |
Good quality | Certification | CE, ISO9001 |
| Condition | Brand new | Place of Origin | Cangzhou, China |
| Advantage | The effect is excellent. | Delivery time | 3 Days |
| Application | Wood grain transfer printing | Warranty | 1 year |
Advantages and selling points
1. The performance of the equipment is stable.
2. The effect of wood grain is natural.
3. It will not change color after being used for a long time.
4. The quality is reliable.
Package
Paper box package
