Product Details:
|
Model: | TT260 | Type: | Industrial Grade Instrument |
---|---|---|---|
Working Principle: | Magnetic Induction And Eddy Current | Probe: | Magnetism F1 Eddy Current N1 |
Measuring Range: | 0-1250μm | Floor Resolution: | 0.1μm |
Power: | 2*AA Battery | Dimension(L*W*H): | 135*70*25MM |
Weight: | 320g | Probe Type: | 6 Kinds Of Replaceable |
Highlight: | TT260 Paint Thickness Gauge,1250um Paint Thickness Gauge,F1 N1 digital coating thickness meter |

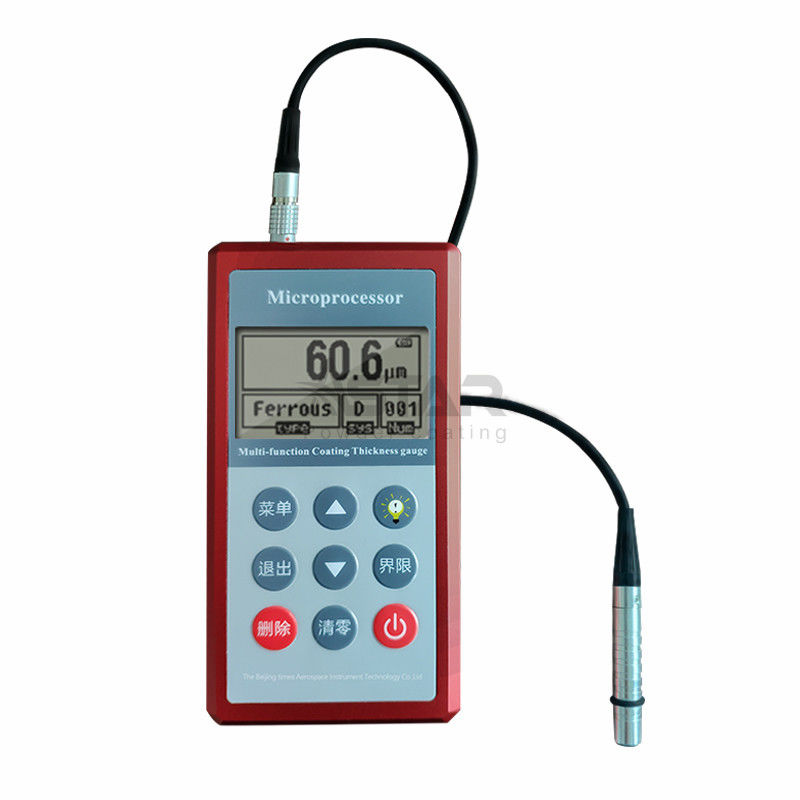

TT220 Magnetic All-In-One Machine Metal Industrial Coating Thickness Gauge
Introduction
The TT260 coating thickness gauge uses magnetic and eddy current methods to measure the thickness of non-magnetic coatings (such as chromium, zinc, copper, aluminum, enamel, rubber, paint, etc.) on magnetic metal substrates (such as steel, iron, alloy and hard magnetic steel, etc.) and non-conductive coatings (such as enamel, rubber, paint, plastic, etc.) on non-magnetic metal substrates (such as copper, aluminum, zinc, tin, etc.).
Working Principle
Magnetic method (F-type probe) when the probe is in contact with the covering layer, the probe and the magnetic metal matrix form a closed magnetic circuit. Due to the existence of the non-magnetic covering layer, the magnetoresistance of the magnetic circuit changes, and the thickness of the covering layer can be derived by measuring its change.
The eddy current method (N-type probe) uses high-frequency alternating current to generate an electromagnetic field in the coil. when the probe is in contact with the cover layer, an eddy current is generated on the metal matrix and feedback to the coil in the probe. The thickness of the cover layer can be derived by measuring the feedback effect.
Application
One machine is widely used in metal processing, automobile evaluation,aviation industry,chemical industry, ship manufacturing, galvanizing measurement and other testing fields. It is an indispensable instrument for material protection.
Quick Details
Dimension(L*W*H) | 135*70*25MM | Model | TT260 |
Type | Industrial grade instrument | Working principle | Magnetic induction and eddy current |
Power | 2*AA battery | Floor resolution | 0.1μm |
Magnetic measuring range | 0-1250μm | Probe type | 6 kinds of replaceable |
Weight | 320g | Probe | Magnetism F1 Eddy Current N1 |
Advantages and selling points
1. Light and easy to carry, work anytime and anywhere.
2. USB interface, stable transmission.
3. The aviation metal shell is sturdy and durable.
4. Dot matrix display screen, intuitive, clear and power-saving.
5. The price is good and the after-sale is good.
Package
Paper box package
