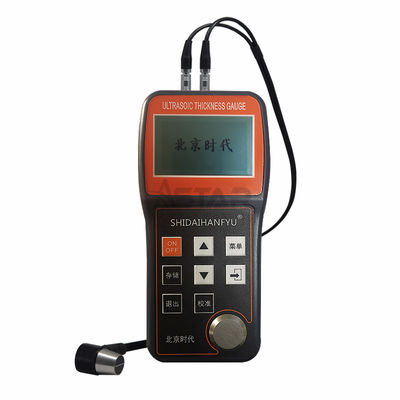

Penetration Type Through Coating Ultrasonic Thickness Gauge TT360

Penetration Type Through Coating Ultrasonic Thickness Gauge TT360
Penetration Type Through Coating Ultrasonic Thickness Gauge TT360

Large Image :  Penetration Type Through Coating Ultrasonic Thickness Gauge TT360

Product Details:
Place of Origin: China
Brand Name: Beijing Time
Certification: 3C
Model Number: TT360
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Paper box package
Delivery Time: 5-8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 100 sets per month

Penetration Type Through Coating Ultrasonic Thickness Gauge TT360

Description
Material: PVC Plastic Shell Material Model: TT360
Measuring Precision: 0.01mm Or 0.001mm Type: Coating Penetration Intelligent Type
Display: LED Liquid Crystal Display Weight: 220g
Material Temperature: 0°C - 500°C(It Depends On The Probe) Measuring Range: 0.6-400mm(Double Crystal Probe)
Power: 2* AA Battery(1.5V) Dimension(L*W*H): 150*70*35mm
Measuring Frequency: 5MHz Sound Velocity Range: 1000-9999m/s
Highlight:

TT360 ultrasonic gauge thickness tester

,

LED through coating ultrasonic thickness gauge

,

through coating ultrasonic thickness gauge

TT360 Precision Coating Penetration Type Ultrasonic Coating Thickness Gauge



Introduction



TT360 ultrasonic coating thickness Gauge is a portable ultrasonic thickness gauge.It adopts the measurement method of double crystal probe multiple echoes to "penetrate the coating", which does not need to remove the coating at the measuring point, and saves time and cost for users.



Application



It is applied to glass thickness measurement, steel wall thickness measurement, element thickness measurement, plastic thickness measurement and so on.



Quick Details



Material PVC plastic shell material Model TT360
Type Coating Penetration Intelligent type Material temperature 0°C - 500°C
Power 2*AA battery Measuring precision 0.01mm or 0.001mm
Measuring range 0.6-400MM Display LED liquid crystal display
Weight 220g Dimension(L*W*H) 150*70*35mm



Advantages and selling points



1. Penetrate the coating to save time and cost.
2. Industrial grade special instrument.
3. Easy to carry.
4. The measured value does not jump.



Package



Paper box package



Company introduction



Astar Machinery Co., Ltd. is a comprehensive service in production, R&D; and sales, operates mainly in electrostatic spraying equipment, including electrostatic dust elimination equipment; electrostatic flocking machine, electrostatic powder spraying machine, electrostatic liquid spray machine, electrostatic spraying gun, high voltage.
