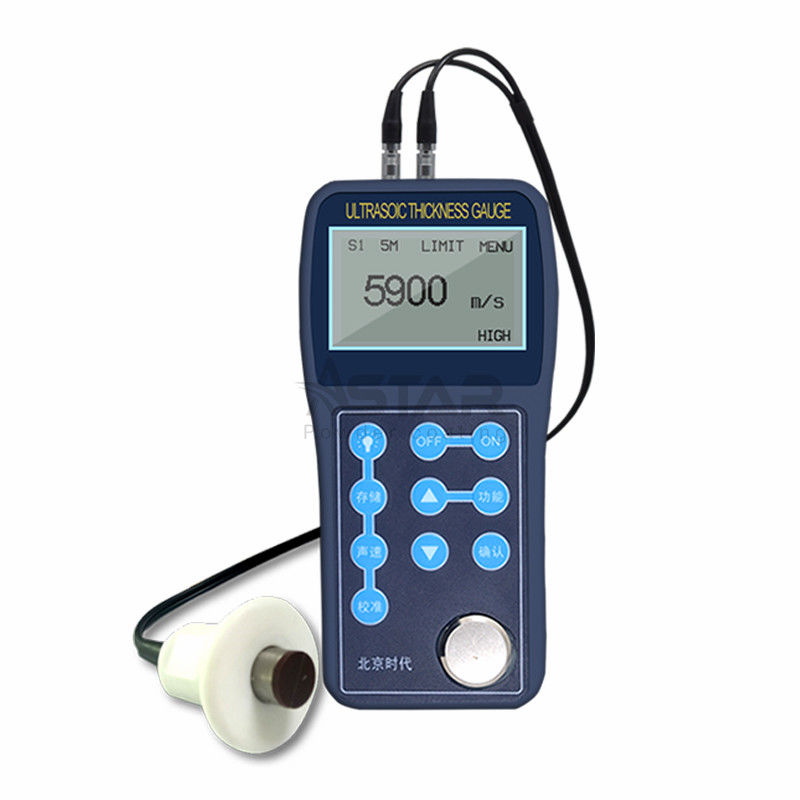

Intelligent TT320 Digital Ultrasonic Thickness Meter
Product Details
digital ultrasonic thickness meter
,Intelligent digital ultrasonic thickness meter
,TT320 ultrasonic thickness measurement device
TT320 300°C Resistant Intelligent Type Ultrasonic Coating Thickness Gauge
Introduction
The TT320 Intelligent high temperature type ultrasonic thickness gauge measures the thickness according to the ultrasonic pulse reflection principle. When the ultrasonic pulse emitted by the probe reaches the material interface through the measured object, the pulse is reflected back to the probe. The thickness of the material to be measured is determined by accurately measuring the time of ultrasonic propagation in the material.
Application
All kinds of materials that can make ultrasonic wave propagate in its interior at a constant speed can be measured by this ultrasonic thickness meter, such as metal, plastic, ceramic, glass, all kinds of plates and machined parts.
Quick Details
| Type | Ultrasonic coating thickness gauge | Model | TT320 |
| Selectable frequency | 5P, 7P, ZW | Material temperature | -10°C - 300°C |
| Power | 2*AA battery | Measuring precision | 0.01mm |
| Measuring range | 0.75-300MM | Display | LED liquid crystal display |
| Weight | 150g | Dimension(L*W*H) | 150*70*35mm |
Advantages and selling points
1.The utility model has the advantages of simple operation, fast measurement, accuracy and durability.
2.RS 232interface, which is convenient for computer data exchange.
3.LED LCD backlight display screen, the backlight is bright and convenient to use in all kinds of light.
4.PVC plastic button film, high temperature resistance, chemical corrosion resistance.
5.Standard Φ 10 side head, which can measure the thickness of metal coating such as copper, iron, zinc and so on.
Package
Paper box package
