TT130 0.01mm Ultrasonic Coating Thickness Gauge
Product Details
0.01mm ultrasonic coating thickness gauge
,TT130 ultrasonic coating thickness gauge
,ultrasonic thickness gauge for plastic

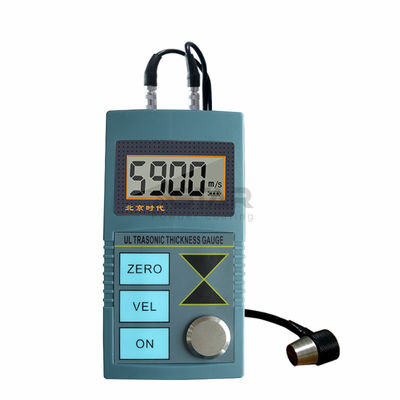

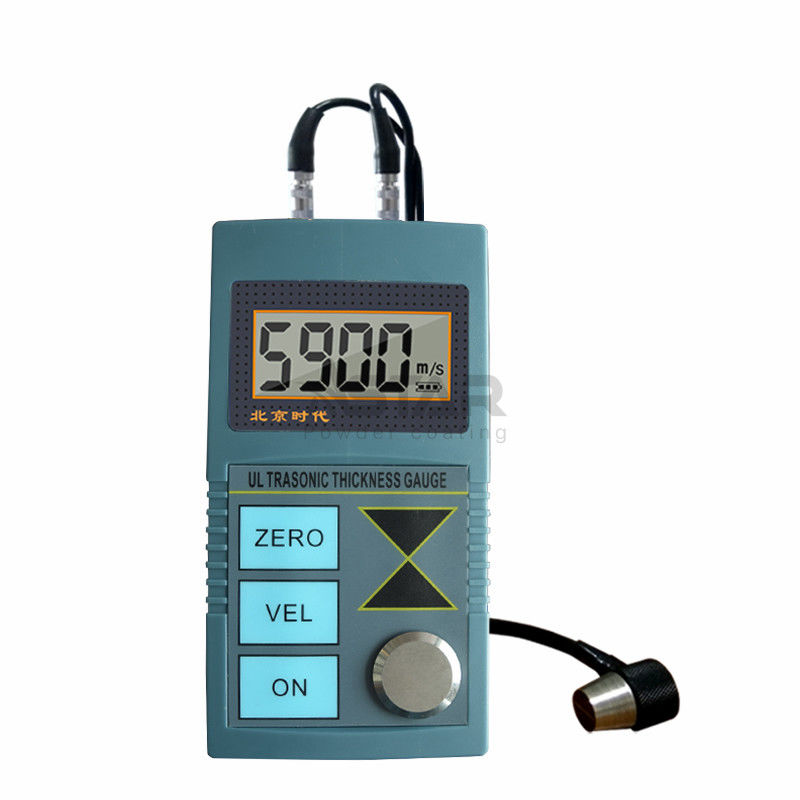

TT130 Precision 0.01mm Configuration Ultrasonic Coating Thickness Gauge
Introduction
The TT130 ultrasonic thickness gauge measures the thickness according to the ultrasonic pulse reflection principle. When the ultrasonic pulse emitted by the probe reaches the material interface through the measured object, the pulse is reflected back to the probe. The thickness of the material to be measured is determined by accurately measuring the time of ultrasonic propagation in the material.
Application
All kinds of materials that can make ultrasonic wave propagate in its interior at a constant speed can be measured by this ultrasonic thickness meter, such as metal, plastic, ceramic, glass, all kinds of plates and machined parts.
Quick Details
| Type | Ultrasonic coating thickness gauge | Model | TT130 |
| Operating time | Can operate continuously for 250 hours (2*AA battery) | Material temperature | -10°C - 60°C |
| Power | 2*AA battery | Resolution | 0.01mm |
| Measuring range | 0.75-300MM | Display | LCD Four-bit liquid crystal display |
| Weight | 170g | Dimension(L*W*H) | 126*66*27mm |
Advantages and selling points
1.Large flat panel keys for simple and convenient operation.
2.Large screen shows higher light transmittance.
3.High precision probe, plug and play.
4.Automatic hibernation, automatic shutdown.
Package
Paper box package
