1000049 NF08 PTFE Flat Jet Spray Nozzle For Gm01 Gm02 And Ga02

1000049 NF08 PTFE Flat Jet Spray Nozzle For Gm01 Gm02 And Ga02
1000049 NF08 PTFE Flat Jet Spray Nozzle For Gm01 Gm02 And Ga02

Large Image :  1000049 NF08 PTFE Flat Jet Spray Nozzle For Gm01 Gm02 And Ga02

Product Details:
Place of Origin: China
Brand Name: Astar
Certification: CE , ISO9001
Model Number: 1000049
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Plastic bag
Delivery Time: 5 - 8 work days
Payment Terms: T/T, Western Union, L/C, D/A, D/P, T/T, MoneyGram, PayPal
Supply Ability: 100 pieces per month

1000049 NF08 PTFE Flat Jet Spray Nozzle For Gm01 Gm02 And Ga02

Description
Part Number: 1000049 Type: Flat
Size: Standard Material: PTFE
Application: Gema GM02/GA02 Powder Coating Gun Feature: Durable
Brand: Astar Electrode Holder: 1000055
Openning: Flat Components: Electrode Holder
Highlight:

1000049 NF08 flat jet nozzle

,

PTFE flat jet spray nozzle

,

NF08 flat jet spray nozzle

Stable 1000049 NF08 PTFE Flat Jet Nozzle For Gm01 Gm02 And Ga02​



Introduction


 It is made by PTFE material and suitable for powder coating tools.

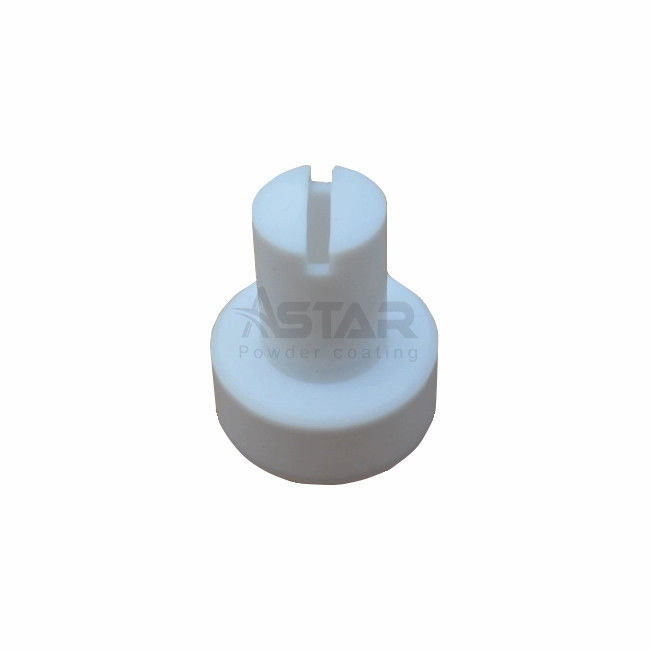

Flat jet nozzle with vented central electrode. The vented flat jet nozzle serves for the atomizing and charging of the powder. The powder cloud obtains an oval spray pattern by the slot-shaped opening. The powder is charged by the central electrode. The high voltage, which is created in the gun cascade, is conducted through the black contact ring of the nozzle holder to the central electrode. In order to prevent a powder sintering on the electrode, this is rinsed with compressed air during spraying procedure. Therefore, the rinsing air is fed through the small hole in the black contact ring of the nozzle holder into the electrode attachment. The rinsing air adjustment on the control module is explained in the corresponding operating manual.



Application



Gema GM02/GA02 powder coating gun



Quick Details



Model


1000049 Feature Durable

Type

Flat  Brand Astar
Size Standard Electrode Holder 1000055
Material PTFE Openning Flat
Application Gema GM01, GM02 and GA02 powder coating gun Components Electrode holder



Advantages and selling points


1. A class PTFE material
2. Durable and long working life
3. Safe and non-toxic

4. Standard size



Package



Paper box package



Company introduction



Astar Machinery Co., Ltd. is a comprehensive service in production, R&D; and sales, operates mainly in electrostatic spraying equipment, including electrostatic dust elimination equipment; electrostatic flocking machine, electrostatic powder spraying machine, electrostatic liquid spray machine, electrostatic spraying gun, high voltage module, circuit board, powder barrel, powder tube, Hv cable, reciprocator, spraying room, control cabinet, oven, oven, vibration sieve, the wind leaching room, supply Gema, KCI, Wagner accessories, professional wholesale gun shell, venturi tube, powder pump, deflector, nozzle, electrode holder and other products.
