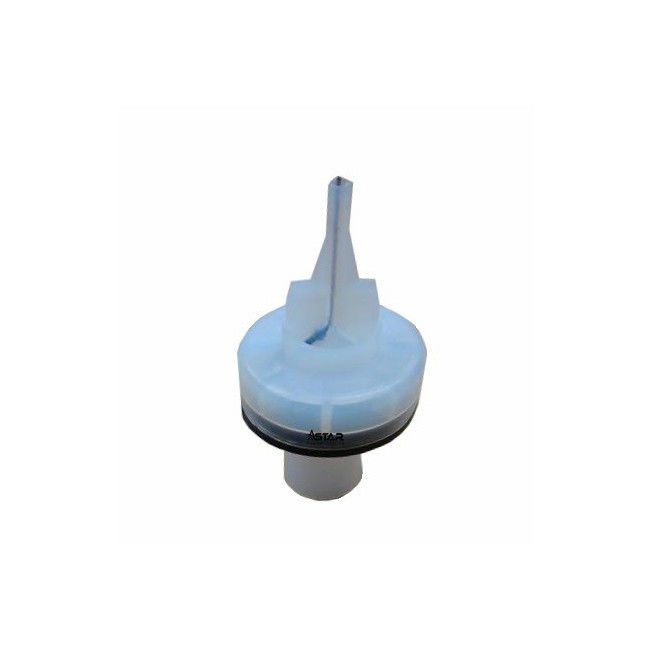

1000055 NF08 PTFE Flat Electrode Holder For Gm01 Gm02 And Ga02
Introduction
It is made by PTFE material and suitable for powder coating tools.
Flat jet nozzle with vented central electrode. The vented flat jet nozzle serves for the atomizing and charging of the powder. The powder cloud obtains an oval spray pattern by the slot-shaped opening. The powder is charged by the central electrode. The high voltage, which is created in the gun cascade, is conducted through the black contact ring of the nozzle holder to the central electrode. In order to prevent a powder sintering on the electrode, this is rinsed with compressed air during spraying procedure. Therefore, the rinsing air is fed through the small hole in the black contact ring of the nozzle holder into the electrode attachment. The rinsing air adjustment on the control module is explained in the corresponding operating manual.
Application
GM02/GA02 powder coating gun
Quick Details
|
Model
|
1000055 |
Feature |
Durable |
|
Type
|
Flat |
Brand |
Astar |
| Size |
Standard |
Flat nozzle |
1000049 |
| Material |
PTFE |
Openning |
Flat |
| Application |
GM01, GM02 and GA02 powder coating gun |
Components |
Electrode holder |
Advantages and selling points
1. A class PTFE material
2. Durable and long working life
3. Safe and non-toxic
4. Standard size
Package
Paper box package
