Product Details:
|
| Voltage: | 100V - 240V | Power Consumption: | 140VA |
|---|---|---|---|
| Size: | 600 * 743 *1070 | Weight: | 45KG |
| Powder Output: | 450g / Min | Cable Length: | 7M |
| Hopper Size: | 60L | Air Pressure: | 0.5Mpa |
| Frequency: | 50 / 60 Hz | Type Of Machine: | Hopper Type |
| Feature: | Stable Control | Warranty: | 1 Year |
| Highlight: | GX 7800S Electrostatic Powder Coating Machine,450g/min Electrostatic Powder Coating Machine,GX 7800S manual coating equipment |
||

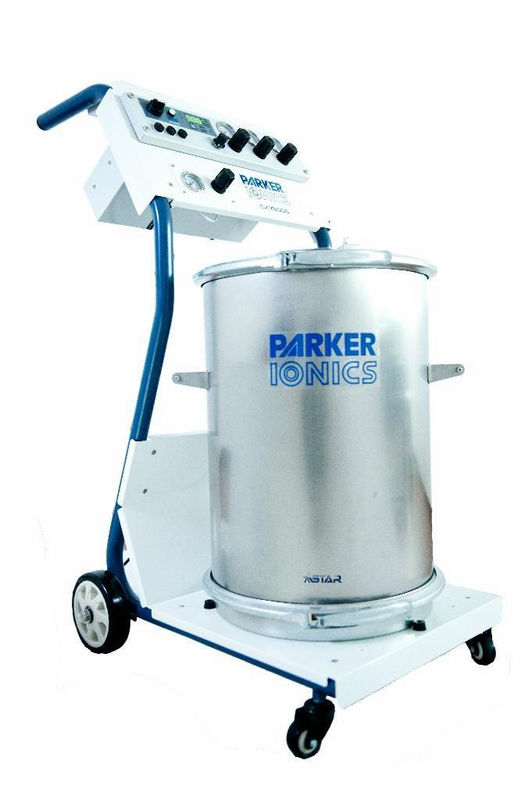

Japan Parker Ionics Gx-7800S Electrostatic Manual Powder Coating Machine
Introduction
The Parker gx-7800 powder electrostatic spraying machine imported from Japan has all the advanced means used in the spraying equipment in the world today: important light spraying (only 480g), built-in detachable high-voltage module, unique two-way central gas design, two-way flow meter to display the powder supply status, All stainless steel powder feeding barrel and compact controller push gx7800 to the top of manual equipment. There are three kinds of dispersive powder guide bodies with different diameters, a 3.5m long powder conveying pipe, a cable connecting the controller and a central air pipe for manual powder spraying. All stainless steel powder supply barrel, movable cover, bottom fluidization. Strong and flexible cart can quickly change the spraying position
Working principle
Electrostatic spray gun is a method that takes the ground coating as the positive electrode, and the coating atomizing device as the negative electrode, and takes the coating atomizing device with high negative voltage to make the electrostatic boundary between the two electrodes, so that the atomized coating particles are negatively charged, and the coating is effectively absorbed on the surface of the opposite electrode, which is called electrostatic coating.
Quick Details
|
Voltage |
100V - 240V | Hopper size | 60L |
|
Frquency |
50Hz /60 Hz | Type of machine | Hopper type |
| Power Consumption | 140VA | Feature | Stable control |
| Air pressure | 0.5 Mpa | Size | 600 * 743 *1070 |
| Cable length | 7M | Weight | 45KG |
Advantages and selling points
Package
Cartoon package
Company introduction
Astar Machinery Co., Ltd. is a comprehensive service in production, R&D; and sales, operates mainly in electrostatic spraying equipment, including electrostatic dust elimination equipment; electrostatic flocking machine, electrostatic powder spraying machine, electrostatic liquid spray machine, electrostatic spraying gun, high voltage module, circuit board, powder barrel, powder tube, Hv cable, reciprocator, spraying room, control cabinet, oven, oven, vibration sieve, the wind leaching room, supply Gema, KCI, Wagner accessories, professional wholesale gun shell, venturi tube, powder pump, deflector, nozzle, electrode holder and other products.
