Manual Electrostatic Powder Coating Oven , Industrial Paint Curing Oven
Product Details

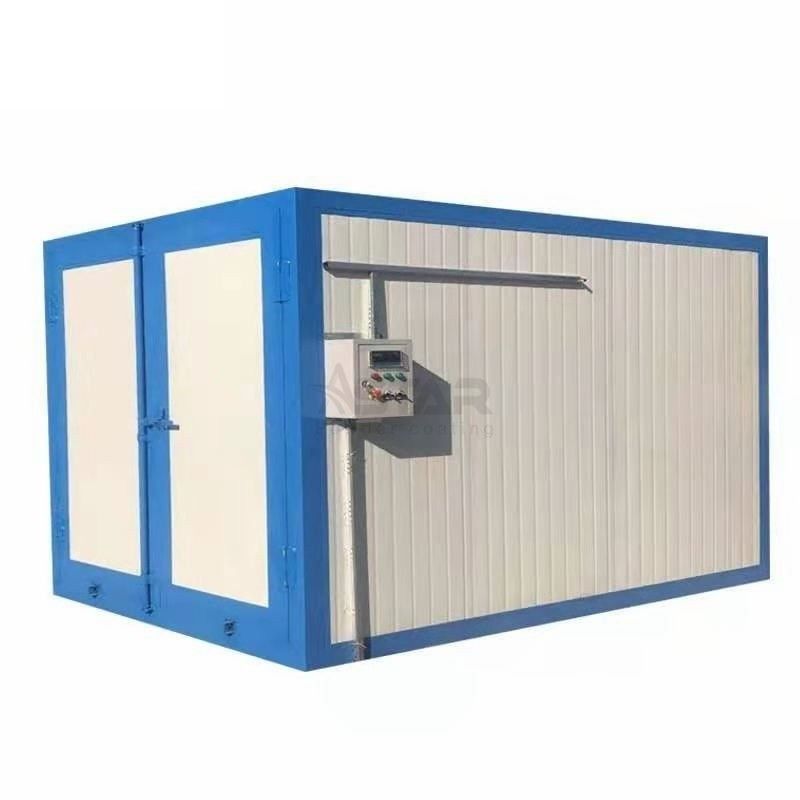

Manual electrostatic powder coating oven
,electrostatic powder coating oven
,1.05m3 industrial paint curing oven
Industrial Curing Oven For Manual Electrostatic Powder Coating Line
Application
The shell is made of 1.5 mm thick cold plate, the surface is anti-corrosion, anti-rust, evenly divided into four layers, the bottom is equipped with a guide rail, easy to oven work pieces in and out, smooth operation, to ensure that the work pieces do not fall.
The material of inner liner is 1. MM thick zinc plate made, thermal insulation layer using 100mm thick high-temperature silicate thermal insulation rock wool, door side to add high-temperature sealing Silica Gel, so that the outside temperature is not too hot .
Funtion
Temperature Room temperature to 300 °C adjustable, function PID control, automatic constant temperature, automatic timing, temperature to a fixed time alarm power cut, over-temperature power cut, double temperature controller control, with over-temperature upper limit temperature controller, to prevent the temperature controller out of control and damage to its products, leakage protection, motor overload protection and other functions.
Quick Details
| Product Name | Industrial Curing Oven | Color | Customized |
| Operation Method |
Manual |
Heating power | 12KW |
| Application | Manual electrostatic powder coating line | Weight | 500 KG |
| Outer Size | 1000 * 1150 * 1950 | Temperature | 230 degree |
| Inner Size | 800 * 800 * 1600 | Volume | 1.05 m³ |
Advantages and selling points
1. Stable structure
2. The temperature is uniform and increases rapidly
3. Good heat preservation effect and low running cost
4. Size is customized
Package
Cartoon package
Company introduction
Astar Machinery Co., Ltd. is a comprehensive service in production, R&D; and sales, operates mainly in electrostatic spraying equipment, including electrostatic dust elimination equipment; electrostatic flocking machine, electrostatic powder spraying machine, electrostatic liquid spray machine, electrostatic spraying gun, high voltage module, circuit board, powder barrel, powder tube, Hv cable, reciprocator, spraying room, control cabinet, oven, oven, vibration sieve, the wind leaching room, supply Gema, KCI, Wagner accessories, professional wholesale gun shell, venturi tube, powder pump, deflector, nozzle, electrode holder and other products.
-
