Big Cyclone Recovery Separator Powder Recovery System

Name: Big Cyclone Recovery Separator Powder Recovery System
Brand: Cangzhou Astar Machinery Co., Ltd.
SKU: AS-7500
Price: 2,351.00 USD
Availability: InStock

Basic Properties

Place of Origin: China

Brand Name: Astar

Certification: CE , ISO9001

Model Number: AS-7500

Trading Properties

Minimum Order Quantity: 1 set

Price: Negotiable

Payment Terms: T/T, Western Union, , L/C, paypal, D/A, D/P, MoneyGram

Supply Ability: 10 sets per month

28000m3/h powder recovery system

Central powder feed center

Electrostatic powder feed center

Product Summary

Big Cyclone Recovery Separator Of Electrostatic Powder Coating Line Introduction The function of the cyclone separator is to separate the recovered powder from the transmission air. The air powder mixture extracted from the spray chamber is sent to the cyclone separator. The powder particles with ...

Product Details

Highlight:

Big Cyclone Cyclone Separator

,

Automatic powder recovery system

,

28000m3/h powder recovery system

Name: Big Cyclone Recovery Equipment

Method: Automatic Powder Recovery

Application: Electrostatic Powder Coating

Airflow Speed: 15000 - 28000 M³/ H

Powder Recovery Rate: 95%

Speed To Change Color: 9 Minutes

Feature: Fast Cleaning

Quality: A Class

Warranty: 1 Year

Certificate: CE, ISO9001

Product Description

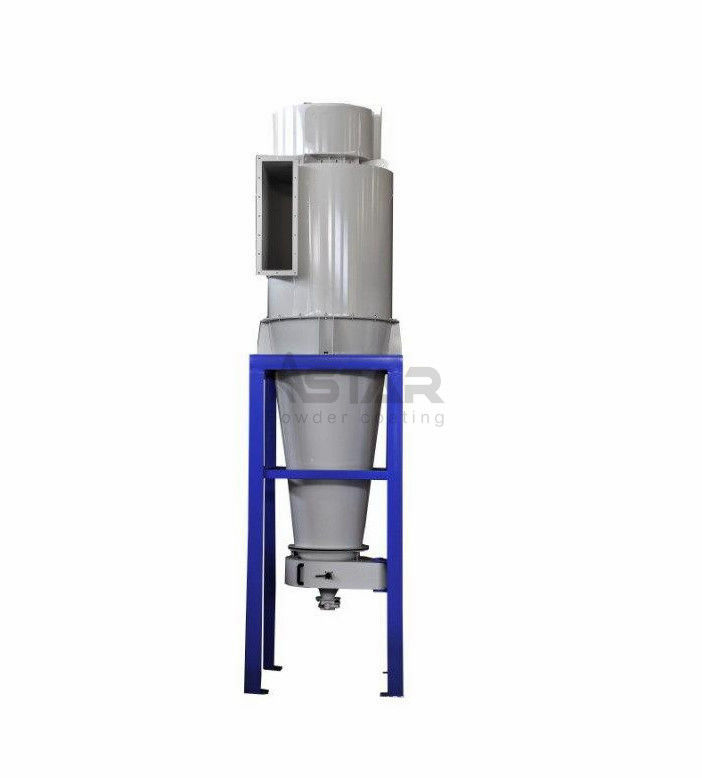

Big Cyclone Recovery Separator Of Electrostatic Powder Coating Line

Introduction

The function of the cyclone separator is to separate the recovered powder from the transmission air. The air powder mixture extracted from the spray chamber is sent to the cyclone separator. The powder particles with large weight are centrifuged to the wall of cyclone separation, and then fall into the lower powder screen. The impurities are screened out, and the qualified powder re enters the powder circuit for further use. The cyclone separator is more suitable for fast color changing spraying.

Feature

The utility model has the outstanding advantages of easy color change, high recovery efficiency, small floor area and simple installation. The powder recovery rate can reach more than 98% with the two-stage recovery system of cyclone and filter element. The powder is separated in the small cyclone, falls into the powder bucket at the bottom, and then is sent to the powder feeding cylinder for recycling. The filter element is equipped with a continuously adjustable pulse back blowing device, and the compressed air is continuously injected from the inside to the outside according to the set pulse interval and pulse width, so that the filter element can be cleaned and the recovery effect is effectively ensured. The new type of back blowing rotary blade is a kind of back blowing device driven by air pressure, which is combined with the filter element to achieve better recovery effect.

Application

The products are mainly used in radiator, household appliances, automobile, motorcycle, bicycle, building aluminum profile, steel and wood furniture, elevator, sewing machine, oil pipeline and instrument and other industries

Quick Details

Name	Big Cyclone Recovery Equipment	Feature	Fast cleaning
Method	Automatic Powder Recovery	Quality	A class
Application	Electrostatic powder coating	Warranty	1 year
Airflow speed	15000 - 28000 m³/ h	Speed to change color	9 minutes
Powder recovery rate	95%	Certificate	CE, ISO9001

Advantages and selling points

1. The two-stage cyclone recovery system is adopted, which is one of the fast color change recovery systems recognized in China.
2. The small powder collecting hopper under the big cyclone is of sliding and translational type, which is convenient for cleaning.
3. The spray room adopts the arc top structure, which is easy to clean and conducive to smooth air flow.
4. The position of the cone bucket under the big cyclone is high, which is convenient for the cleaning personnel to stand under the big cyclone for cleaning.

Package

Wooden package or soft package
