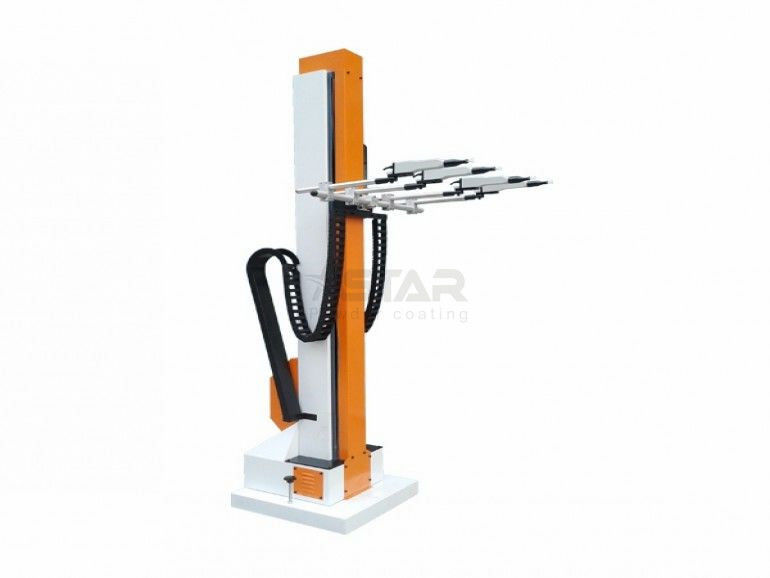

Customized Stroke Vertical Reciprocator For Electrostatic Powder Coating

Customized Stroke Vertical Reciprocator For Electrostatic Powder Coating
Customized Stroke Vertical Reciprocator For Electrostatic Powder Coating

Large Image :  Customized Stroke Vertical Reciprocator For Electrostatic Powder Coating

Product Details:
Place of Origin: China
Brand Name: Astar
Certification: CE , ISO9001
Model Number: AS310
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package or sofe package
Delivery Time: 30-45 days
Payment Terms: T/T, Western Union, , L/C, paypal, D/A, D/P, MoneyGram
Supply Ability: 10 sets per month

Customized Stroke Vertical Reciprocator For Electrostatic Powder Coating

Description
Material: Steel, Chian Name: Reciprocator
Type: Automatic Moving Method: Vertical Moving
Size: Customized Stroke Color: Yellow And White
Certificate: CE, ISO9001 Number Of Automatic Gun: Customized
Power: AC220V 50-60Hz Feature: Stable
Highlight:

Vertical reciprocator

,

Astar Stroke Vertical reciprocator

,

Astar Stroke Reciprocator

Customized Stroke Vertical Reciprocator Of Electrostatic Powder Coating



Introduction



Vertical reciprocator is a special lifting equipment used in painting or powder coating. It is a whole lifting equipment composed of lifting platform, operation control equipment, motor, cable and other auxiliary devices.



Working principle

The hydraulic pressure oil depends on the vane pump to generate the corresponding pressure. After filtering the oil device, isolating the explosion type electromagnetic installation direction valve, throttle valve, liquid control one-way valve and balance valve, the oil enters into the bottom of the hydraulic cylinder, so that the piston of the hydraulic cylinder can move upward and lift the weight, The return oil of the upper part of the hydraulic cylinder returns to the oil tank through the isolation explosion type electromagnetic switching direction valve. Its rated working pressure is adjusted by the overflow valve, and the value is read by checking the pressure gauge. The piston of the hydraulic cylinder moves downward, that is, to let the weight fall down. The hydraulic oil flows into the upper part of the hydraulic cylinder through the explosion proof electromagnetic switching direction valve, and the return oil from the lower part of the hydraulic cylinder returns to the oil tank through the balance valve, the hydraulic control one-way valve, the throttle valve and the explosion proof electromagnetic switching direction valve. In order to make the heavy object fall smoothly and brake safely, a balance valve is set on the oil return road to balance the circuit and maintain the pressure, so that the falling speed will not be changed by the weight of the heavy object. The throttle valve adjusts the flow and controls the lifting speed of the elevator.

Application

This product is widely used in powder coating automobile, aluminum profile, all kinds of hardware, furniture, etc


Quick Details



Material Steel, chian Color Yellow and white
Name Reciprocator Certificate CE, ISO9001
Type Automatic Number of Automatic gun​ Customized
Moving method Vertical moving Power AC220V 50-60Hz
Size Customized stroke Feature Stable



Advantages and selling points



1. There are multiple memory programs and itineraries, which can be automatically selected according to different production conditions.

2. Stepless speed regulation, accurate adjustment of spraying parameters
3. The turning point and dwell time can be selected according to the working height.
4. Microprocessor controller ensures accurate positioning.
5. It is easy to program, which brings great convenience for operation.
6. Self coating effect, providing high-grade product quality.
7. The most handy control means of high efficiency automatic production.
8. No wear, three-phase motor drive, simple maintenance, low cost.



Package



Wooden package or soft package



Company introduction



Astar Machinery Co., Ltd. is a comprehensive service in production, R&D; and sales, operates mainly in electrostatic spraying equipment, including electrostatic dust elimination equipment; electrostatic flocking machine, electrostatic powder spraying machine, electrostatic liquid spray machine, electrostatic spraying gun, high voltage.








Precision  300°C resistant TT120 Ultrasonic coating thickness gauge 0



Customized Stroke Vertical Reciprocator For Electrostatic Powder Coating 1
Customized Stroke Vertical Reciprocator For Electrostatic Powder Coating 2
