Product Details:
|
| Product Name: | K3 Electrostatic Powder Coating Machine | Voltage: | 110V / 220V |
|---|---|---|---|
| Control Voltage Of Solenoid Valve: | 24V DC | Input Power: | 40W |
| Input Air Pressure: | 0.4-1Mpa | Powder Output: | 600g Per Minute |
| Output Air Pressure: | 0.5Mpa Max. | Output Voltage: | 95KV Max. |
| Gas Consumption: | 0.4Mpa | Output Current: | 150uA Max. |
| Function: | Three Modes Coating | Display Mode: | Digital Display |
| Warranty: | 1 Year | Delivery Time: | 3 Days |
| Highlight: | CE Electrostatic Powder Coating Machine,K3 Electrostatic Powder Coating Machine,600g/min manual powder coating system |
||

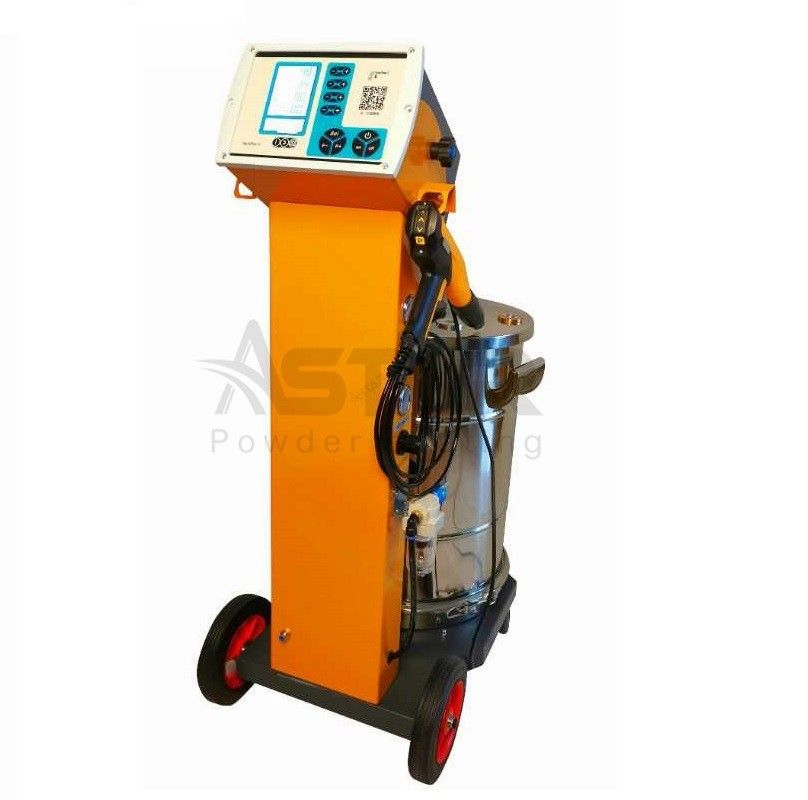

K3 High Powder Loading Rate Manual Electrostatic Powder Coating Machine
Application
Widely used in auto parts, hardware machinery, metal products, hardware accessories, chassis cabinet and other fields
Working principle
Electrostatic powder coating machine is an industrial equipment used for surface treatment of objects. It can spray powder coatings containing epoxy resin, polyester resin (plastic) and other materials onto the objects. The sprayed objects are solidified in the fixed telephone furnace to obtain a complete layer, so as to play the functions of decoration and anti-corrosion. The principle of electrostatic spraying technology: the powder coating is sprayed on the surface of the workpiece with electrostatic spraying equipment (electrostatic spraying machine). Under the action of electrostatic, the powder will be evenly adsorbed on the surface of the workpiece to form a powdery coating; the powdery coating is baked and leveled at high temperature to form a final coating with different effects (different kinds of effects of powder coating); the spraying effect is Mechanical strength, adhesion, corrosion resistance, aging resistance and other aspects are better than the painting process, and the cost is also lower than the same effect of painting. Process name, process objectives, tasks and detailed steps, relevant equipment and materials
Quick Details
|
Voltage |
110V / 220V | Output air pressure | 0.5Mpa Max. |
|
Control voltage of solenoid valve |
24V DC | Output voltage | 95KV Max. |
| Input power | 40W | Gas consumption | 13.2m / h ( 0.4Mpa ) |
| Input air pressure | 0.4-1Mpa | Function | Three modes coating |
| Output air pressure | 600g / min | Feature | Digital display |
Advantages and selling points
Package
Cartoon package
Company introduction
Astar Machinery Co., Ltd. is a comprehensive service in production, R&D; and sales, operates mainly in electrostatic spraying equipment, including electrostatic dust elimination equipment; electrostatic flocking machine, electrostatic powder spraying machine, electrostatic liquid spray machine, electrostatic spraying gun, high voltage module, circuit board, powder barrel, powder tube, Hv cable, reciprocator, spraying room, control cabinet, oven, oven, vibration sieve, the wind leaching room, supply Gema, KCI, Wagner accessories, professional wholesale gun shell, venturi tube, powder pump, deflector, nozzle, electrode holder and other products.
