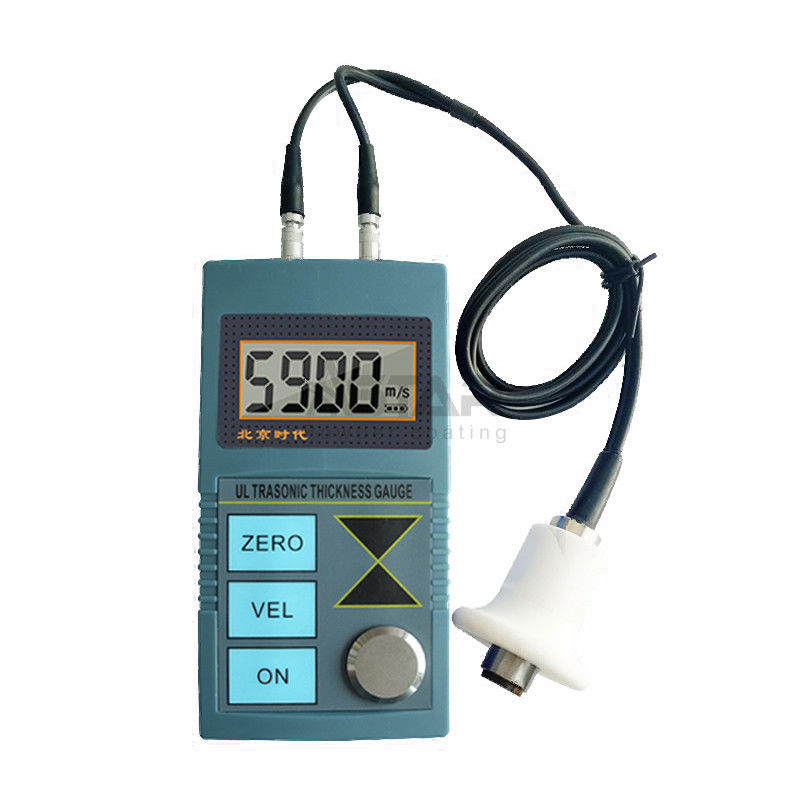

0.05mm TT120 Ultrasonic Thickness Measuring Instrument

0.05mm TT120 Ultrasonic Thickness Measuring Instrument
0.05mm TT120 Ultrasonic Thickness Measuring Instrument

Large Image :  0.05mm TT120 Ultrasonic Thickness Measuring Instrument

Product Details:
Place of Origin: China
Brand Name: Beijing Time
Certification: 3C
Model Number: TT120
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Paper box package
Delivery Time: 5-8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 100 sets per month

0.05mm TT120 Ultrasonic Thickness Measuring Instrument

Description
Type: Ultrasonic Coating Thickness Gauge Model: TT120
Accuracy Class: 0.05mm Feature: LCD Display, High Temperature Type 300 ℃
Material Temperature: -10°C - 300°C Power: 2*AA Battery
Resolution: 0.01mm Weight: 170g
Dimension(L*W*H): 126*66*27mm Measuring Range: 0.8-300MM
Display: LCD
Highlight:

TT120 ultrasonic thickness measuring instrument

,

0.05mm ultrasonic thickness measuring instrument

,

LCD digital ultrasonic thickness gauge

Precision 300°C resistant TT120 Ultrasonic coating thickness gauge



Introduction



TT120 ultrasonic thickness measuring instrument according to the ultrasonic pulse reflection principle to measure the thickness, when the probe emitted ultrasonic pulse through the measured object to the material interface, the pulse is reflected back to the probe, by accurately measuring the ultrasonic wave propagation time in the material to determine the thickness of the material to be measured.



Application


TT120 ultrasonic thickness gauge can measure the thickness of any ultrasonic good conductor material, such as metal, plastic, ceramic, glass.



Quick Details



Type Ultrasonic coating thickness gauge Model TT120
Accuracy class 0.05mm Material temperature -10°C - 300°C
Power 2*AA battery Resolution 0.01mm
Measuring range 0.8-300MM Display LCD
Weight 170g Dimension(L*W*H) 126*66*27mm



Advantages and selling points



1. Automatic zero check
2. Coupling State Hint
3. High precision
4. Automatic shutdown



Package



Paper box package
