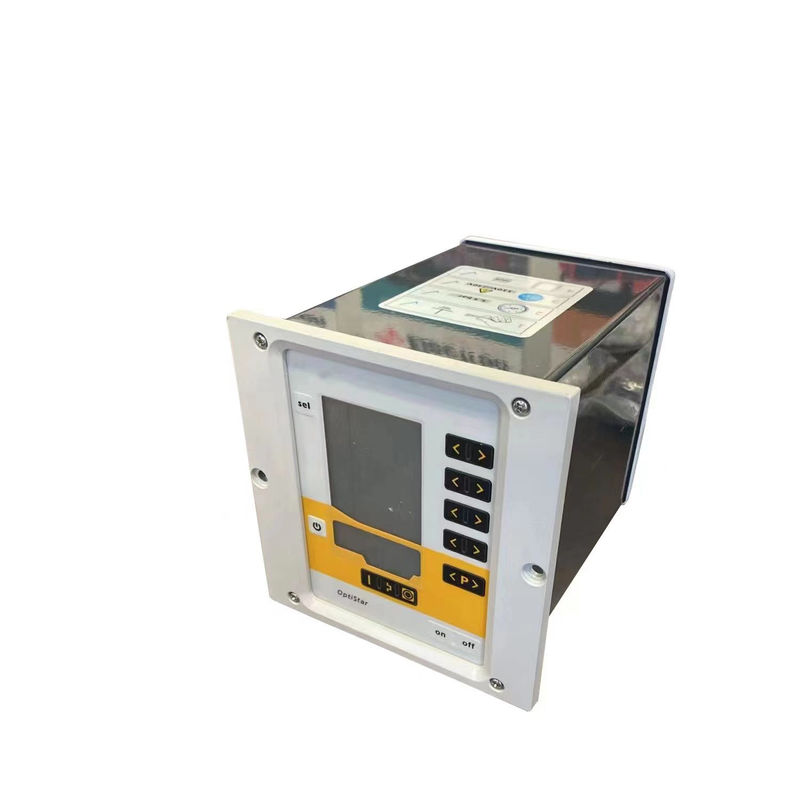

CG13 complete manual compatible Controller For Powder Coating Replacement
Basic Properties
Place of Origin:
China
Brand Name:
ASTAR
Certification:
CE
Model Number:
CG13
Trading Properties
Minimum Order Quantity:
1
Price:
Negotiable
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Product Summary
CG13 Complete Manual Compatible Controller For Powder Coating Replacement Introduction The CG13 powder coating machine operates on the principle of electrostatic adsorption. The electrostatic powder spray gun generates high voltage at its front end when powered, causing the powder to become ...
Product Details
Highlight:
manual powder coating controller
,Gema Optistar CG13 replacement
,powder coating machine controller
Name:
CG13 Compatible Manual Compatible Controller
Part Number:
1009971
Application Mode:
Flat Parts, Complex Parts And Overcoated
Size:
173mm * 250mm * 177mm
Weight:
3.7KG
Nominal Input Voltage:
100-240 VAC
Frequency:
50-60 Hz
Connected Load:
40VA
Nominal Output Voltage To The Gun:
12V
Nominal Output Current To The Gun:
1.2A
Max Pressure:
10 Bar
Min Pressure:
5.5 Bar
Product Description
CG13 Complete Manual Compatible Controller For Powder Coating Replacement
Introduction
The CG13 powder coating machine operates on the principle of electrostatic adsorption. The electrostatic powder spray gun generates high voltage at its front end when powered, causing the powder to become negatively charged as it's sprayed. The charged powder is then blown onto the positively charged workpiece surface by high-pressure air, creating an even, uniform coating thickness as the charge repels excess powder.
Advantages of Electrostatic Powder Coating
- Superior working environment: Significantly reduces paint mist diffusion compared to conventional spraying methods
- High material efficiency: Achieves 85-90% paint utilization with minimal rebound or waste
- Exceptional finish quality: Produces uniform, flat coatings with excellent adhesion and gloss
- Enhanced productivity: Supports continuous production lines with conveyor speeds up to 24m/min
Technical Specifications
| Name | CG13 Compatible Manual Compatible Controller |
|---|---|
| Part Number | 1009971 |
| Application Mode | Flat parts, complex parts and overcoated |
| Nominal Input Voltage | 100-240 VAC |
| Frequency | 50-60 Hz |
| Connected Load | 40VA |
| Nominal Output Voltage to Gun | 12V |
| Nominal Output Current to Gun | 1.2A |
| Max Pressure | 10 bar |
| Min Pressure | 5.5 bar |
Key Features
- Intelligent control system for precise operation
- Ergonomic design for comfortable use
- User-friendly interface minimizes operator errors
- Optimized powder flow with strong electrostatic charge
- High powder loading rate for efficient coating
- Environmentally friendly with reduced pollution
- Consistent film performance across applications
- Comprehensive after-sales support
Packaging
Securely packaged in protective paper box
Manufacturer Information
Astar Machinery Co., Ltd. specializes in electrostatic spraying equipment including complete systems and components. Our product range includes electrostatic dust elimination equipment, spraying machines, guns, high voltage modules, and replacement parts.
