391530 Powder Injector IG02 Release Coupling
Product Details
391530 Optiflow Powder Injector
,gema ig02
,Gema Powder Coating Gun Spare Parts

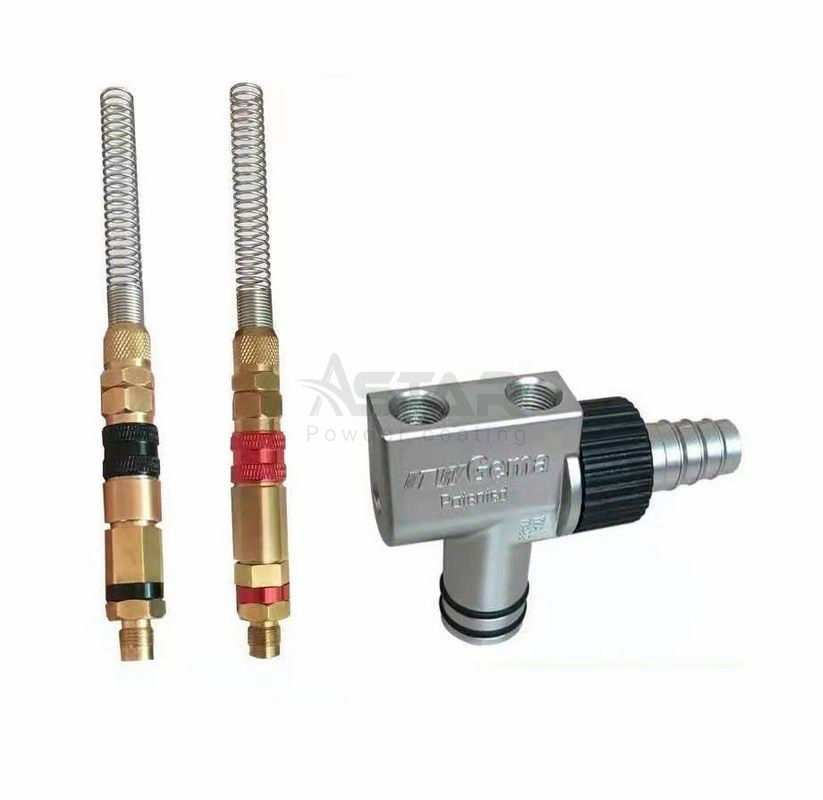

IG02 Zinc Alloy Quick Release Coupling 391530 Powder Injector
Introdction
IG02 powder injector is a classic powder pump.Its meticulous internal structure makes the control of powder output more refined, which is suitable for high standard spraying operation.
Application
The injector is used to convey normal organic powders between the powder hopper and the powder gun. The injector is supplied with a PTFE insert sleeve as standard. The plug-in injector allows fast cleaning and easy handling because it can be detached from the powder hopper without using any tools. All connections are plug-in and not interchangeable (when using in manual equipment).
Principle Of The Injector
If air flows through the nozzle into the cavity, a vacuum is created in the cavity . This vacuum causes powder to be drawn up the suction tube and into the cavity. A powder/air mixture is created. The forward air velocity at the nozzle conveys the powder/air mixture through to the powder hose to the gun.
Quick Details
|
Material
|
Zinc Alloy | Converying air nozzle | 1.6mm |
|
Model
|
IG02 | Part number | 391530 |
| Application | Convey Normal Organic Powders | Powder hose Φ | 11mm |
| Advantages | Stable And High Efficiency | Powder hose Length | Adjustable |
| Feature | Sustained And Stable Powder Output | Input pressure | 5.0 Bar |
Advantages And Selling Points
1. Sustained And Stable Powder Output
2. Plug-in components and disassembled structure
3. Quick cleaning and easy handling
4. Widely used in a wide range of fields
5. All accessories are replaceable
6.Zinc alloy material is durable
Schematic Diagram Of Working Principle
-
