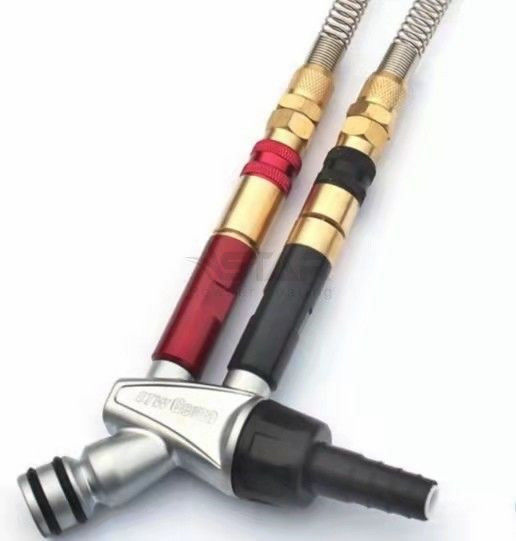

1007780 IG06 Injector For Powder Coating Machine
Product Details
1007780 IG06 Gema Injector
,Gema IG06 Injector
,gema optiflex injector
Zinc Alloy Material IG06 OptiFlow Powder Injector Part Number 1007780
Introdction
IG06 Optiflow powder injector is the latest type product. The feature is stable powder output and all pulg-in disassembled structure. All connections are plug-in types and not interchangeable.The injector can be disassembled without special tools. It's very easy to clean and easy to handle.
Field of Application
The OptiFlow injector is used for conveying normal organic powders between the powder hopper and the powder gun. The injector is supplied with a PTFE insert sleeve as standard. The OptiFlow Injector is a plug-in type and permits easy handling and quick cleaning. All connections are plug-in types. The injector can be disassembled without special tools.
Working Principle
When air flows through a nozzle into a cavity with an attached outlet in the continuation of the airflow, a vacuum will be created in the cavity
This effect is used now for aspirating powder through a suction opening - a powder/air mixture will be created.
Quick Details
|
Material
|
Zinc Alloy | Converying air nozzle | 1.6mm |
|
Model
|
IG06 | Part number | 1007780 |
| Application | Powder Coating Machine | Powder hose Φ | 11mm |
| Feature | Stable Powder Output | Powder hose Length | Adjustable |
| Characteristics | Quick Cleaning and Easy Handling | Input pressure | 5.0 Bar |
Advantages and selling points
1. Stable powder ouput
2. Plug-in components and disassembled structure
3. Durable material
4. Wide range of applications
5. All accessories are replaceable.
-
