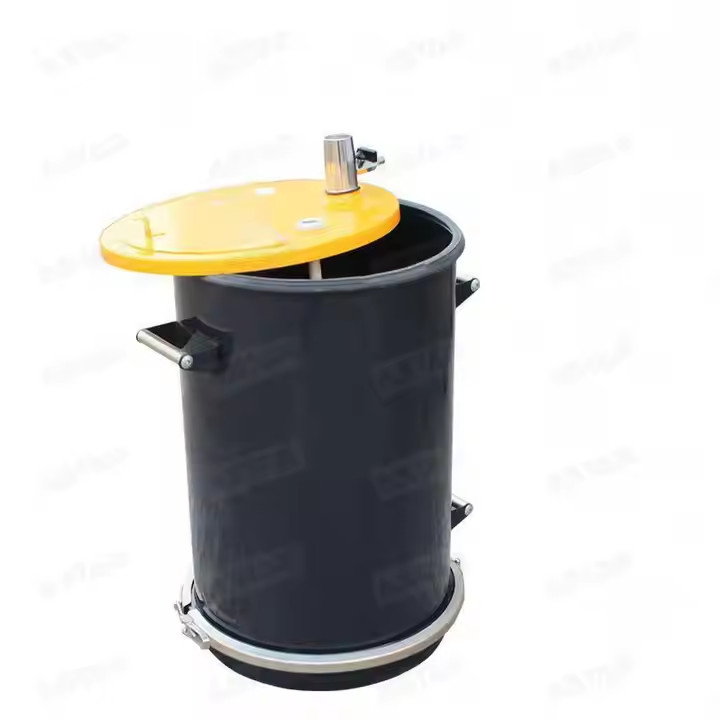

1007130 Complete Powder Hopper For Gema 2F Powder Coating Machine

1007130 Complete Powder Hopper For Gema 2F Powder Coating Machine
1007130 Complete Powder Hopper For Gema 2F Powder Coating Machine 1007130 Complete Powder Hopper For Gema 2F Powder Coating Machine 1007130 Complete Powder Hopper For Gema 2F Powder Coating Machine 1007130 Complete Powder Hopper For Gema 2F Powder Coating Machine

Large Image :  1007130 Complete Powder Hopper For Gema 2F Powder Coating Machine

Product Details:
Place of Origin: China
Brand Name: Astar
Certification: CE, ISO9001
Model Number: 1007130
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5 - 8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now

1007130 Complete Powder Hopper For Gema 2F Powder Coating Machine

Description
Type: Powder Coating Machine Model Number: 1007130
Shape: Cylindrical Cut Type: Single Cut
Model Number: IG07 - PA Technic: Plating
Material: SS304 Stainless Steel Size: 420mm*420mm*600mm
Highlight:

Gema 2F Powder Hopper

,

1007130 Powder Hopper

,

Complete Powder Hopper

1007130 Complete Powder Hopper For Gema 2F Powder Coating Machine



Product Description


1007130 Complete Powder Hopper For Gema 2F Powder Coating Machine 01007130 Complete Powder Hopper For Gema 2F Powder Coating Machine 1

1000617 Complete Back Cover for Select Gm02 Manual Powder Coating Gun.It more suitable for profiles or flat parts powder coating. The size and material can completely work with Gema GA03 and GM03 electrostatic powder coating guns.



Product Features
*Brand
Astar
*Name

1007130 Complete Powder Hopper for Gema 2F Powder Coating Machine
*Material
SS304 Stainless Steel
*Size
420mm*420mm*600mm
*Weight
15KG
*Process
Seamless welding
*Dimension(l*w*h)
420mm*420mm*600mm


*Capacity
55L




1007130 Complete Powder Hopper For Gema 2F Powder Coating Machine 2







1007130 Complete Powder Hopper For Gema 2F Powder Coating Machine 3

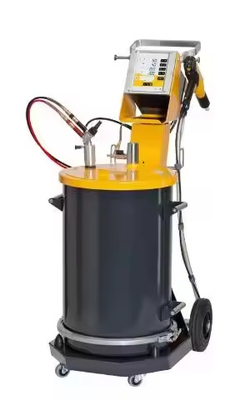

Flex 2 F –Spare parts list
1
Star CG13 gun control unit –complete (see corresponding operating manual)
1009 971
2
GM03 manual powder gun –complete (see corresponding user manual)
1008 070
3
Flow IG06 injector –complete (see correspondinguser manual)
1007 780
4
Pneumatic connection for conveying air –complete (incl. Pos. 4.1, 4.2, 4.3)

4.1
Quick release connection –NW5, Ø 8 mm, red
261 645
4.2
Nut with kink protection –M12x1 mm, Ø 8 mm
201 316
4.3
Plastic tube –Ø 8/6 mm, red
103 500*
5
Pneumatic connection for supplementary air –complete (incl. Pos. 5.1, 5.2 and 5.3)

5.1
Quick release connection –NW5, Ø 8 mm, black
261 637
5.2
Nut with kink protection –M12x1 mm, Ø 8 mm
201 316
5.3
Plastic tube –Ø 8/6 mm, black
1008 038*
6
PowerClean module** –complete (See operating instructions Select GM03 manual powder gun)
1007 362
7
Pneumatic connection for PowerClean air** –complete (incl. Pos. 7.1 and 7.2)

7.1
Quick release connection** –NW5, Ø 8 mm
1008 027
7.2
Hose** –Ø 8/6 mm, black
103 152*
8
Powder hopper –complete (without pos. 3)
1007 130
9
Pneumatic connection for conveying air –complete (incl. Pos. 9.1, 9.2 and 9.3)

9.1
Quick release connection –NW5, Ø 6 mm
200 840
9.2
Nut with kink protection –M10x1 mm,Ø 6 mm
201 308
9.3
Plastic tube –Ø 6/4 mm, black
1001 973
10
Pneumatic group –complete (see corresponding spare parts list)

11
Quick release connection –NW7,8-Ø 10-Ø 26 mm
239 267
12
Airmover –complete
1002 043
13
Rubber buffer –Ø 35x40 mm, M8 mm
211 664
14
Powder hose –Ø 15/10 mm, 6 m
1001 673*#
15
Short description
1007 143
16
Operating manual
1007 142







Company introduction

Astar Machinery Co., Ltd. is a comprehensive service in production, R&D; and sales, operates mainly in electrostatic spraying equipment, including electrostatic dust elimination equipment; electrostatic flocking machine, electrostatic powder spraying machine, electrostatic liquid spray machine, electrostatic spraying gun, high voltage module, circuit board, powder barrel, powder tube, cable, reciprocator, spraying room, control cabinet, oven, vibration sieve, air shower, gun shell, venturi tube, powder pump, deflector, nozzle, electrode holder and other products. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electrostatic powder coating and other industries.

Our products are widelyrecognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customersfrom all walks of life to contact us for future business relationships and mutual success!

1007130 Complete Powder Hopper For Gema 2F Powder Coating Machine 4
