Gema 1006531 10-12 Mm Complete Hose Connection Including O - Ring 1006483 Threaded Sleeve Of IG06 Powder Injector

Gema 1006531 10-12 Mm Complete Hose Connection Including O - Ring 1006483 Threaded Sleeve Of IG06 Powder Injector
Gema 1006531 10-12 Mm Complete Hose Connection Including O - Ring 1006483 Threaded Sleeve Of IG06 Powder Injector Gema 1006531 10-12 Mm Complete Hose Connection Including O - Ring 1006483 Threaded Sleeve Of IG06 Powder Injector Gema 1006531 10-12 Mm Complete Hose Connection Including O - Ring 1006483 Threaded Sleeve Of IG06 Powder Injector Gema 1006531 10-12 Mm Complete Hose Connection Including O - Ring 1006483 Threaded Sleeve Of IG06 Powder Injector

Large Image :  Gema 1006531 10-12 Mm Complete Hose Connection Including O - Ring 1006483 Threaded Sleeve Of IG06 Powder Injector

Product Details:
Place of Origin: China
Brand Name: Astar
Certification: CE, ISO9001
Model Number: 1006531 1006483
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5 - 8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now

Gema 1006531 10-12 Mm Complete Hose Connection Including O - Ring 1006483 Threaded Sleeve Of IG06 Powder Injector

Description
Model Number: 1006531 1006483 Type: Powder Coating Machine
Weight (kg): 0.25 Video Outgoing-inspection: Provided
Machinery Test Report: Provided Dimension(l*w*h): Standard
Application: Powder Coating Machine
Highlight:

IG06 Powder Injector Complete Hose Connection

,

1006483 Threaded Sleeve

,

1006531 Complete Hose Connection

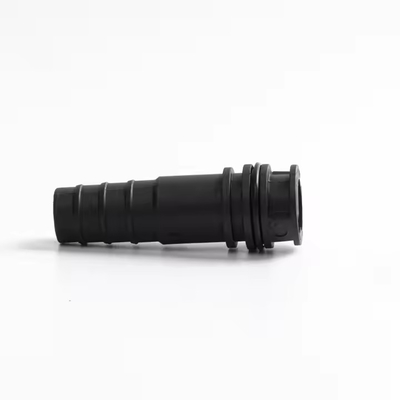

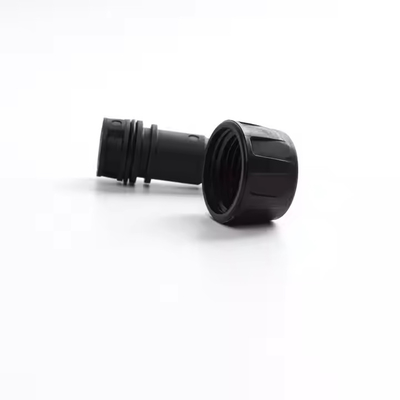

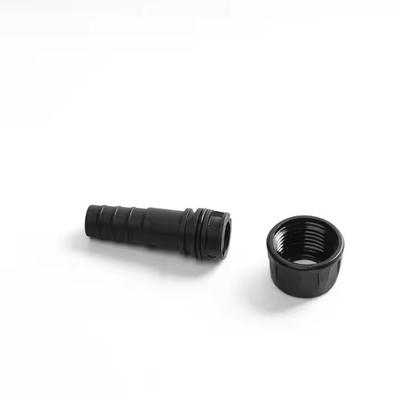

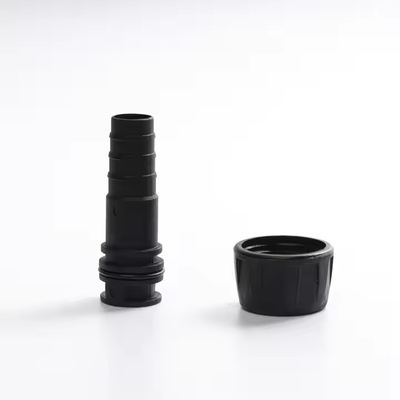

Gema 1006531 10-12 mm Complete Hose Connection Including O - Ring 1006483 Threaded Sleeve of IG06 Powder Injector



Product Description

1006531 10-12 mm Complete Hose Connection Including O - Ring 1006483 Threaded Sleeve of IG06 Powder Injector.It more suitable for profiles or flat parts powder coating. The size and material can completely work with Gema GA03 and GM03 electrostatic powder coating guns.

Gema 1006531 10-12 Mm Complete Hose Connection Including O - Ring 1006483 Threaded Sleeve Of IG06 Powder Injector 0

Gema 1006531 10-12 Mm Complete Hose Connection Including O - Ring 1006483 Threaded Sleeve Of IG06 Powder Injector 1



Gema 1006531 10-12 Mm Complete Hose Connection Including O - Ring 1006483 Threaded Sleeve Of IG06 Powder Injector 2

Gema 1006531 10-12 Mm Complete Hose Connection Including O - Ring 1006483 Threaded Sleeve Of IG06 Powder Injector 3

Powder injector (type IG06)

Flow IG06 Powder injector - complete (pos. 1-13)
1007 780
A
Conveying air check valve unit (red marking) - complete (incl. pos. 6, 8, 9 and 12)
1005 589
B
Supplementary air check valve unit (black marking) - complete (incl. pos. 7, 8, 9 and 13)
1005 590
C
Injector body - complete (incl. pos. 1, 2, 10 and 11)
1006 530
1
Injector body (without pos. 2)
1006 484
2
O-ring - Ø 16x2 mm
1007 794#
3
Insert sleeve - PTFE, complete
1006 485#
4
Hose connection - Ø 10-12 mm, complete (incl. pos 4.1)
1006 531
4.1
O-ring - Ø 16x1.5 mm
205 141#
5
Threaded sleeve
1006 483
6
Connector (conveying air) - NW 5.5
1004 366
7
Connector (supplementary air) - NW 5.5
1004 367
8
O-ring-Ø11x1.5mm
1000 532#
9
Filterelement-Ø9/4x27mm
1003 698#
10
Nozzle
1006 488
11
Nozzlefixation-complete(incl.pos.11.1)
1007 792
11.1
O-ring - Ø 8x1 mm
1007 793#
12
Body (red)
1004 369
13
Body (black)
1004 370
16
Conveying air hose - Ø 8/6 mm (red)
103 500*
17
Supplementary air hose - Ø 8/6 mm (black)
103 756*
18
Quick release coupling for conveying air hose - NW5-Ø 8 mm
261 645
19
Quick release coupling for supplementary air hose - NW5-Ø 8 mm
261 637

Powder hose - 66 type, POE, Ø 16/11 mm, with conductive strip (standard)
105 139*#

Powder hose - 74 type, POE, Ø 15/10 mm, with conductive strip
1001 673*#

Powder hose - 75 type, POE, Ø 18/12 mm, with conductive strip
1001 674*#



Gema 1006531 10-12 Mm Complete Hose Connection Including O - Ring 1006483 Threaded Sleeve Of IG06 Powder Injector 4

Gema 1006531 10-12 Mm Complete Hose Connection Including O - Ring 1006483 Threaded Sleeve Of IG06 Powder Injector 5Gema 1006531 10-12 Mm Complete Hose Connection Including O - Ring 1006483 Threaded Sleeve Of IG06 Powder Injector 6
