Gema 1006484 IG06 Powder Injector Body For Powder Coating

Gema 1006484 IG06 Powder Injector Body For Powder Coating
Gema 1006484 IG06 Powder Injector Body For Powder Coating Gema 1006484 IG06 Powder Injector Body For Powder Coating Gema 1006484 IG06 Powder Injector Body For Powder Coating Gema 1006484 IG06 Powder Injector Body For Powder Coating

Large Image :  Gema 1006484 IG06 Powder Injector Body For Powder Coating

Product Details:
Place of Origin: China
Brand Name: Astar
Certification: CE, ISO9001
Model Number: 1006484
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5 - 8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now

Gema 1006484 IG06 Powder Injector Body For Powder Coating

Description
Model Number: 1006484 Name: Insert Sleeve - PTFE, Complete
Overall Length: Standard Shape: Cylindrical
Size: Standard Material: PTFE
Highlight:

IG06 Powder Injector Body

,

Powder Coating Powder Injector Body

,

Gema Powder Injector Body

Gema 1006484 IG06 Powder Injector Body for Powder Coating



Product Description




Gema 1006484 IG06 Powder Injector Body For Powder Coating 0Gema 1006484 IG06 Powder Injector Body For Powder Coating 1Gema 1006484 IG06 Powder Injector Body For Powder Coating 2

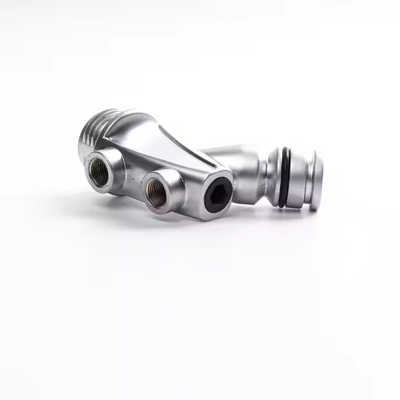

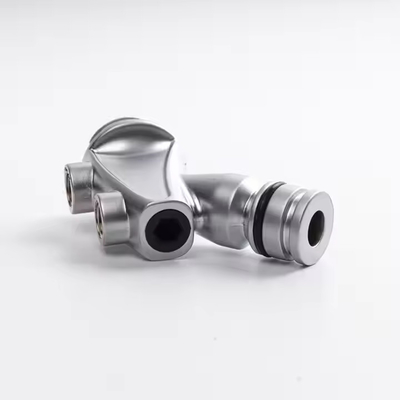

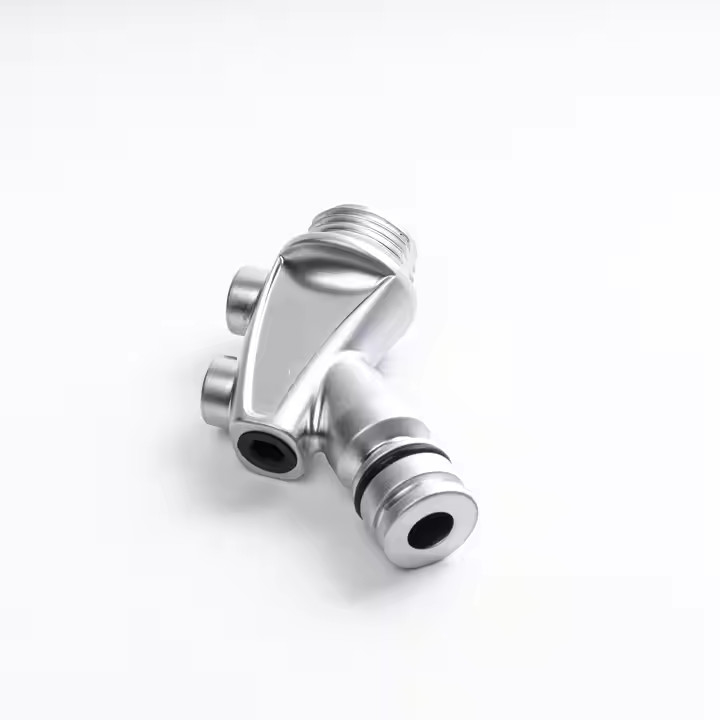

1006484 IG06 Powder Injector Body for Powder Coating.It more suitable for profiles or flat parts powder coating. The size and material can completely work with Gema GA03 and GM03 electrostatic powder coating guns.



Product Features
*Brand
Astar
*Name

Gema 1006484 IG06 Powder Injector Body for Powder Coating
*Model
IG06
*Material
PTFE
*Customized support
OEM, ODM, OBM
*Color
White and Black
*Application
IG06 Powder injector


*Place of Origin
Cangzhou, China


Flow Powder injector (type IG06)

Flow IG06 Powder injector - complete (pos. 1-13)
1007 780
A
Conveying air check valve unit (red marking) - complete (incl. pos. 6, 8, 9 and 12)
1005 589
B
Supplementary air check valve unit (black marking) - complete (incl. pos. 7, 8, 9 and 13)
1005 590
C
Injector body - complete (incl. pos. 1, 2, 10 and 11)
1006 530
1
Injector body (without pos. 2)
1006 484
2
O-ring - Ø 16x2 mm
1007 794#
3
Insert sleeve - PTFE, complete
1006 485#
4
Hose connection - Ø 10-12 mm, complete (incl. pos 4.1)
1006 531
4.1
O-ring - Ø 16x1.5 mm
205 141#
5
Threaded sleeve
1006 483
6
Connector (conveying air) - NW 5.5
1004 366
7
Connector (supplementary air) - NW 5.5
1004 367
8
O-ring-Ø11x1.5mm
1000 532#
9
Filterelement-Ø9/4x27mm
1003 698#
10
Nozzle
1006 488
11
Nozzlefixation-complete(incl.pos.11.1)
1007 792
11.1
O-ring - Ø 8x1 mm
1007 793#
12
Body (red)
1004 369
13
Body (black)
1004 370
16
Conveying air hose - Ø 8/6 mm (red)
103 500*
17
Supplementary air hose - Ø 8/6 mm (black)
103 756*
18
Quick release coupling for conveying air hose - NW5-Ø 8 mm
261 645
19
Quick release coupling for supplementary air hose - NW5-Ø 8 mm
261 637

Powder hose - 66 type, POE, Ø 16/11 mm, with conductive strip (standard)
105 139*#

Powder hose - 74 type, POE, Ø 15/10 mm, with conductive strip
1001 673*#

Powder hose - 75 type, POE, Ø 18/12 mm, with conductive strip
1001 674*#
