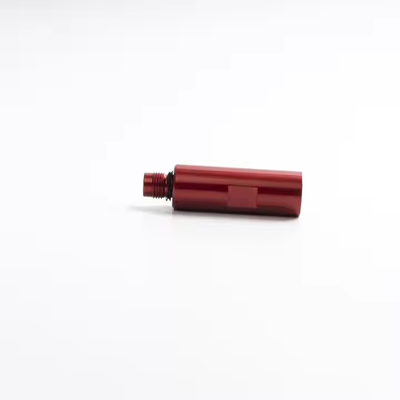

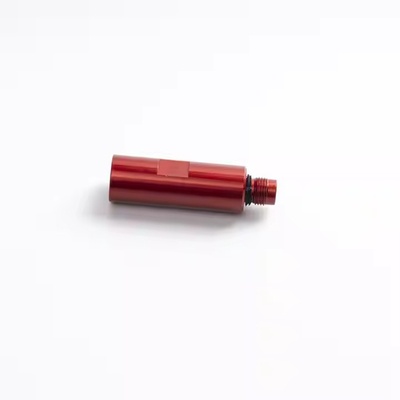

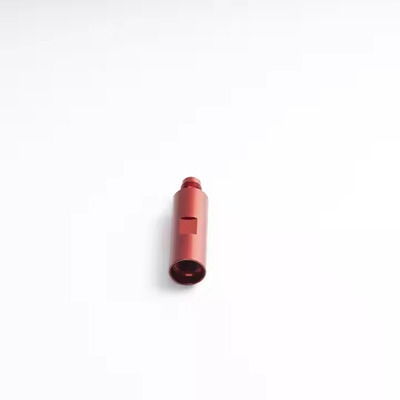

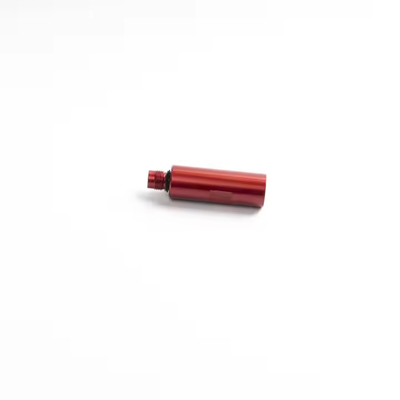

Gema IG06 Powder Injector Conveying Air Check Valve Unit Red Marking 1004369 1005589

Gema IG06 Powder Injector Conveying Air Check Valve Unit Red Marking 1004369 1005589
Gema IG06 Powder Injector Conveying Air Check Valve Unit Red Marking 1004369 1005589 Gema IG06 Powder Injector Conveying Air Check Valve Unit Red Marking 1004369 1005589 Gema IG06 Powder Injector Conveying Air Check Valve Unit Red Marking 1004369 1005589 Gema IG06 Powder Injector Conveying Air Check Valve Unit Red Marking 1004369 1005589

Large Image :  Gema IG06 Powder Injector Conveying Air Check Valve Unit Red Marking 1004369 1005589

Product Details:
Place of Origin: China
Brand Name: Astar
Certification: CE, ISO9001
Model Number: 1004369 1005589
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5 - 8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now

Gema IG06 Powder Injector Conveying Air Check Valve Unit Red Marking 1004369 1005589

Description
Name: Conveying Air Check Valve Unit Customized Support: ODM, OBM, OEM
Model Number: 1004369 Overall Length: Standard
Shape: Cylindrical Size: Standard
Application: IG06 Powder Injector
Highlight:

IG06 powder coating gun spare parts

,

IG06 powder coating machine spare parts

,

IG06 gema powder coating gun parts

IG06 Powder Injector Conveying air Check Valve Unit Red Marking 1004369 1005589



Product Description




Gema IG06 Powder Injector Conveying Air Check Valve Unit Red Marking 1004369 1005589 0Gema IG06 Powder Injector Conveying Air Check Valve Unit Red Marking 1004369 1005589 1

IG06 Powder Injector Conveying air Check Valve Unit Red Marking 1004369 1005589. It more suitable for profiles or flat parts powder coating. The size and material can completely work with Gema GA03 and GM03 electrostatic powder coating guns.



Product Features
*Brand
Astar
*Name

IG06 Powder Injector Conveying air Check Valve Unit Red Marking 1004369 1005589
*Size
Standard
*Material
Metal
*Customized support
OEM, ODM, OBM
*Color
Red
*Classify
Powder coating spare parts


*Warranty
none

Flow Powder injector (type IG06)

Flow IG06 Powder injector - complete (pos. 1-13)
1007 780
A
Conveying air check valve unit (red marking) - complete (incl. pos. 6, 8, 9 and 12)
1005 589
B
Supplementary air check valve unit (black marking) - complete (incl. pos. 7, 8, 9 and 13)
1005 590
C
Injector body - complete (incl. pos. 1, 2, 10 and 11)
1006 530
1
Injector body (without pos. 2)
1006 484
2
O-ring - Ø 16x2 mm
1007 794#
3
Insert sleeve - PTFE, complete
1006 485#
4
Hose connection - Ø 10-12 mm, complete (incl. pos 4.1)
1006 531
4.1
O-ring - Ø 16x1.5 mm
205 141#
5
Threaded sleeve
1006 483
6
Connector (conveying air) - NW 5.5
1004 366
7
Connector (supplementary air) - NW 5.5
1004 367
8
O-ring-Ø11x1.5mm
1000 532#
9
Filterelement-Ø9/4x27mm
1003 698#
10
Nozzle
1006 488
11
Nozzlefixation-complete(incl.pos.11.1)
1007 792
11.1
O-ring - Ø 8x1 mm
1007 793#
12
Body (red)
1004 369
13
Body (black)
1004 370
16
Conveying air hose - Ø 8/6 mm (red)
103 500*
17
Supplementary air hose - Ø 8/6 mm (black)
103 756*
18
Quick release coupling for conveying air hose - NW5-Ø 8 mm
261 645
19
Quick release coupling for supplementary air hose - NW5-Ø 8 mm
261 637

Powder hose - 66 type, POE, Ø 16/11 mm, with conductive strip (standard)
105 139*#

Powder hose - 74 type, POE, Ø 15/10 mm, with conductive strip
1001 673*#

Powder hose - 75 type, POE, Ø 18/12 mm, with conductive strip
1001 674*#




Gema IG06 Powder Injector Conveying Air Check Valve Unit Red Marking 1004369 1005589 2



Gema IG06 Powder Injector Conveying Air Check Valve Unit Red Marking 1004369 1005589 3
