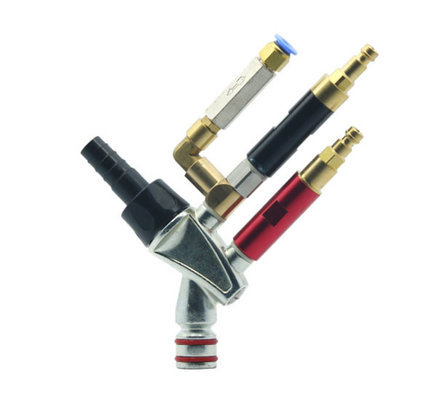

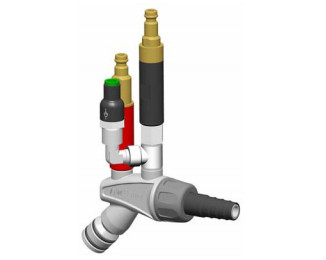

1007779 IG06 - P OptiCenter Powder Injector OptiFlow type IG06 - P For Gema
Introduction
The OptiFlow injector is used for conveying normal organic powders between the powder management center and the powder gun. The
injector is supplied with a PTFE insert sleeve as standard.
The OptiFlow Injector is a plug-in type and permits easy handling and quick cleaning. All connections are plug-in types and not interchangeable. The injector can be disassembled without special tools. The injector is equipped with an additional connection for the powder hose rinsing
Application
Powder Coating
Quick Details
| Name |
OptiFlow IG06 - P Powder Injector |
Model |
OptiCenter |
| Part number |
1007779 |
Function |
Convey normal organic powders |
| In pressure |
5.0 bar |
Conveying air nozzle |
1.6mm |
| Supplementary air nozzle |
1.4mm |
Powder hose |
11mm |
| Model |
Gema OptiFlow IG06 - P |
Delivery time |
3 days |
Advantages and selling points
1. Original compatible
2. Spare parts available
3. Good material to raise working life
4. Standard size, original compatibility, universal substitution.
Package
Paper box package
Company introduction
Astar Machinery Co., Ltd. is a comprehensive service in production, R&D; and sales, operates mainly in electrostatic spraying equipment, including electrostatic dust elimination equipment; electrostatic flocking machine, electrostatic powder spraying machine, electrostatic liquid spray machine, electrostatic spraying gun, high voltage module, circuit board, powder barrel, powder tube, Hv cable, reciprocator, spraying room, control cabinet, oven, oven, vibration sieve, the wind leaching room, supply Gema, KCI, Wagner accessories, professional wholesale gun shell, venturi tube, powder pump, deflector, nozzle, electrode holder and other products.
