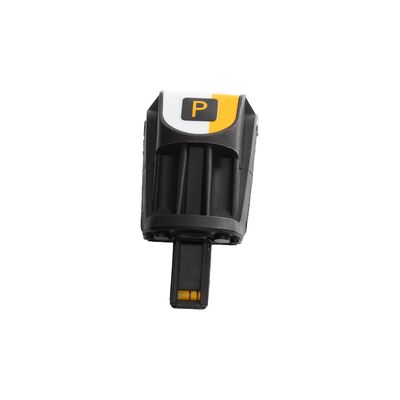

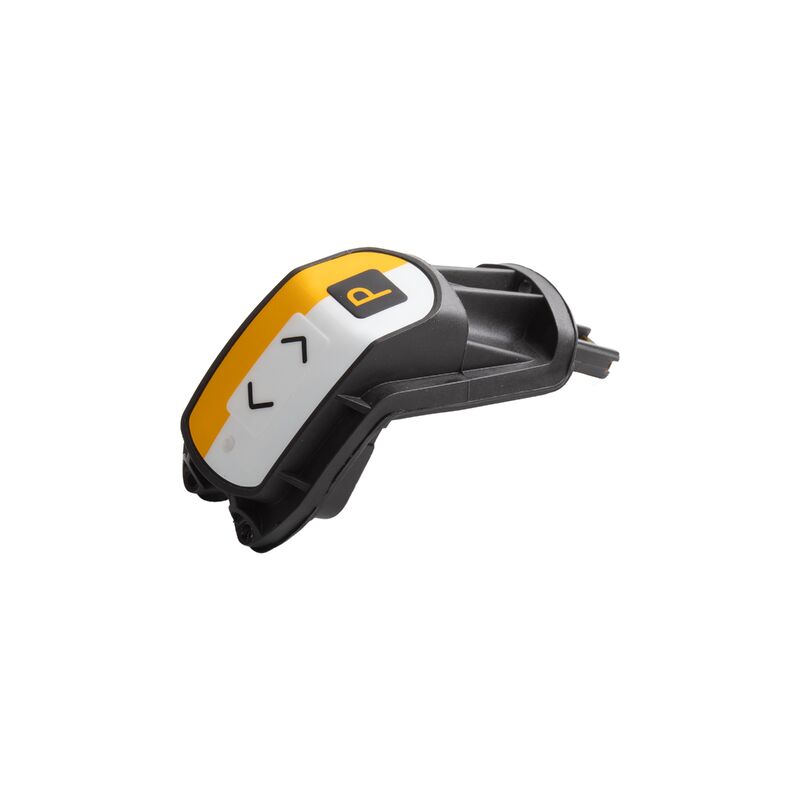

Gema Optiselect Pro Gm04 Powder Coating Gun Spares Cascade Print Holder

Gema Optiselect Pro Gm04 Powder Coating Gun Spares Cascade Print Holder
Gema Optiselect Pro Gm04 Powder Coating Gun Spares Cascade Print Holder
Gema Optiselect Pro Gm04 Powder Coating Gun Spares Cascade Print Holder Gema Optiselect Pro Gm04 Powder Coating Gun Spares Cascade Print Holder Gema Optiselect Pro Gm04 Powder Coating Gun Spares Cascade Print Holder Gema Optiselect Pro Gm04 Powder Coating Gun Spares Cascade Print Holder Gema Optiselect Pro Gm04 Powder Coating Gun Spares Cascade Print Holder

Large Image :  Gema Optiselect Pro Gm04 Powder Coating Gun Spares Cascade Print Holder

Product Details:
Place of Origin: China
Brand Name: Gema
Certification: ISO9001 , CE
Model Number: GM04
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union, L/C, D/A, D/P, MoneyGram, PayPal
Supply Ability: 100 sets/month

Gema Optiselect Pro Gm04 Powder Coating Gun Spares Cascade Print Holder

Description
Name: GM04 Spare Parts Part Number: 1016971

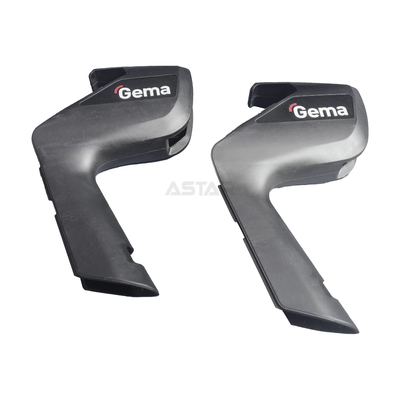

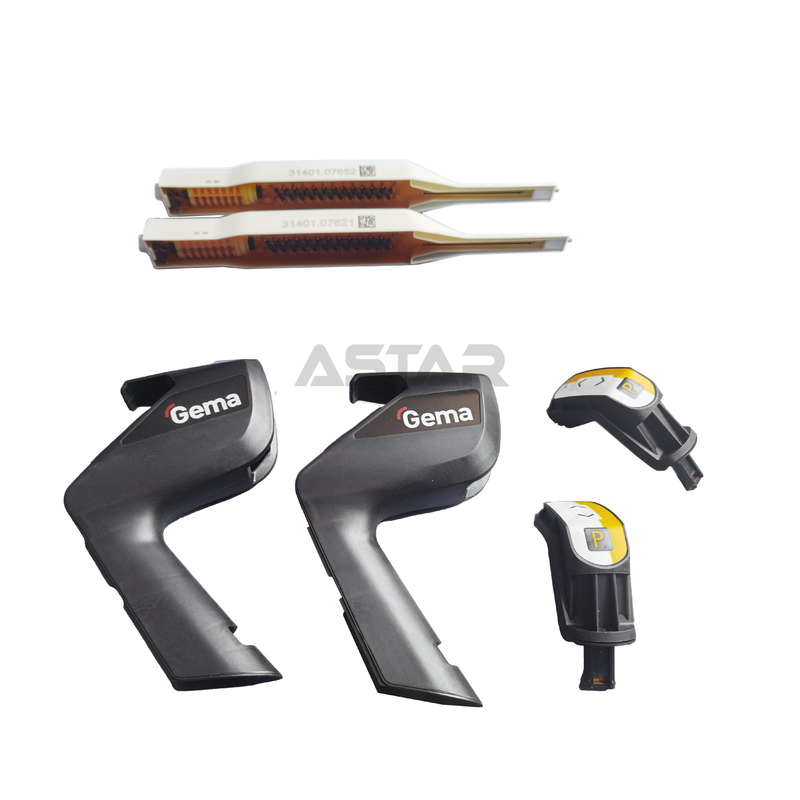

Spare Parts: Gun Shell, Rear Part, Print Holder, Cascade Advantage: A Class Quality And Original Compatible
Material: Plastic Application: Gema OptiSelect Pro GM04 Gun
Usage: To Repair The GM02 Gun Color: Black, Or Same As Original
Stock: 1000 Pieces A Month
Highlight:

gm04 powder coating gun spares

,

cascade powder coating gun spares

,

gema pro powder coating spare parts

Gema OptiSelect Pro GM04 gun Spare Part rear part gm04 cascade print holder


Introduction

We supply all kinds of spare parts for Pro GM04 gun, such as gun shell, cascade, sleeve, nozzle, electrode, cable etc.

The spare parts that in stock are as following:

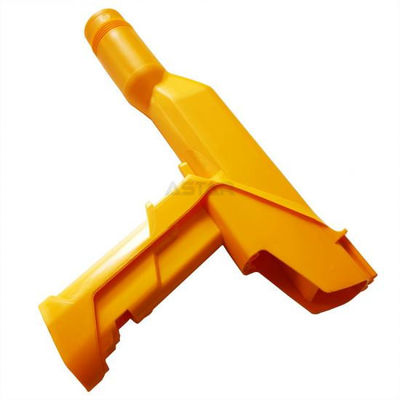

1 Gun body – complete   1017 680
2 Cascade – complete, negative polarity, incl. pos. 3 1016 911
   Cascade – complete, positive polarity, incl. pos. 3  1016 912
3 Buffer  1017 704

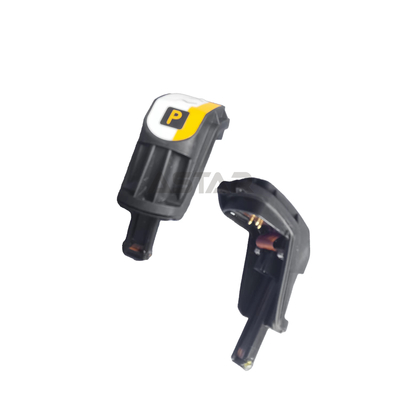

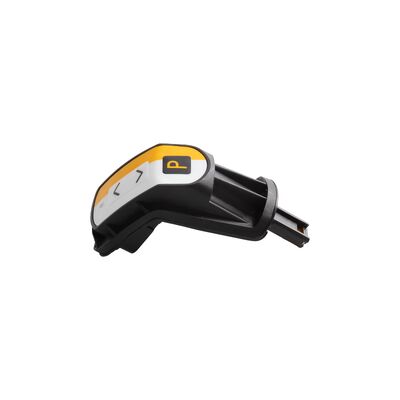

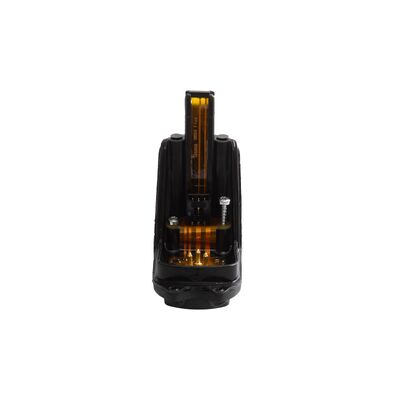

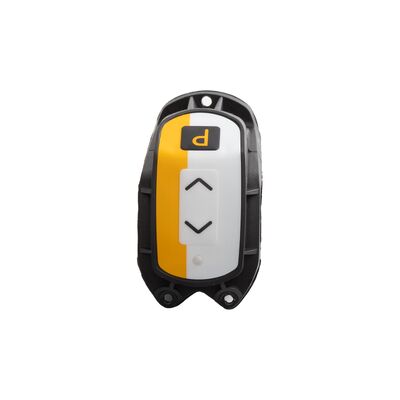

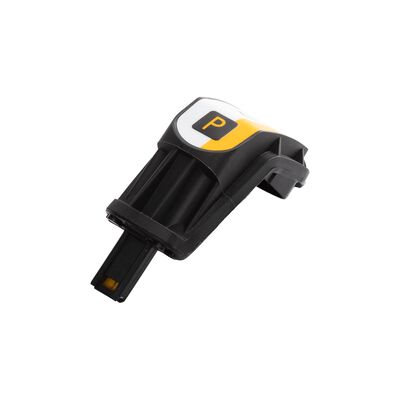

4 Print holder – complete  1017 690
5 Rear part  1017 683
6 Trigger – complete  1017 686
7 Trigger cover  1017 688
8 Countersunk-head screw – M4x6 mm  1017 698
9 SuperCorona connection  1017 684
10 Gun cable 6 m – complete    1016 952
     Gun cable 12 m – complete  1016 953
11 Rinsing air connection  1017 656
11.1 Rinsing air hose  100 854*
12 Powder tube – complete  1007 958 #
13 Compression spring  1001 488
14 Clip ring  1007 960
15 Hose connection Ø 11-12 mm – complete (incl. pos 15.1)  1001 340 #
     Hose connection Ø 9-10 mm – complete (incl. pos 15.1)    1002 030 #
15.1 O-ring for pos. 15  1000 822 #
16  Threaded sleeve (see corresponding spare parts list)
17  Nozzle (see corresponding spare parts list)
18 Cable lock  1017 685
19 Screw – M3x20 mm  1017 674
20 Contact strip  1018 707
21 Fitting bush  1018 708




Quick Details



Name

GM04 spare partsPart number1016971

Quality

Same as originalFeatureOriginal compatible
Spare partsgun shell, rear part, print holder, cascadeAdvantageA class quality and original compatible
ApplicationGema OptiSelect Pro GM04 gunOutlookSame as original
FunctionTo repair the GM02 gunGroupGM04 Spare Parts



Advantages and selling points



1. A class top quality in material and production
2. Durable and long working life
3. Standard dimension
4. Enough stock
5. Fast delivery



Package



Cartoon package



Company introduction



Astar Machinery Co., Ltd. is a comprehensive service in production, R&D; and sales, operates mainly in electrostatic spraying equipment, including electrostatic dust elimination equipment; electrostatic flocking machine, electrostatic powder spraying machine, electrostatic liquid spray machine, electrostatic spraying gun, high voltage module, circuit board, powder barrel, powder tube, Hv cable, reciprocator, spraying room, control cabinet, oven, oven, vibration sieve, the wind leaching room, supply Gema, KCI, Wagner accessories, professional wholesale gun shell, venturi tube, powder pump, deflector, nozzle, electrode holder and other products.
