Gm02 Manual Powder Coating Gun Shaft Original Compatible 1001155 Replacement
Product Details
optiselect gm02 powder coating gun shaft
,manual powder coating gun shaft

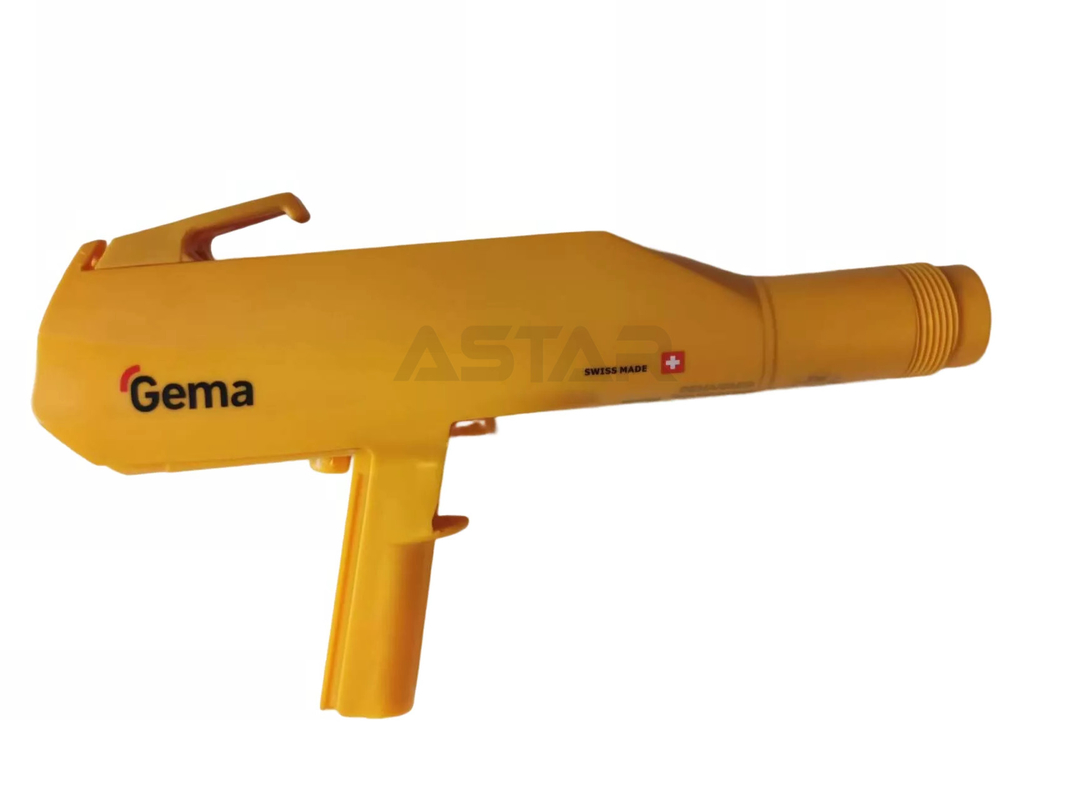

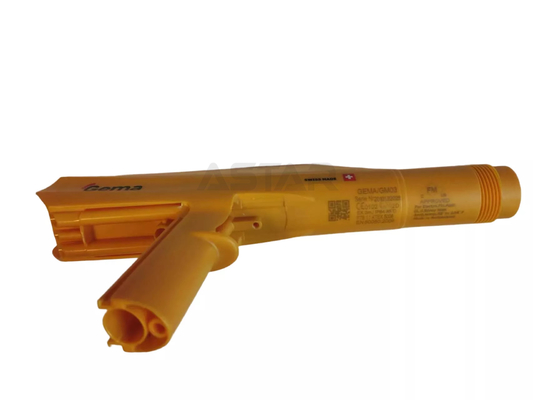

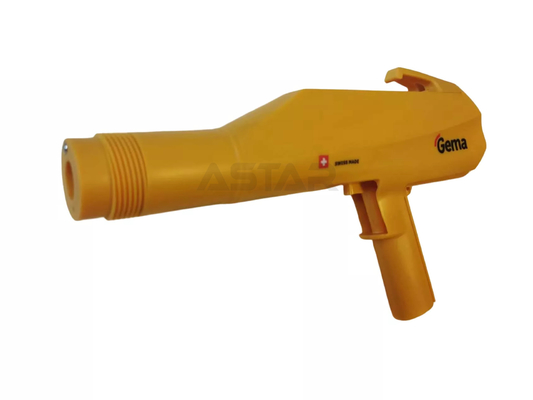

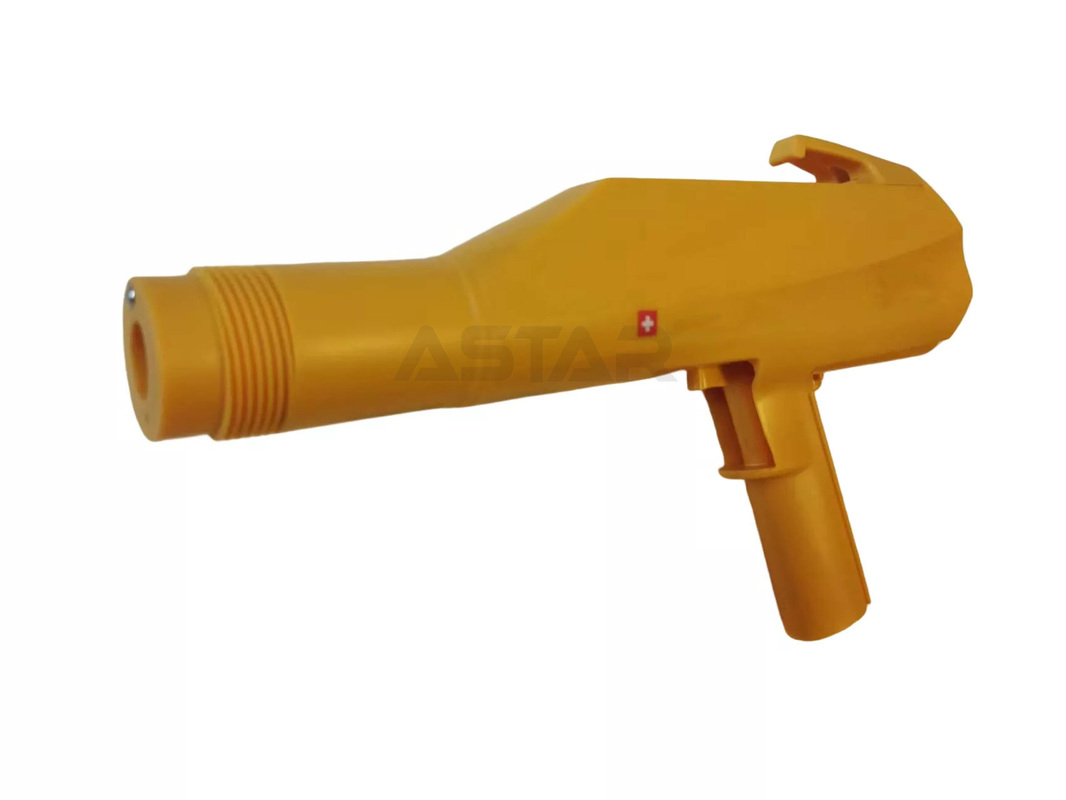

Original Compatible 1001155 GM02 Manual Powder Coating Gun Shaft
The gun shell size perfectly matches the original specifications, making it ideal for maintenance and replacement of the original gun. Constructed from high-quality antistatic material, this component resists high-voltage breakdown and provides excellent protection for the high-voltage module. Additional accessories are available for purchase.
| Product Name | Code | Part Number |
|---|---|---|
| Complete spray gun GM02 (6M cable) | 1002100 | |
| Shaft including Cascade | 1001891 | |
| Cascade | 1000809 | |
| Gun shaft (including 5+6+7+8) | 1 | 1001155 |
| Trigger complete (including 3) | 2 | 1001341 |
| Spring 0,36 x 4,2 x 49,4 mm | 3 | 1001487 |
| Trigger cover | 4 | 1000801 |
| Handle | 5 | 1000806 |
| Radial sealing | 6 | 1000803 |
| Gun cable L=6M | 7 | 1001528 |
| Screw M3*8mm | 8 | 1000844 |
| Inner powder tube | 10 | 1001339 |
| O-Ring Ø 12 x 1,5 mm | 10.2 | D1000822 |
| Air connector | 11 | 1000804 |
| Clip ring | 12 | 1007960 |
| Spring | 13 | 1001488 |
| Complete back cover | 14 | 1000617 |
| Connector 11-12mm (complete including 15.1) | 15 | 1001340 |
| Connector 9-10mm (complete including 15.1) | 15 | 1002030 |
| O-ring | 15.2 | D1000822 |
| Hooker | 16 | 1000877 |
| Lower head, M4*8mm, Plastic | 17 | 263516 |
| PT-Screw | 18 | 1000843 |
| Gun sleeve | 19 | 1000948 |
| Flat Nozzle NF08 cpl. | 20 | 1000047 |
| Flat electrode holder | 20.1 | 1000055 |
| Flat nozzle NF08 | 20.2 | 1000049 |
| Super corona complete set L=215mm | 1002066 |
Compatible with Gema GM02 Manual Powder Coating Gun.
- Original 100% interchangeable
- Precision size matches the gun perfectly
- A class quality
- Long working life
- Fast delivery
Paper box package
Astar Machinery Co., Ltd. specializes in production, R&D, and sales of electrostatic spraying equipment, including electrostatic dust elimination equipment, electrostatic flocking machines, electrostatic powder spraying machines, electrostatic liquid spray machines, electrostatic spraying guns, high voltage modules, circuit boards, powder barrels, powder tubes, HV cables, reciprocators, spraying rooms, control cabinets, ovens, vibration sieves, and wind leaching rooms. We supply Gema, KCI, and accessories, and professionally wholesale gun shells, venturi tubes, powder pumps, deflectors, nozzles, electrode holders, and related products.
-
