PH150D-24-D Round Recycle Powder Coating Hopper
Basic Properties
Place of Origin:
China
Brand Name:
Astar
Certification:
CE ; ISO 9001
Model Number:
PH150D-24-D
Trading Properties
Minimum Order Quantity:
1 Set
Price:
Negotiable
Payment Terms:
T/T,L/C,D/A,D/P,Western Union,PayPal,MoneyGram
Supply Ability:
1000 Sets Per Month
Product Summary
PH150D-24-D Round Recycle Powder Coating Hopper PH150D-24-D 370967 Stainless Steel Round Recycle Powder Coat Hopper The powder hopper has a large capacity, which can meet the needs of large-scale electrostatic spraying production. It can be used with up to 24 powder injectors simultaneously. ...
Product Details
Highlight:
PH150D-24-D Powder Coating Hopper
,GEMA PH150D-24-D Powder Coating Hopper
,Round fluidizing hopper PH150D-24-D
Material:
Stainless Steel
Model:
PH150D-24-D
Size:
0.33m³
Weight:
27KG
Process:
Seamless Welding
Capacity:
High-capacity
Application:
Powder Coating
Condition:
New
Place Of Origin:
China, Hebei
Shape:
Barrel Shape
Product Description

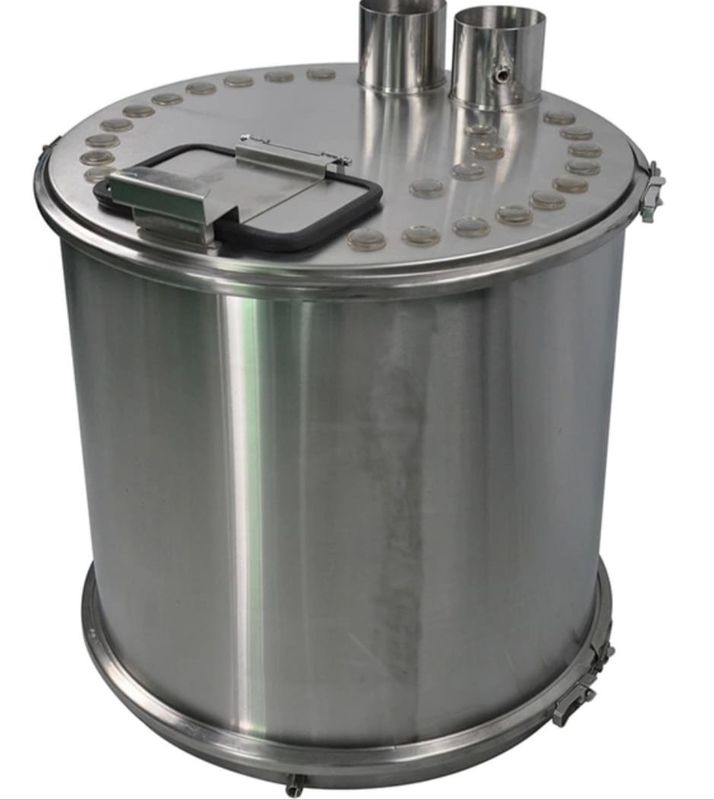

PH150D-24-D Round Recycle Powder Coating Hopper
PH150D-24-D 370967 Stainless Steel Round Recycle Powder Coat Hopper
The powder hopper has a large capacity, which can meet the needs of large-scale electrostatic spraying production. It can be used with up to 24 powder injectors simultaneously. Features include high powder output and strong sealing to maintain powder containment and a clean working environment. Equipped with a high-density fluidizing board to ensure uniform powder fluidization and prevent caking.
Basic Principle
The fluidized bed uses a specially sintered high polymer material air permeable plate to ensure uniform fluidization and continuous powder supply. Powder is stored in the barrel, fluidized, and evenly transported to the spray gun for consistent, uninterrupted powder supply. This system conserves powder while preventing moisture absorption and caking, ensuring effective spraying performance.
Quick Details
| Material | Stainless steel | Application | Powder Coating |
|---|---|---|---|
| Size | 0.33 m³ | Feature | Large storage capacity |
| Shape | Barrel shape | Weight | 27KG |
| Component | Fluidization barrel, gas chamber, microorifice plate, Venturi nozzle, powder pipe | Condition | New |
| Process | Seamless welding | Place of origin | China, Hebei |
Process Parameters
Powder supply pressure: 0.45MPa
Fluidization pressure: 0.01-0.03MPa
Spray pressure: 0.02-0.06MPa
Injection pressure: 0.01-0.15MPa
Powder supply hopper capacity: 40kg
Powder supply: 4~8kg/h
Package
Cartoon package
Company Introduction
Astar Machinery Co., Ltd. is a comprehensive service provider in production, R&D, and sales, specializing in electrostatic spraying equipment. Our product range includes electrostatic dust elimination equipment, electrostatic flocking machines, powder and liquid spray machines, spraying guns, high voltage modules, and related accessories. We also supply components for and KCI systems, including gun shells, venturi tubes, powder pumps, deflectors, nozzles, and electrode holders.
